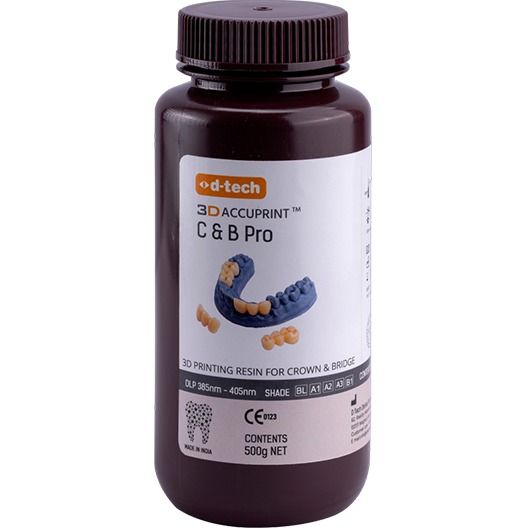

D-Tech 3D Accuprint Crown & Bridge Pro 3D Printing Resin

D-Tech 3D Accuprint Crown & Bridge Pro 3D Printing Resin

D-Tech 3D Accuprint Crown & Bridge Pro 3D Printing Resin is a specialized dental material crafted for the precise fabrication of dental prosthetic components. This includes single crowns, crown and bridge structures, inlays, onlays, and veneers. Comprising methacrylate monomers, oligomers, inert fillers, photoinitiators, and pigments, this biocompatible resin ensures a harmonious blend of durability and aesthetic appeal. Tailored for dental applications, it delivers exceptional strength, wear resistance, and a pleasing finish after polishing. It meets the design limits for artificial teeth production, encompassing minimum wall thickness requirements and connector area specifications. It is imperative to strictly adhere to indicated uses, as it should not be employed for any other purpose. Exercise caution when handling the resin, employing protective clothing, goggles, and gloves. Proper storage and handling procedures are crucial, and strict adherence to instructions ensures the safety and effectiveness of this dental 3D printing material, guaranteeing the production of high-quality dental prosthetics.

Features :

• Exceptional strength and wear resistance.
• High aesthetic quality post-polishing for natural-looking results.
• Biocompatible formulation suitable for long-term dental prosthetics.

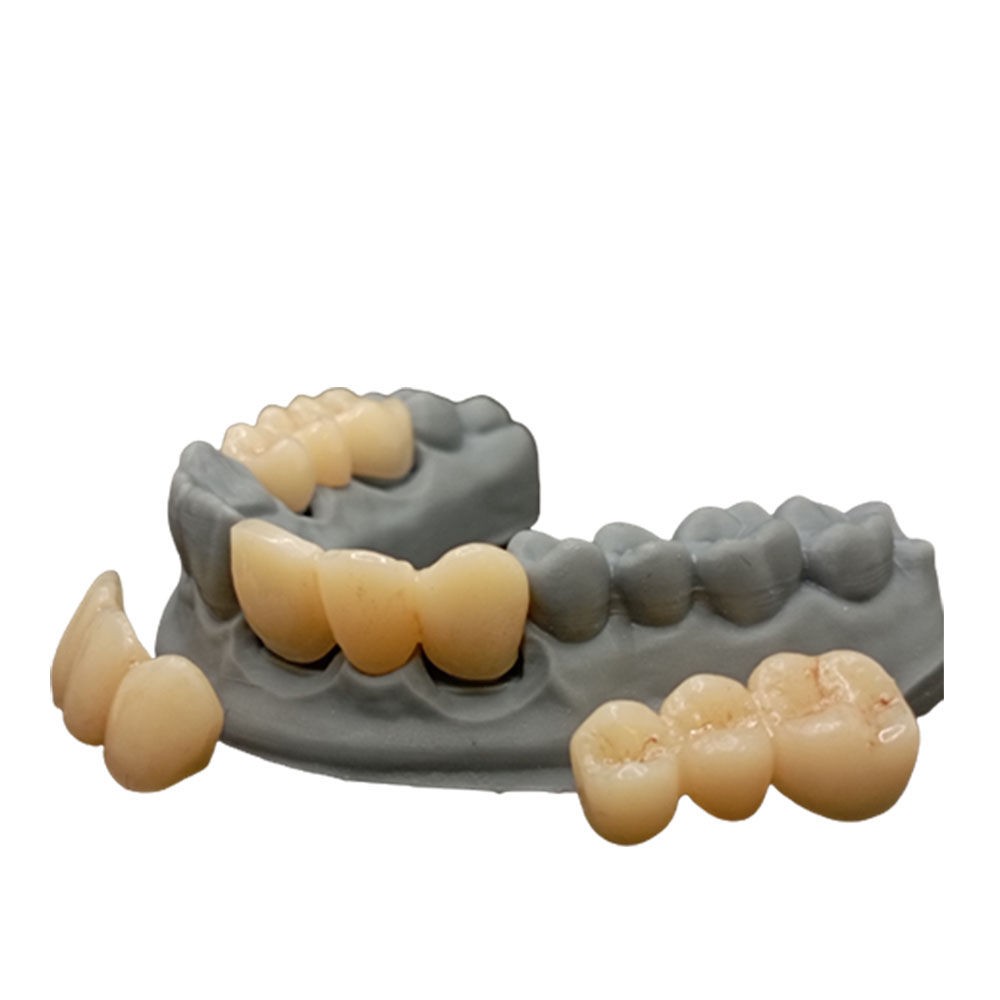

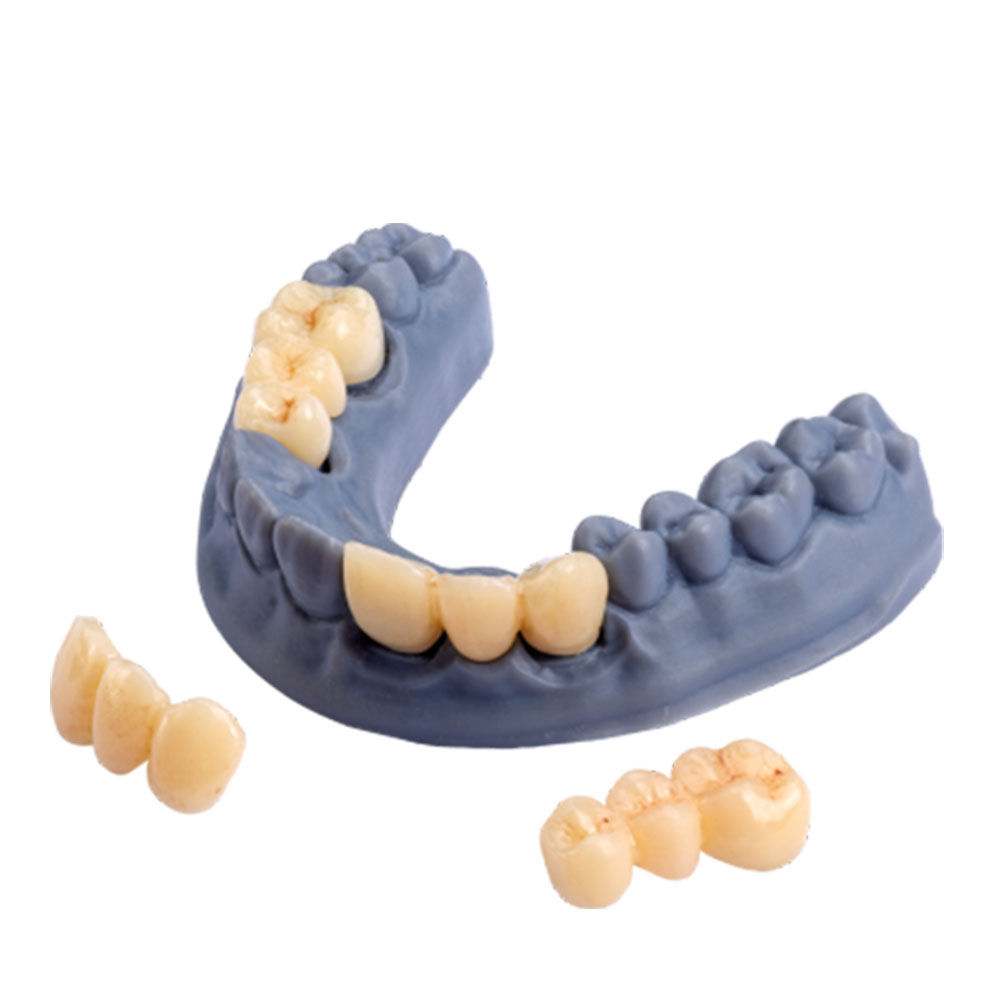

• Designed for 3D printing of single crowns, crowns and bridges, inlays, onlays, and veneers.
• Can be used for artificial teeth production within specified design limitations.
• Precise wall thickness requirements for different components.
• Contraindications emphasized for safe usage.
• Sensitivity risk, with recommended sensitivity tests.
• Specific temperature range for optimal performance.
• Post-curing process for material properties and biocompatibility.

Storage & Handling:

• Product can be stored at room temperature close the cap after each use to avoid the material curing from ambient light.

Shade Available.

• A1, A2, A3, B1, and Bleach.

Packaging :

• 1 x 500g Bottle

Direction To Use :

Preparation:

• Agitate or shake the resin bottle vigorously for at least one minute before pouring.
• When using a material tray, stir the material with a soft spatula, taking care not to damage the tray's film.
• The ideal working temperature for the resin is between 15°C and 30°C.

Design of the C&B Files:

• After obtaining intraoral scans from the patient, the crown or bridge is designed and provided in STL file format by a dental designservice or lab.
• Ensure that the working temperature remains between 15°C and 30°C.

Printing Process:

• Wear protective gear including nitrile gloves, protective clothing, goggles, and/or face protection during processing.
• Shake the material thoroughly for at least 3 minutes before pouring into the clean tray of the 3D printer.
• Avoid exposing the printing resin to daylight during decanting.
• Apply the recommended D Tech Accuprint C&B settings specific to your 3D printer.
• Check for air bubbles between the build platform and the tray before each print to ensure a successful outcome.
• Use caution to avoid damaging the FEP film when handling the resin.

Washing of 3D C&B:

• After printing, detach the print objects from the build platform using the supplied spatula.
• Clean the print object in two steps with isopropyl alcohol (IPA) using a cleaning bath:
  • 1st Wash: Clean for 1 minute and 30 seconds in an IPA solution.
  • 2nd Wash: Thoroughly clean for 1 minute and 30 seconds using fresh IPA.

Finishing and Post-Curing:

• Remove support structures, if present, with a fine diamond bur.
• Ensure that the printed object is not deformed.
• Post-cure the cleaned print objects to achieve the required material properties and biocompatibility, following the recommended curing profiles.
  • Example curing profiles: Asiga Flash Cure (low power) for 30 minutes or Ackuretta
  • Curie (High power flashing system) for 10 minutes.
• Remove any support marks and polish with cotton and leather polishing wheels for 1 minute each.
• For a better look and polish, consider using D Tech Pro-Glaze liquid and follow the provided instructions.
