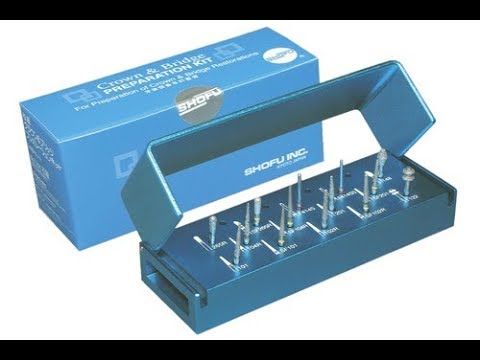

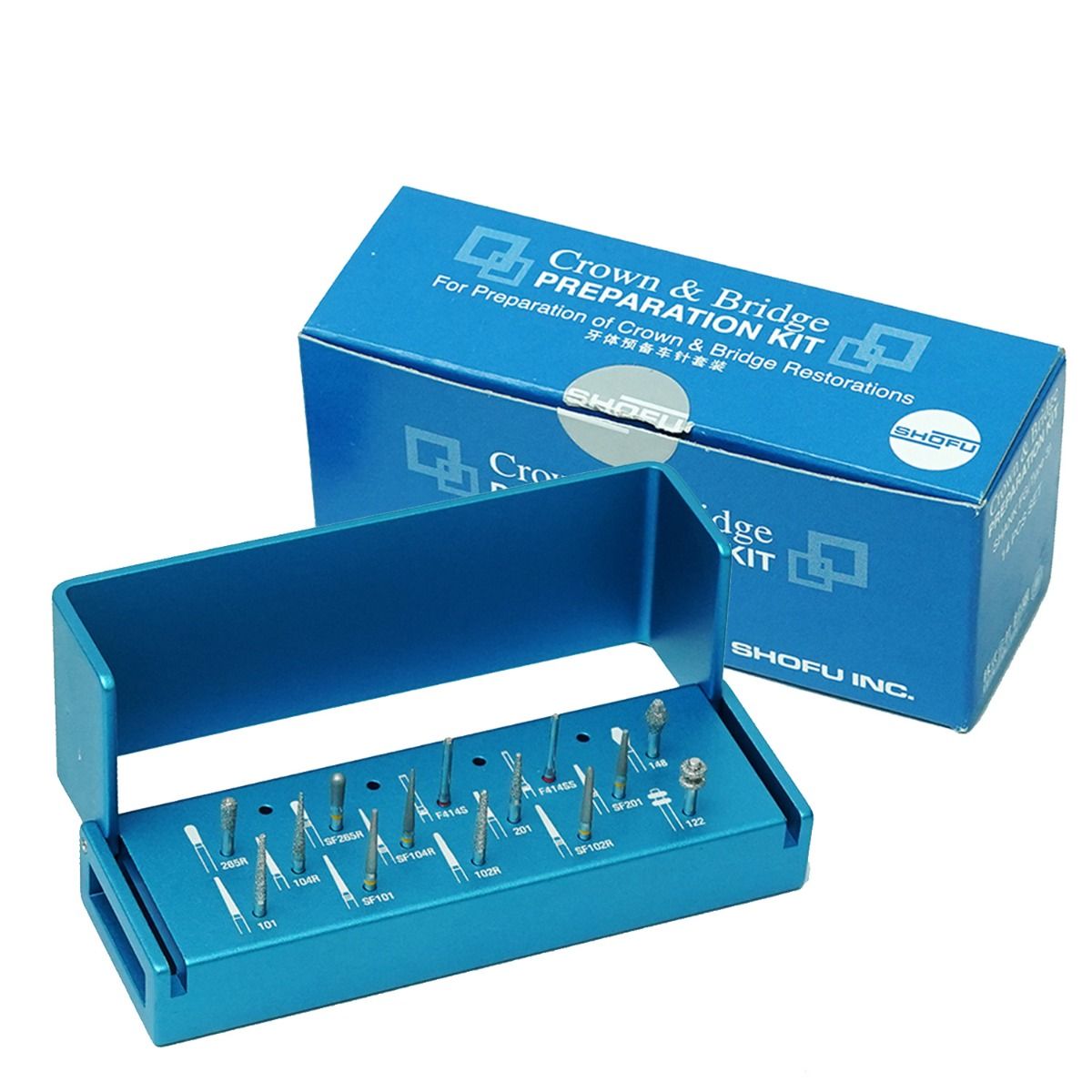

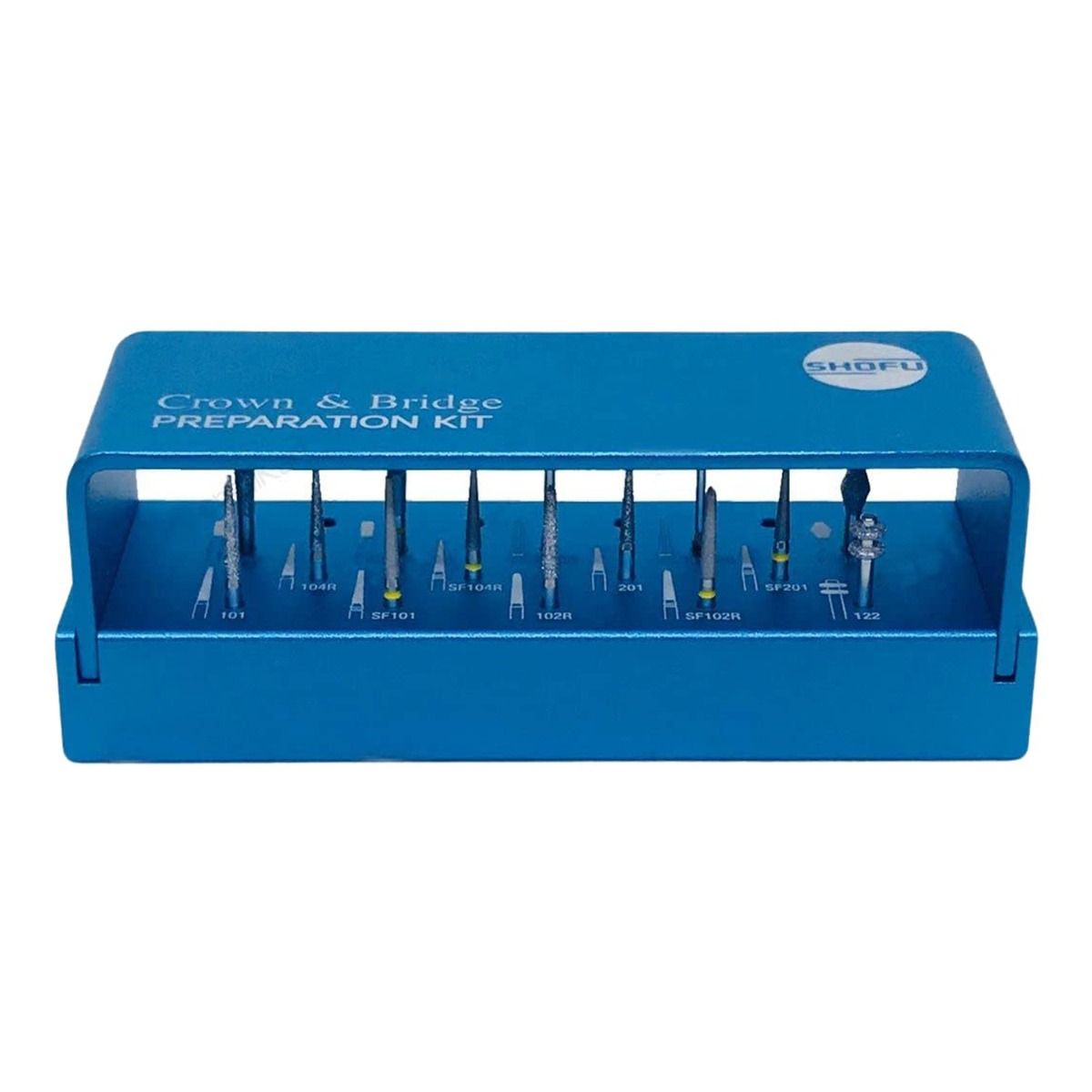

Shofu Crown & Bridge Preparation Burs Kit

Shofu Crown & Bridge Preparation Burs Kit

Introducing the Crown & Bridge Preparation Kit, a meticulously designed set that ensures swift, straightforward, and accurate tooth preparation for a diverse range of crown and bridge restorations, veneers, and onlays.

Key Features:

1. Depth-Cutting Diamond Points:

• Specially designed for precise depth orientation grooves.
• Facilitates easy achievement of accurate tooth preparation.

Tissue-Protective End-Cutting Burs:

• Two specialized burs designed for shoulder preparation and finishing under gingival margins without causing harm to the soft tissue.
• Ensures a gentle and tissue-friendly preparation process.

Hygienic Organization:

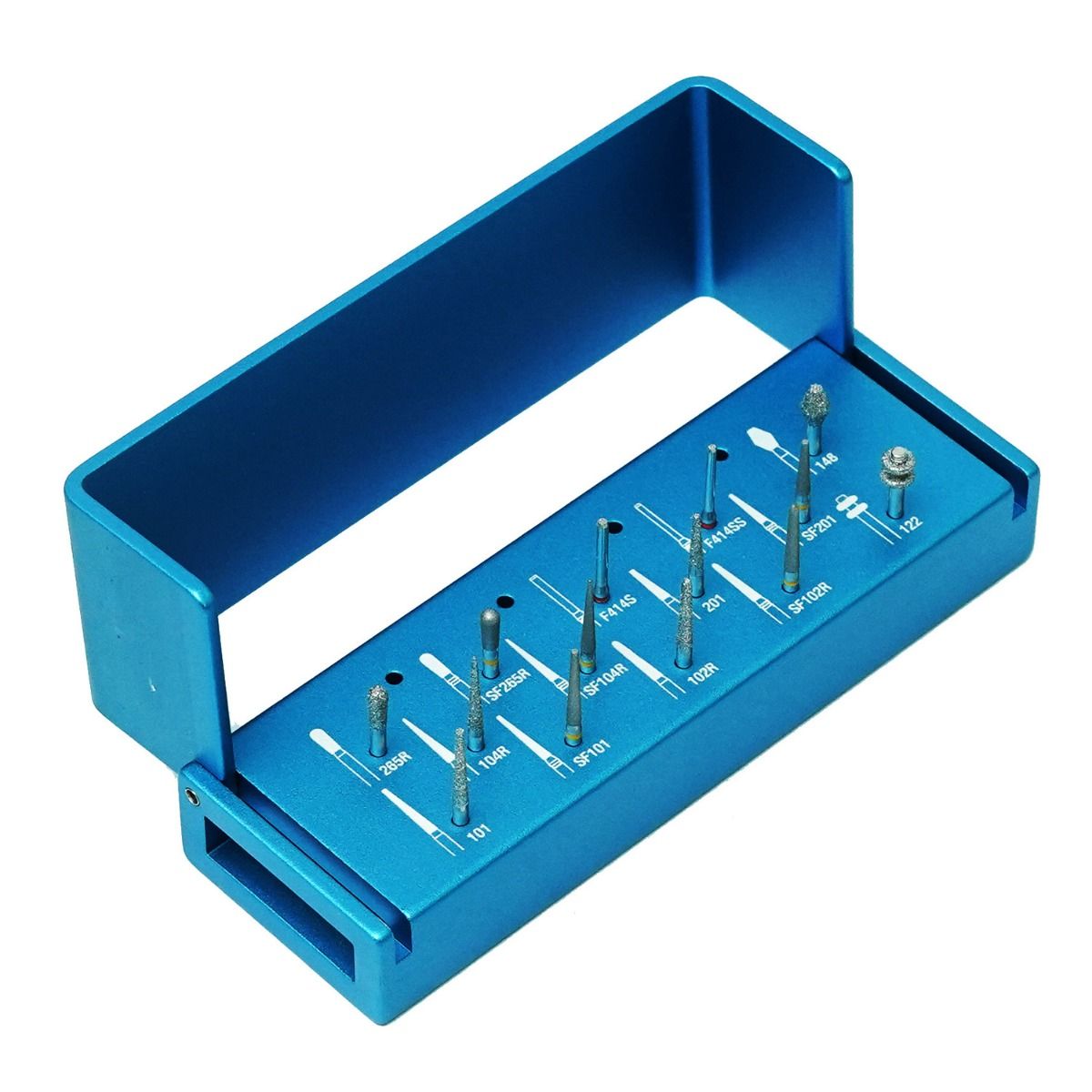

• Points are neatly organized in an autoclavable aluminum bur block.
• Allows for convenient sterilization and easy replacement.

Diamond Points:

Tapered Flat Ended Diamond Points:

• Ideal for crown & bridge and metal inlay preparation.

Tapered Round Ended Diamond Points:

• Designed for crown & bridge preparation with a heavy chamfer.

Tapered Ellipse:

• Suited for crown & bridge preparation with a light chamfer, featuring superfine grit for finishing restorative materials.

Tissue Protective End-Cutting:

• 1.0mm depth, tailored for anterior tooth, all-ceramic crown preparation.

Other Shapes:

• Round Inverted Cone:
• For buccal, palatal, and lingual reduction during crown & bridge preparation.
• Double Cone:
• Specifically designed for occlusal reduction during crown & bridge preparation.

Features :

• Precise depth orientation grooves can be achieved easily with the specially designed depth cutting diamond points.
• 2 special "Tissue-Protective End-Cutting Burs" for shoulder preparation and finishing under gingival margins without injuring the soft tissue.
• These points are hygienically organized in an aluminium bur block (autoclavable) for convenient sterilization and easy replacement.
• 14 kinds of specially selected FG Diamond Points in 3 different grits.
  - Regular (No marking on shank)
  - Fine (Red band on shank)
  - SuperFine (Yellow band on shank)

Specifications :

TAPERED FLAT ENDED DIAMOND POINTS

• Regular Grit - #201,#101
• SuperFine Grit - #SF210, SF101

TAPERED ROUND ENDED DIAMOND POINTS

• Regular Grit    - #102R
• SuperFine Grit   - #SF102R

 TAPERED ELLIPSE

• Regular Grit    - #104R
• SuperFine Grit - #SF104R

 TISSUE PROTECTIVE END-CUTTING

• Fine Grit- #F414SS,F414S

 ROUND INVERTED CONE

• Regular Grit - #265R,#SF265R

 DOUBLE CONE

• Regular Grit - #148

 DEPTH CUTTING DIAMOND POINTS

• Regular Grit - #122

Packaging :

• 1 x Kit of 14 burs (Diamond Points FG in 3 different grits - Regular, Fine , Superfine)
• Regular grit: 201, 101, 102R, 104R, 265R, 148 , 122
• Fine grit: F102R, F414SS, F414S
• Superfine grit: SF201, SF101, SF104R, SF265R

Direction To Use :

• Use the depth cutting diamond points to create precise depth orientation grooves.
• Use the tapered flat-ended diamond points for reduction of buccal surface for PFM crowns and on buccal and lingual surfaces of all ceramic crowns.
• Use the tapered round-ended diamond points for crown & bridge preparation with a heavy chamfer.
• Use the tapered ellipse diamond points for crown & bridge preparation with a light chamfer and for finishing restorative materials.
• Use the round inverted cone diamond points for palatal/lingual reduction.
• Use the double cone diamond points for occlusal reduction during crown & bridge preparation.
• Use the Tissue-Protective End-Cutting Burs for shoulder preparation and finishing under the gingival margins without injuring the soft tissue. Take care to avoid applying too much pressure and causing tissue trauma.
