SuperEndo Sonic Flush Endo Irrigator (60 Tips Free)

SuperEndo Sonic Flush Endo Irrigator:

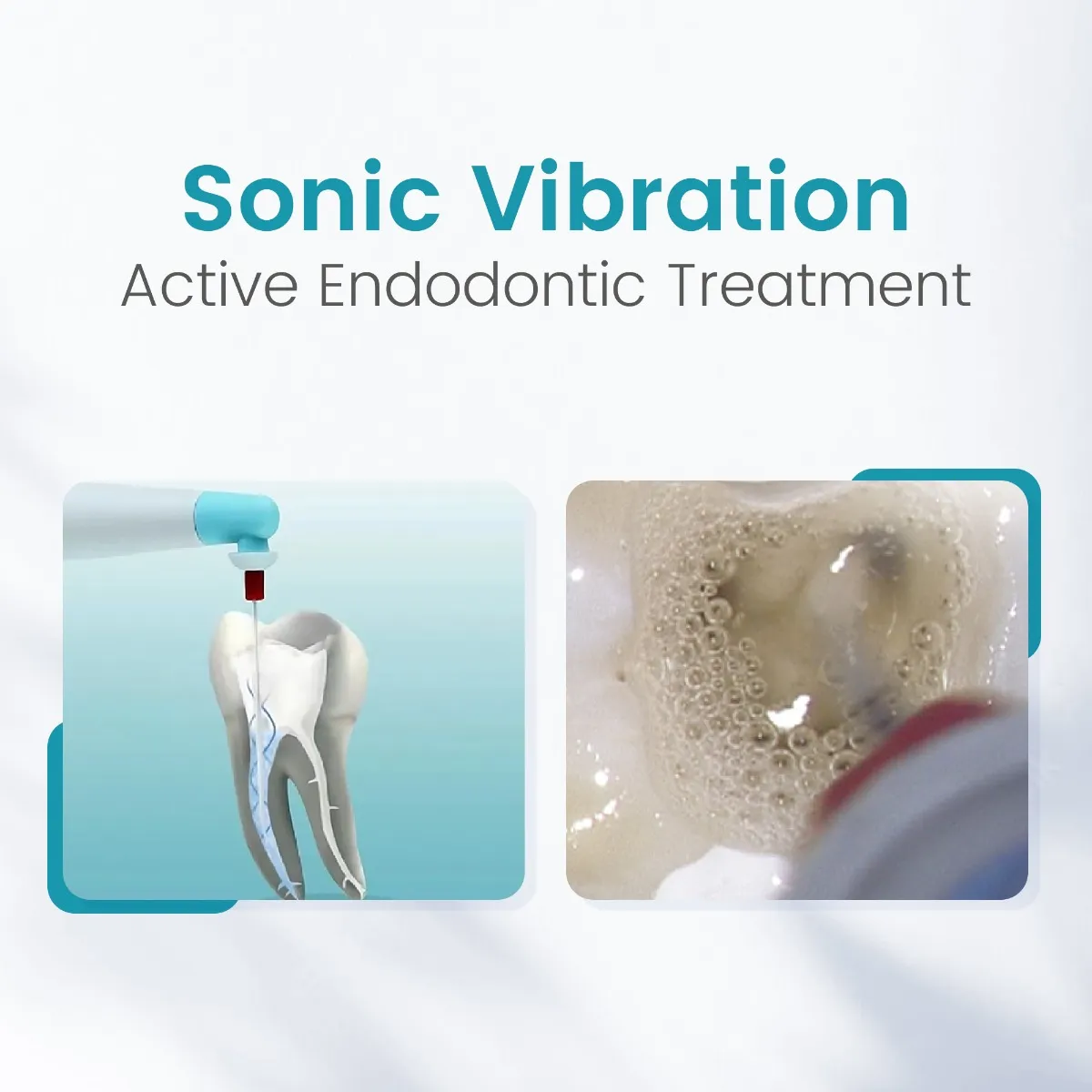

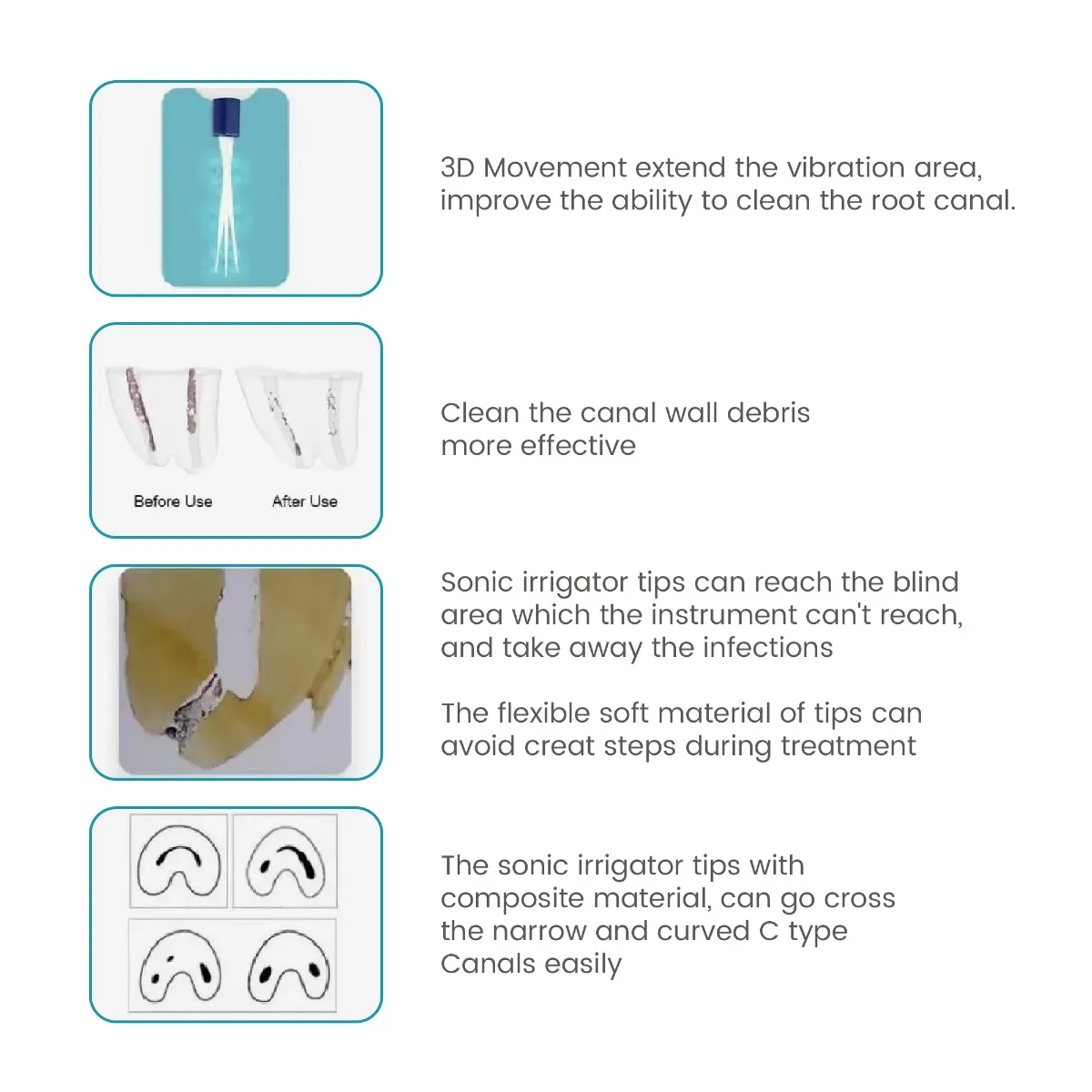

The Sonic Irrigator System is used in endodontic treatment by application of sonic energy. The Irrigator tips are used in conjunction with the Handpiece/Driver to provide the energy for tip oscillation and vibration. Evidence-based endodontics has shown that cavitation and acoustic streaming improves debridement and the disruption of the smear layer and biofilm. Activated fluids promote deep cleaning and disinfection into lateral canals,fins,webs,and anastomoses. A cleaned root canal system facilitates 3-D obturation and long-term success.

• Do not submerge unit in water
• Do not autoclave unit
• The Sonic Irrigator System is only to be used by dental professionals

The Sonic Irrigator System is comprised of the handpiece and Irrigator tips of various sizes.
The system functions as intended when the original component parts are used together. With the use of non-original components, serious consequences may result. The original components include the Sonic Irrigator handpiece, the Irrigator tip and protective barrier. the reference numbers of the Irrigator tips include: 15/02 (Small), 25/04 (Medium), 35/04 (Large)

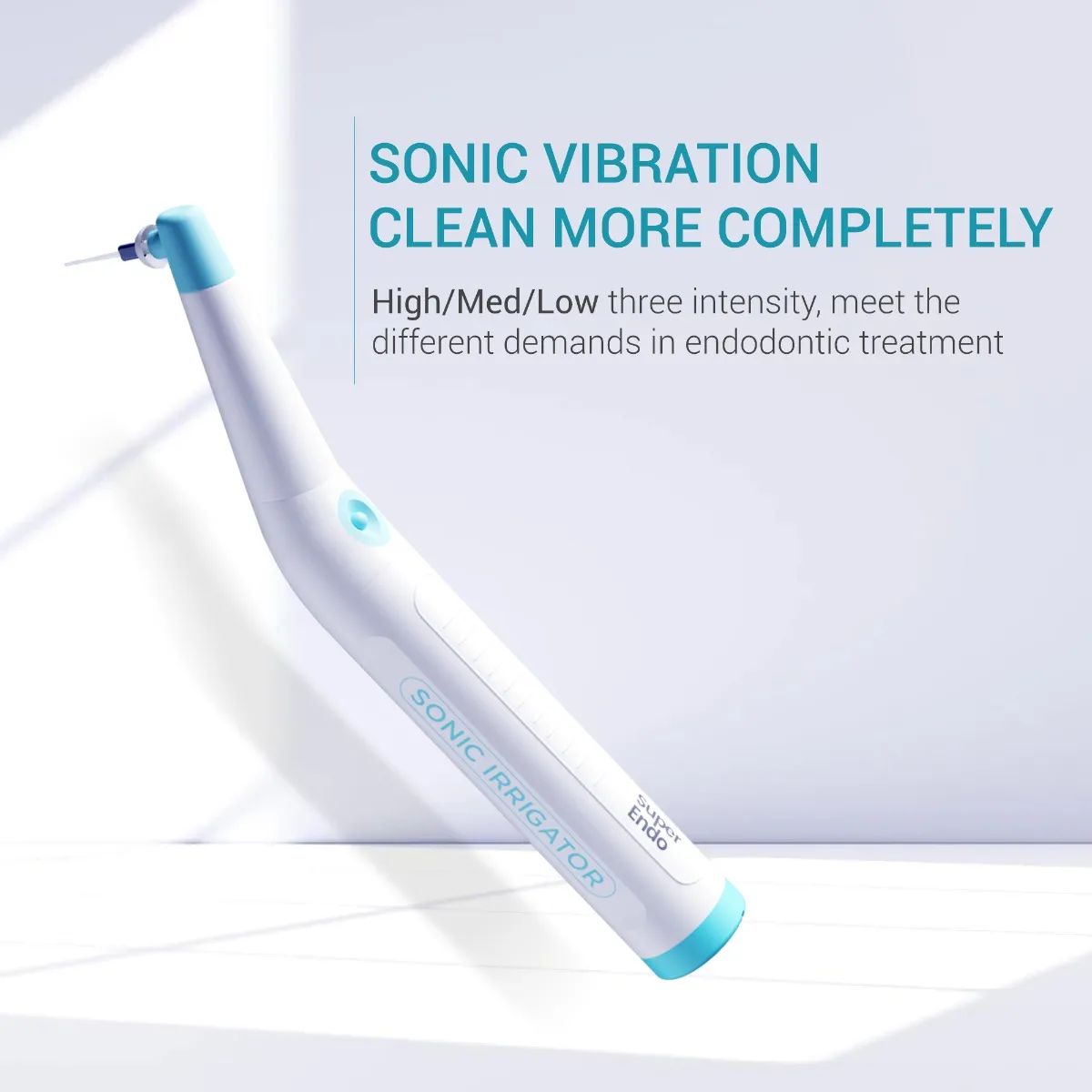

The handpiece provides 3-speed sonic motor options (High, Medium, Low)

The power settings used are ultimately determined by the procedure to be performed, clinician's experience, and the power needed to efficiently complete the clinical task.

Features:

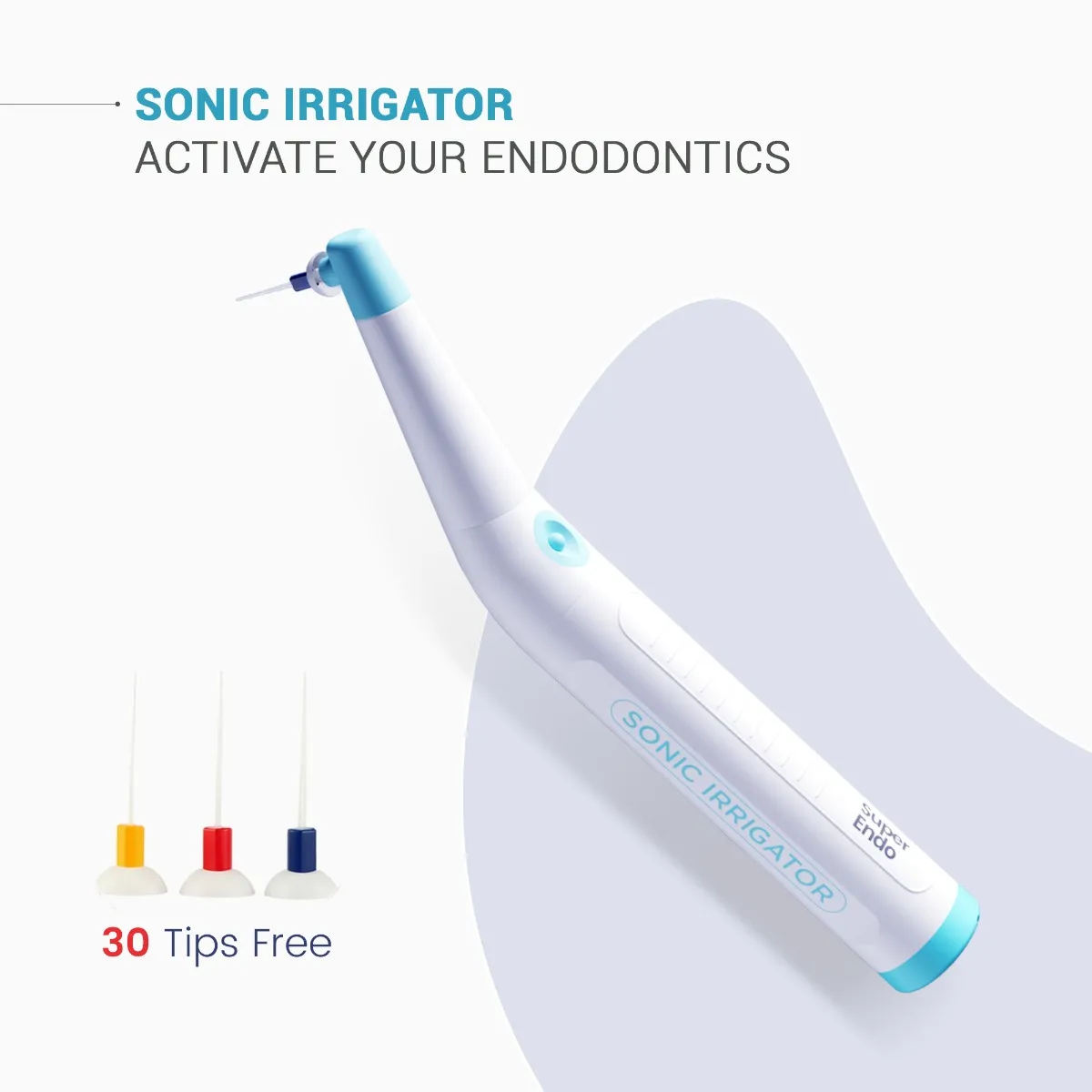

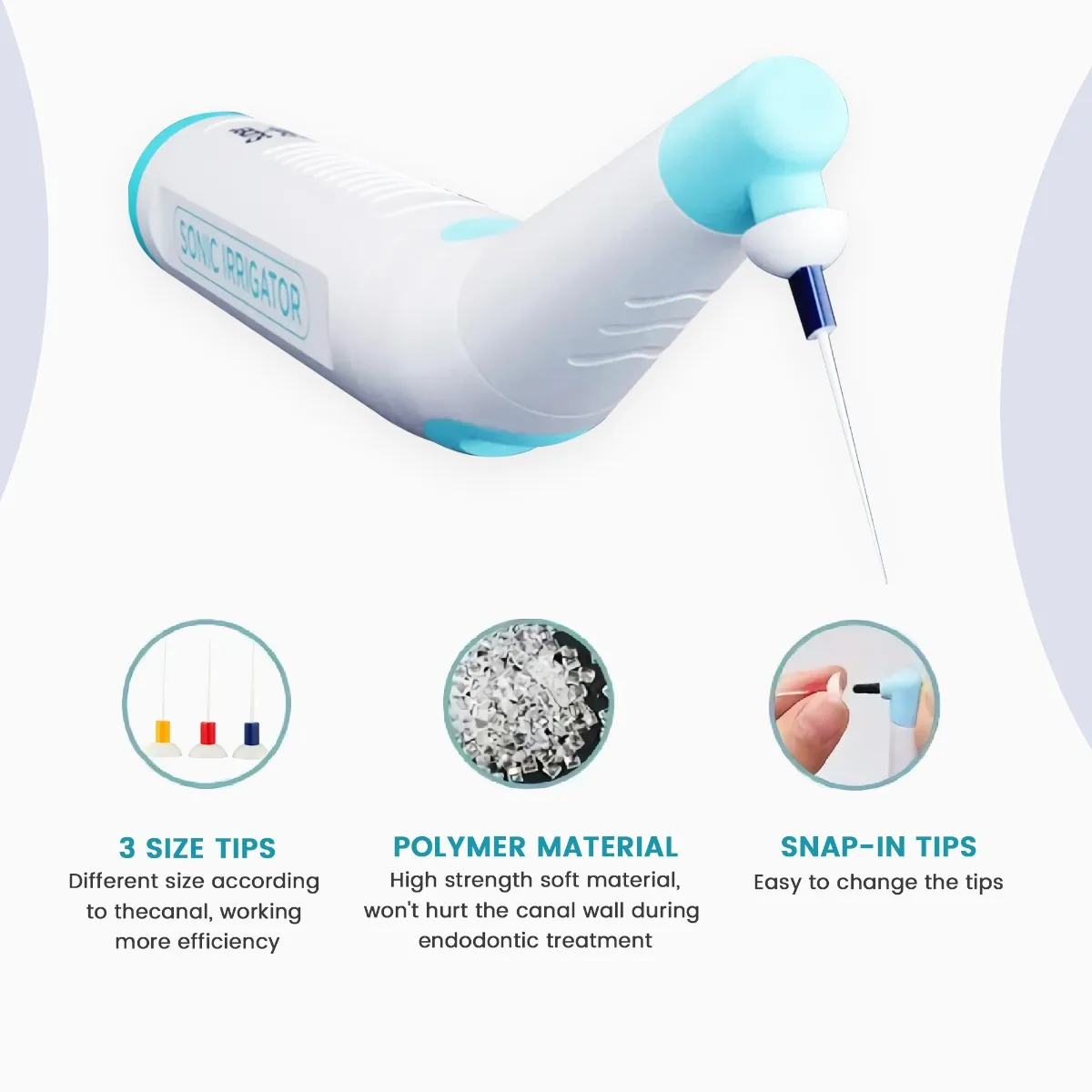

Irrigator Tips

• Color – Coded Size
• Easy Snap-on/snap-off design
• Strong, flexible
• Tips made up of medical grade polymer composition
• Smooth Non – cutting tips
• Radiolucent
• Disposable
• Secure attachment
• No apical extrusion

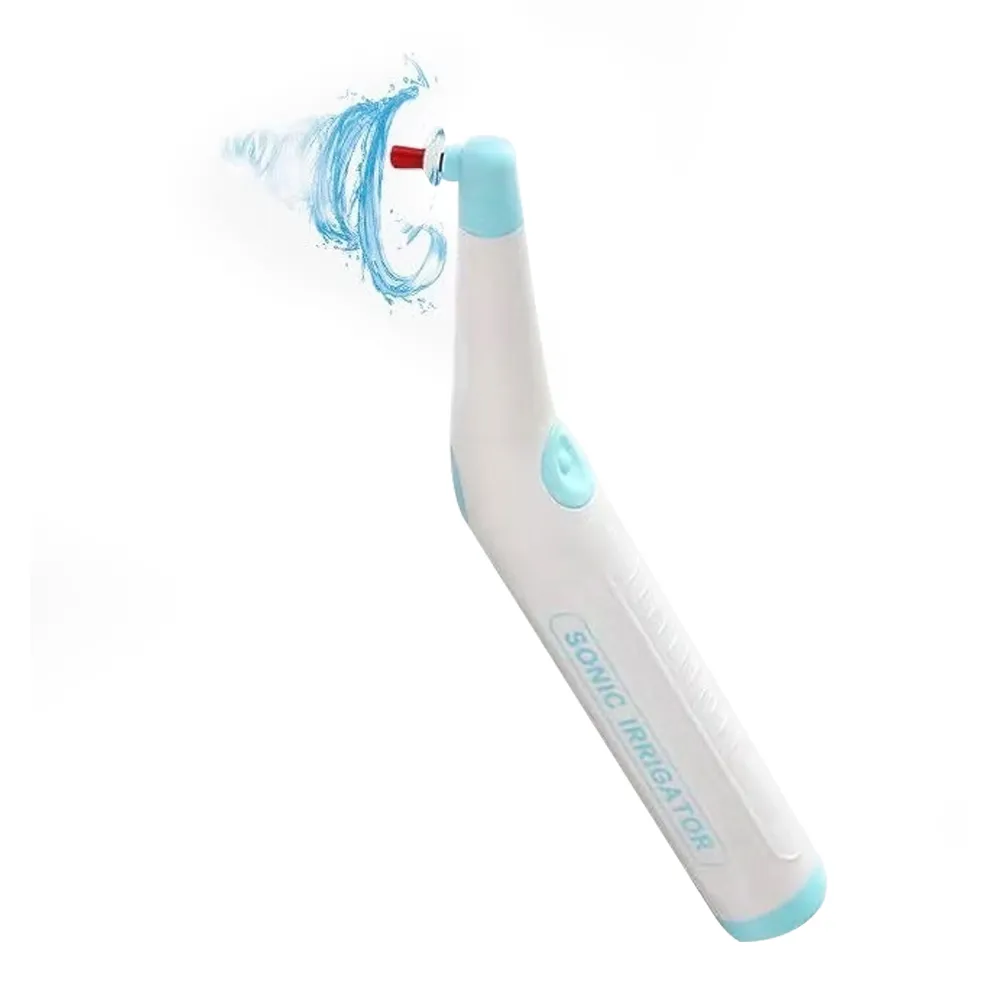

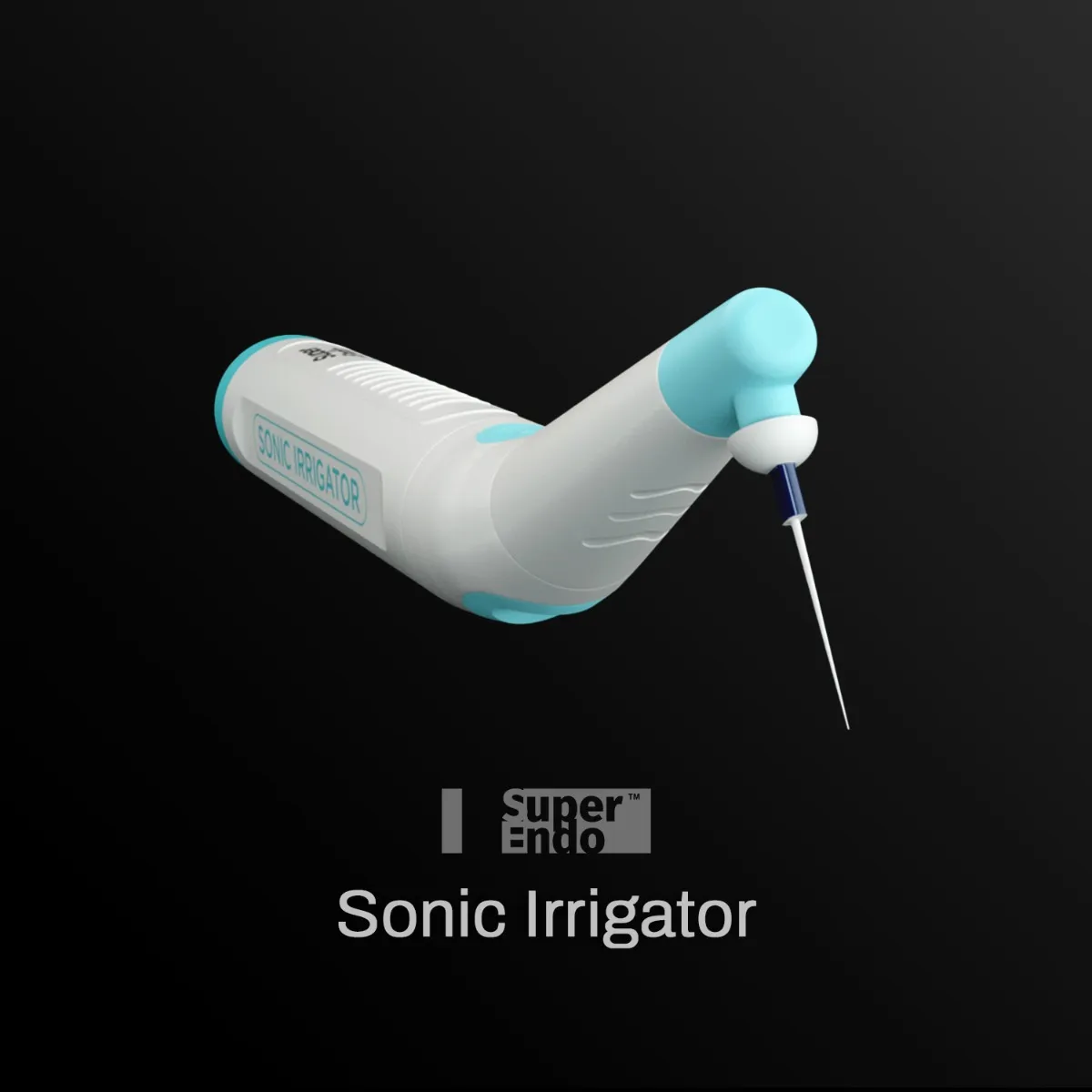

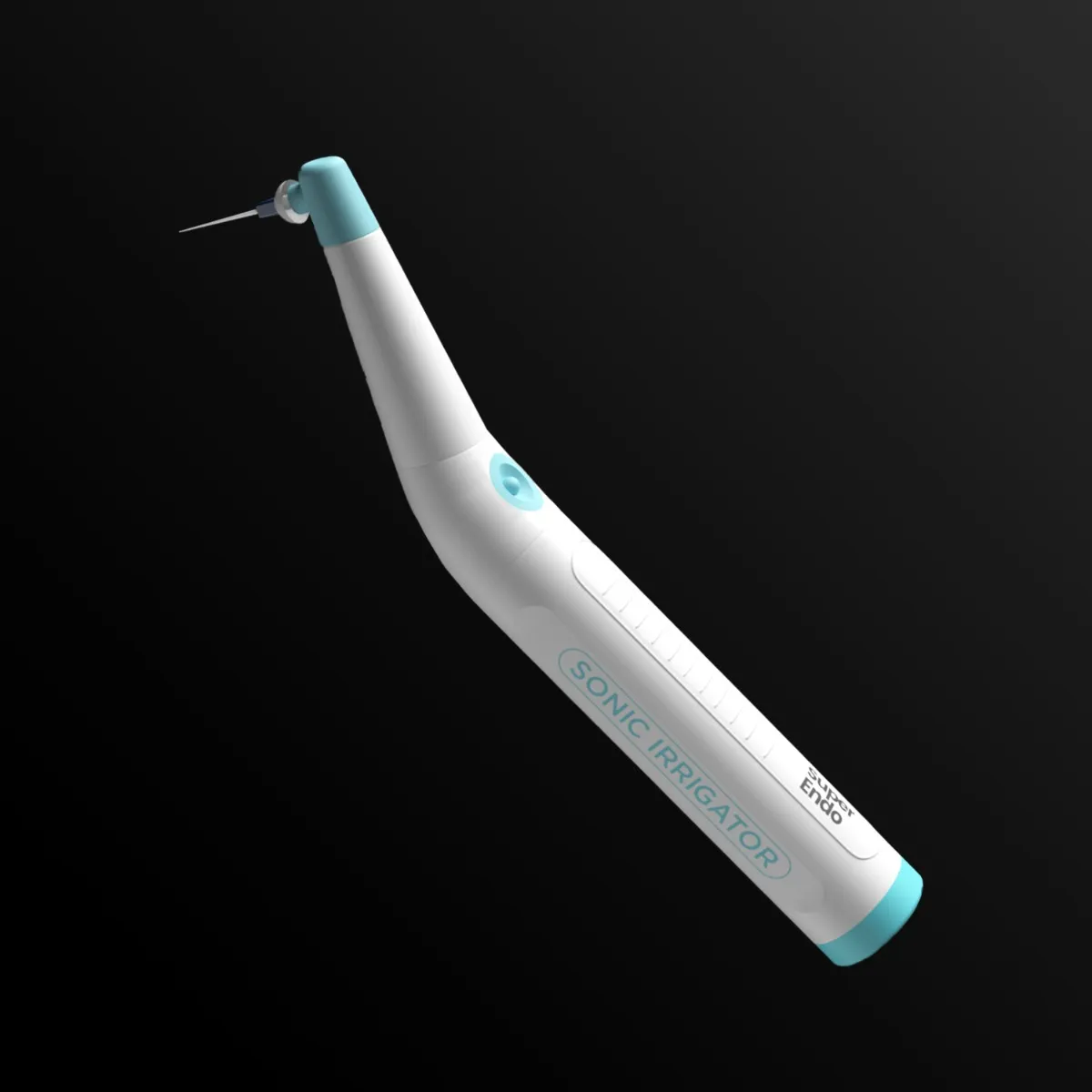

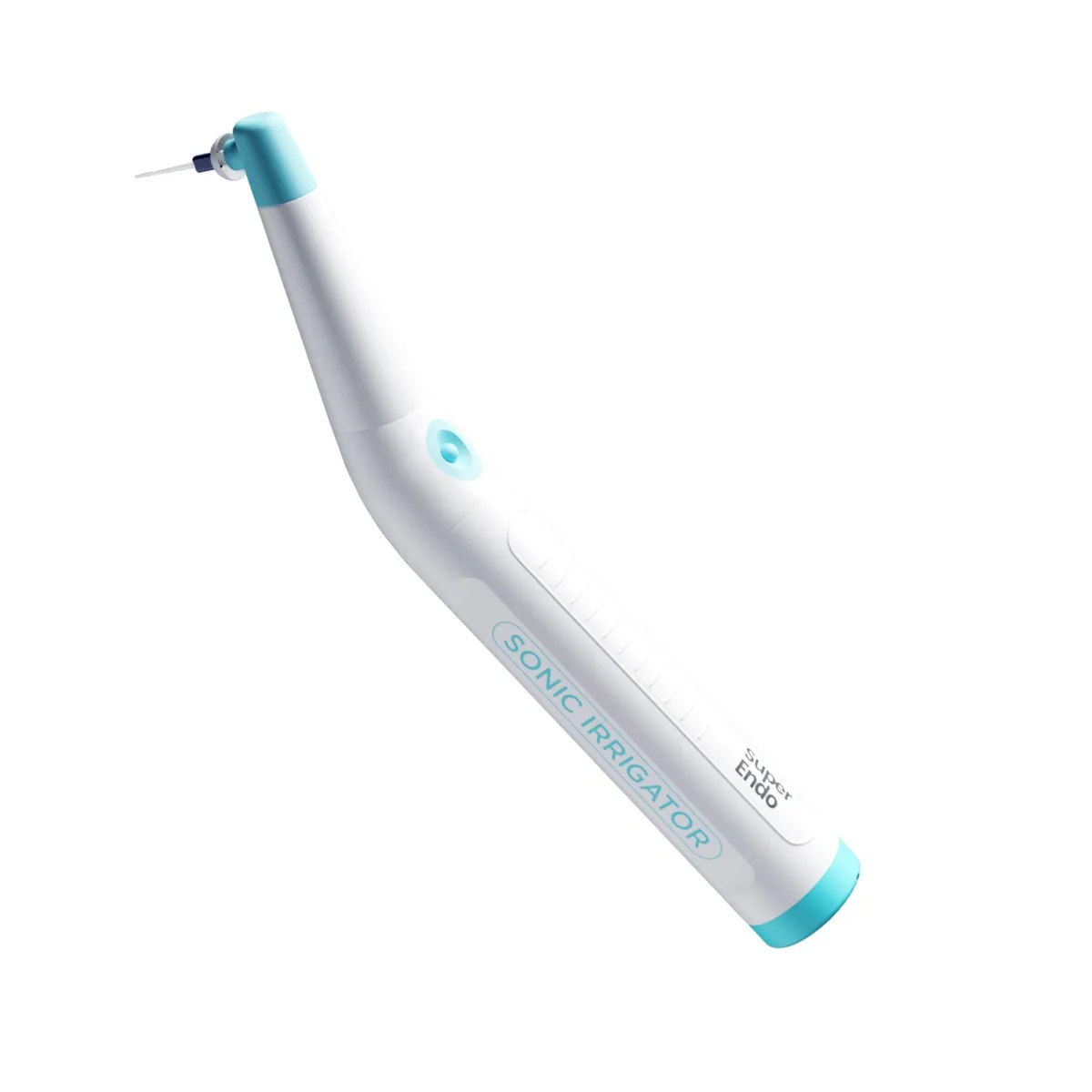

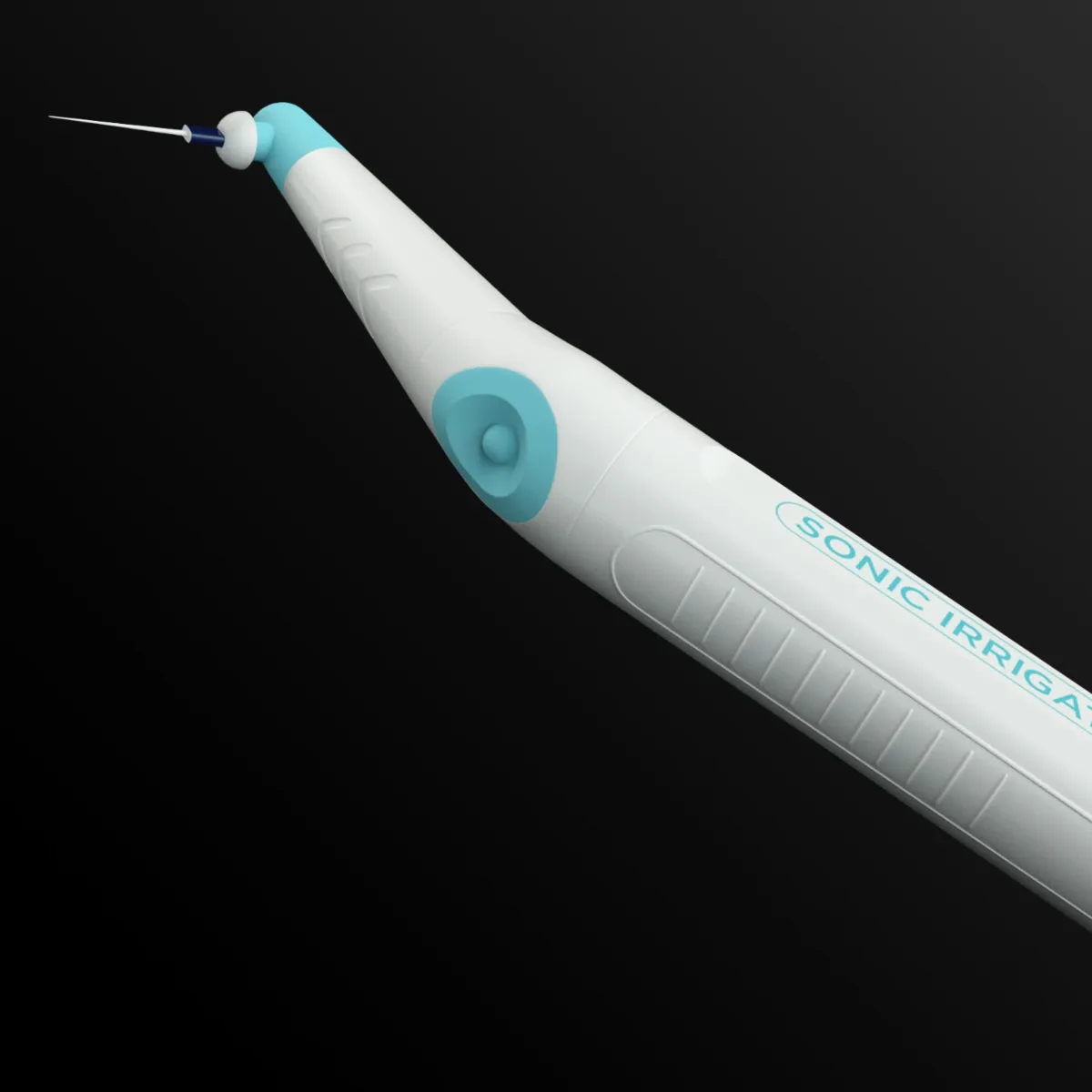

Handpiece/Driver

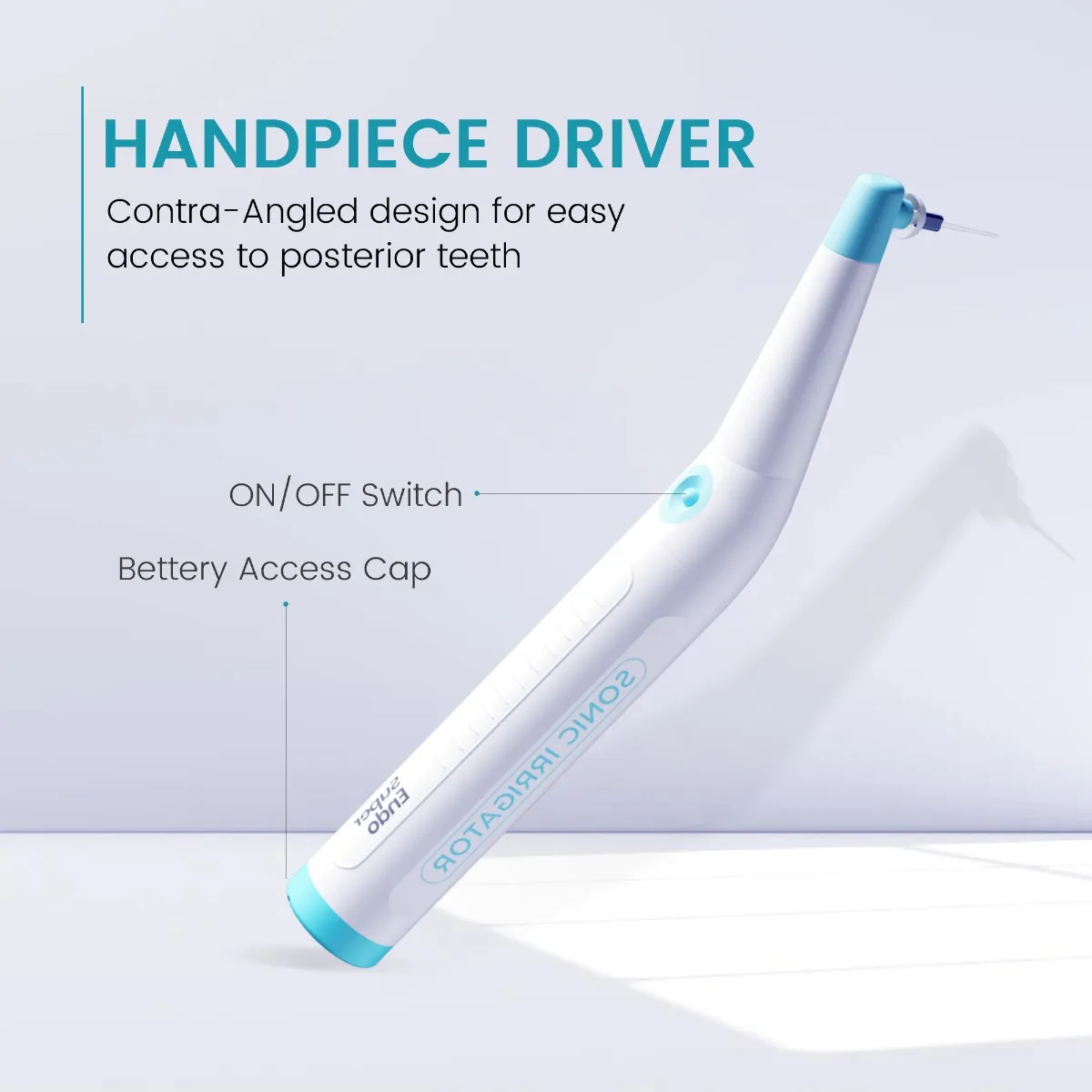

• Contra-angled design for easy access to posterior teeth
• 3-speed sonic motor provides options of 4,000, 6,000 and 10,000 rpm

Specifications:

Length : 22mm

Blue 35/04 : Large tips

Red 25/04 : Medium tips

Yellow 15/02 : Small tips

PRECAUTIONS :

• The Irrigator tip should be disinfected before use or contamination of the root canal may result.
• Proper use of the Sonic Irrigator System is required to prevent harm or hazard to the patient
• Improper handling of the Sonic Irrigator handpiece may result in breaking the distal or proximal ends of rocker arm
• Irrigator tips and protective barriers are intended for single-patient use only. Cross contamination may occur to the patient if tips and barriers are reused
• Proper disposal of Irrigator tips and protective barriers & the battery is required in accordance with local laws and regulations
• The handpiece must be repaired as necessary under the direction of the manufacturer
• Proper disposal of the handpiece when the handpiece is deemed non-functional is required in accordance with local laws and regulations
• Removal of the battery is recommended when the handpiece is not to be used for an extended period of time
• The handpiece should be stored away from strong electromagnetic equipment as it may affect handpiece performance
• The handpiece should be stored away from portable and mobile RF communications equipment as it affect handpiece performance
• The handpiece should not be used adjacent to or stackded with other
  equipment. Additionally, it should be checked for normal operating functions on a regular basis.
• All endodontic procedures should be carried out with Sonic Irrigator protective barrier sleeve placed over the handpiece

WARNING :

Consult a Cardiologist before using in patient Having CIEDs ( Cardiovascular Implantable Electronic Device) , Implantable Cardiovascular Defibrillators , Biventricular Pacemaker , Implantable Cardiac loop recorder as it may cause electromagnetic interference.

Packaging

• 1 x Sonic Irrigator
• 100 x Protective Sleeves
• 20 x Sonic Irrigator Tips (Small)
• 20 x Sonic Irrigator Tips (Medium)
• 20 x Sonic Irrigator Tips (Large)
• 1 x AA Alkaline Battery
• 1 x Charging Adapter

Driection to Use

Prepare canal to produce a fully tapered shape

• Fill pulp chamber with NaOCI, EDTA, or other final rinse solution
• Select the Irrigator tip that manually fits loosely within 2 mm of working length
• Place the barrier sleeve over the complete length of the handpiece
• Attach the Irrigator tip over the barrier-protected handpiece. The Irrigator should snap on firmly, promoting a secure connection with the handpiece
• Place the attached Irrigator tip into the prepared root canal
• Depress the ON/OFF switch to activate.
• Note: Switch defaults to high speed upon activation. Press the 3-speed switch to select medium speed or low speed.
• Use a pumping action to move the handpiece/Irrigator in short 2-3mm vertical strokes
• Hydrodynamically agitate the intracanal solution for 30-30 seconds.
• Irrigate, then use intracanal suction to eliminate loose debris.
• Repeat the above steps for each intracanal irrigant used.

Warranty

• Manufacturer warranty of 6 months is applicable to this product.
• Service and warranty are handled at manufacturer's discretion.
• Dentalkart will be liable to replace any faulty or unsatisfactory products.
• Dentalkart will provide guaranteed assistance to the customer in registering a request to get the product replaced or serviced.
• The buyer acknowledges that products once sold will not be exchanged or taken back only if seal of the package or product is intact or unaltered or is not tampered with .
