SuperEndo Endo-Z Tungsten Carbide Burs

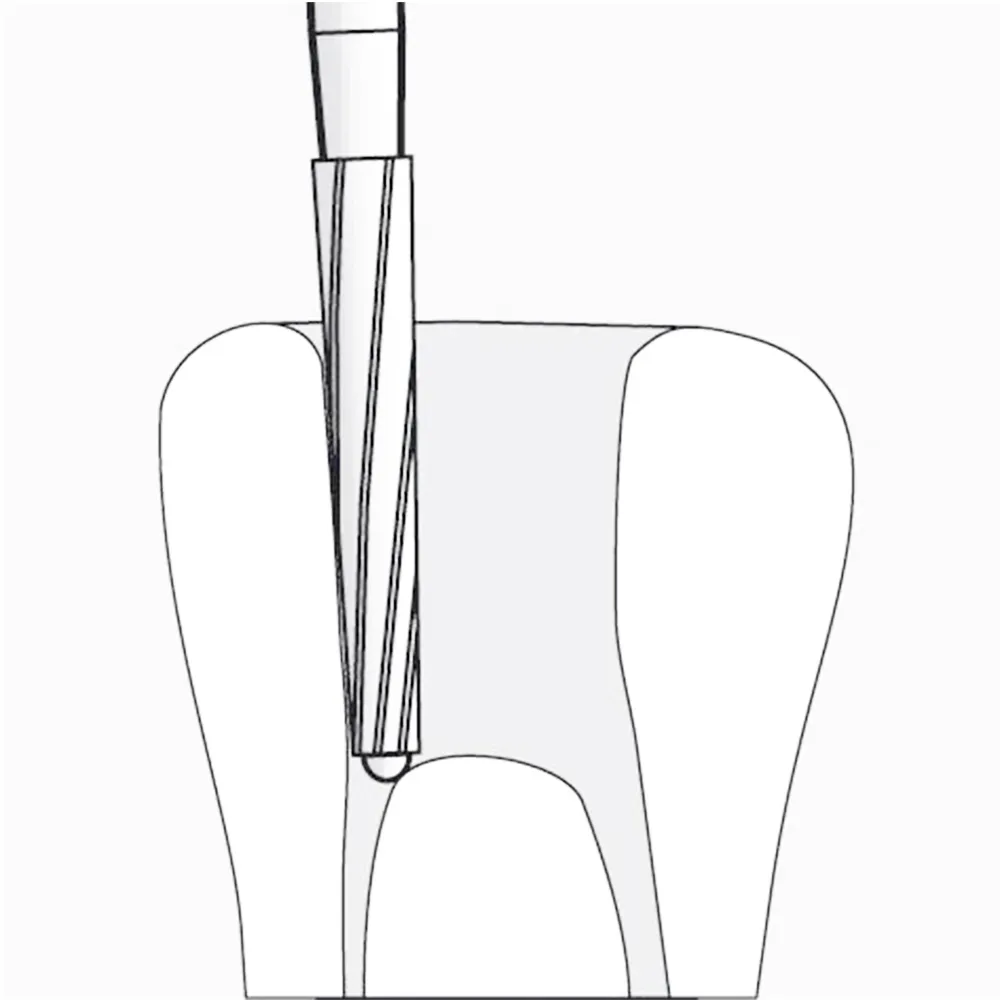

Endo-Z Tungsten Carbide Bur features a long tapered design for easy access to canal orifices and efficient shaping of chamber walls. With six specially crafted tungsten-carbide spiral blades, it cuts cleanly while lifting debris coronally along its flutes. The non-cutting tip ensures the prevention of damage to the chamber floor or walls. Once initially penetrated, the extended taper of the Endo-Z bur allows the creation of a funnel shape for enhanced access in the pulp chamber, and the rounded, non-cutting, safe-ended tip avoids penetration of the pulp chamber floor or root canal walls.

Features:

• The Endo-Z’s long tapered configuration allows easy access to the canal orifices and funnel shaping of the chamber walls.

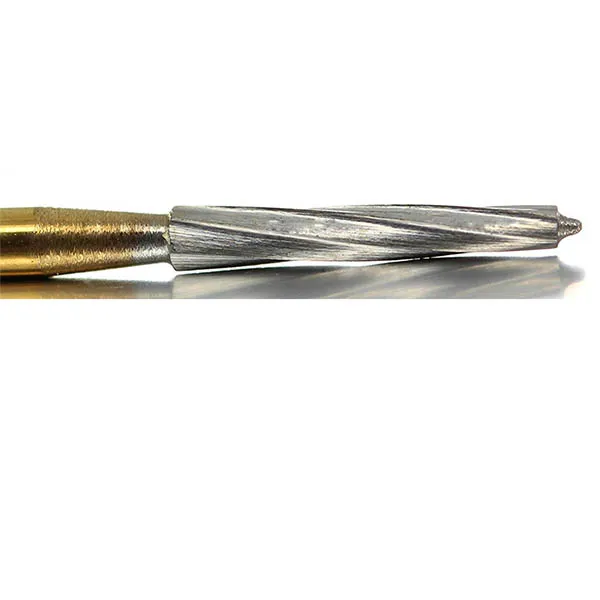

• It’s six specially designed tungsten-carbide spiral blades cut cleanly while lifting debris coronally along it’s flutes.
• Non-cutting tip prevents damage to the chamber floor or walls.
• Fast and efficient cutting
• Non-heating
• Sturdy built

Specifications:

• Shank Material : Tungsten Carbide by Titanium Layer
• Working head material: Tungsten carbide
• Head Diameter : Φ1.4mm
• Overall Length: 25mm
• Autoclavable upto 134°C

Packaging:

• 1 x Endo-Z Tungsten Carbide Bur

Driection to Use:

• Insert the instrument as deeply as possible into the chuck (Friction Grip).
• Set the handpiece at the required working speed before applying the instrument to the treated area.
• Apply a maximum operating force of 0.4 [N] and do not exceed a speed of 230'000 [rpm].
• Activate water spray during the entire treatment (minimum 50 mL/min).
• Regulate water flow in case of water excess or shortage.
• It is recommended to use a dental dam.
• Use the instruments over the entire length of their working part and not just at the tip, so as to avoid an unconscious increase of the contact pressure causing local overheating.
• Once the preparation has been completed, remove the instrument from the site and allow it to come to a standstill.
• It is recommended to wear gloves and safety glasses.
