Woodpecker Apex Locator Woodpex III Fifth-Gen

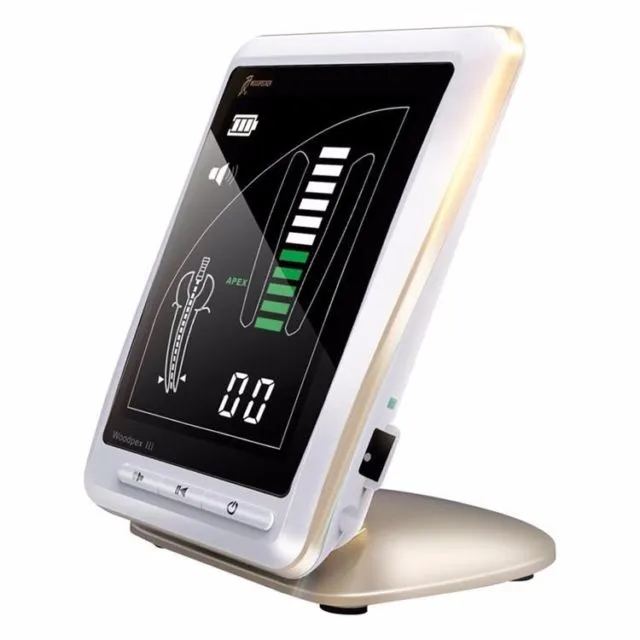

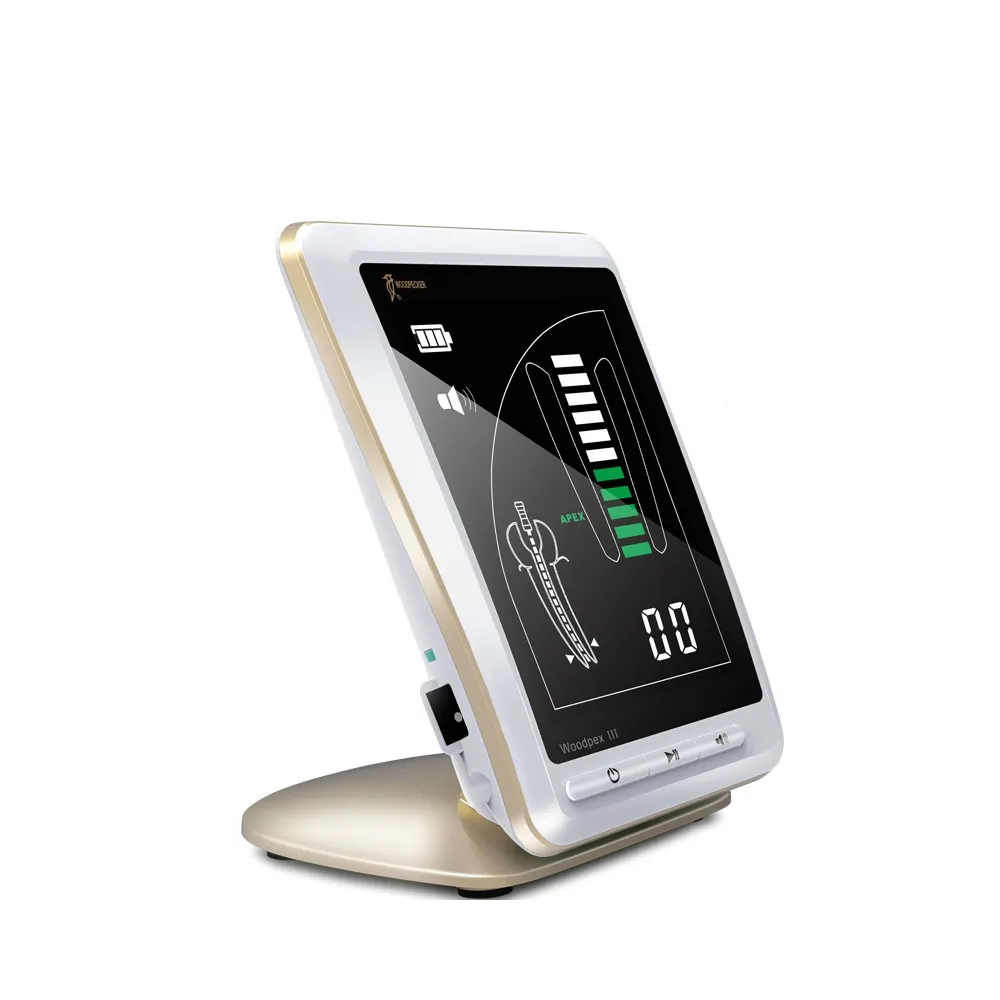

The Woodpex III L Apex Locator is a specialized tool for endodontic procedures, accurately measuring the length of apical teeth. It incorporates various features and specifications to enhance effectiveness and user-friendliness. The device boasts a clear LCD screen that displays the file trajectory in different colors, ensuring easy visualization. Utilizing advanced multiple-frequency network impedance measurement technology and automatic calibration, it delivers precise and accurate measurements.

An important feature of the Woodpex III L Apex Locator is its autoclavable accessories, including the measuring wire, file clip, and lip hook, which can be sterilized under high temperature and pressure to prevent cross-infection and maintain hygiene standards.

Operating on a rechargeable battery, the device eliminates the hassle of frequent battery replacements, ensuring convenience and uninterrupted use during dental procedures. The main unit includes indicators for power, sound, length measurement, and a power on/off button. Essential accessories include the measuring wire, file clip, lip hook, measuring file, battery tester, and apex enlarging emulsion.

The Woodpex III is designed for various dental conditions such as pulpitis, pulp necrosis, periapical periodontitis, tooth length assessment before post crown restoration, and tooth length for transplantation and retransplantation.

Note: Apex locators like the Woodpex III claim an accuracy rate of 97.7%. Readings may vary compared to conventional radiographic methods and can fluctuate if precautions outlined in the user manual are not followed.

Features

• Sound changes indicate file position in the root canal.
• Measurement independent of file thickness.

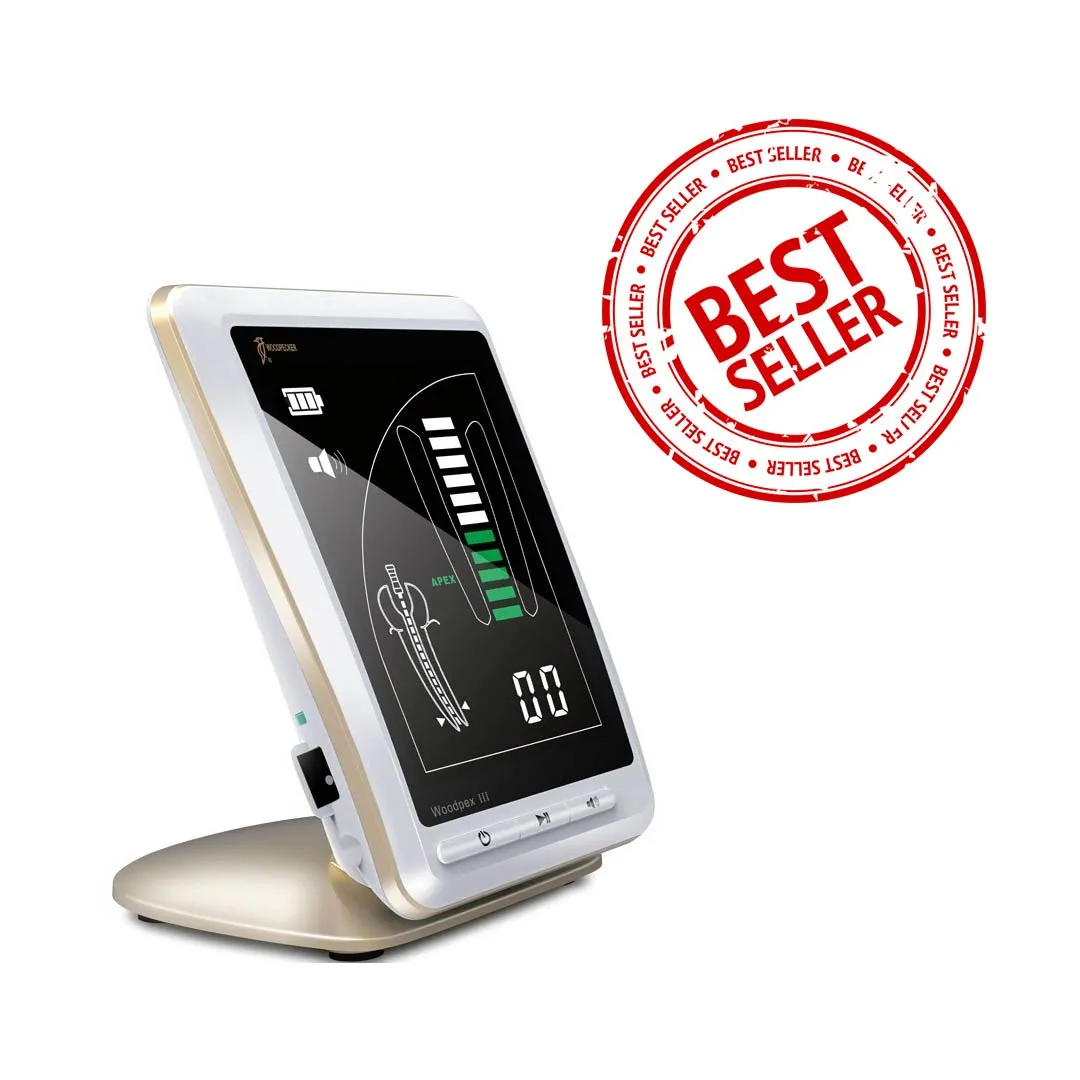

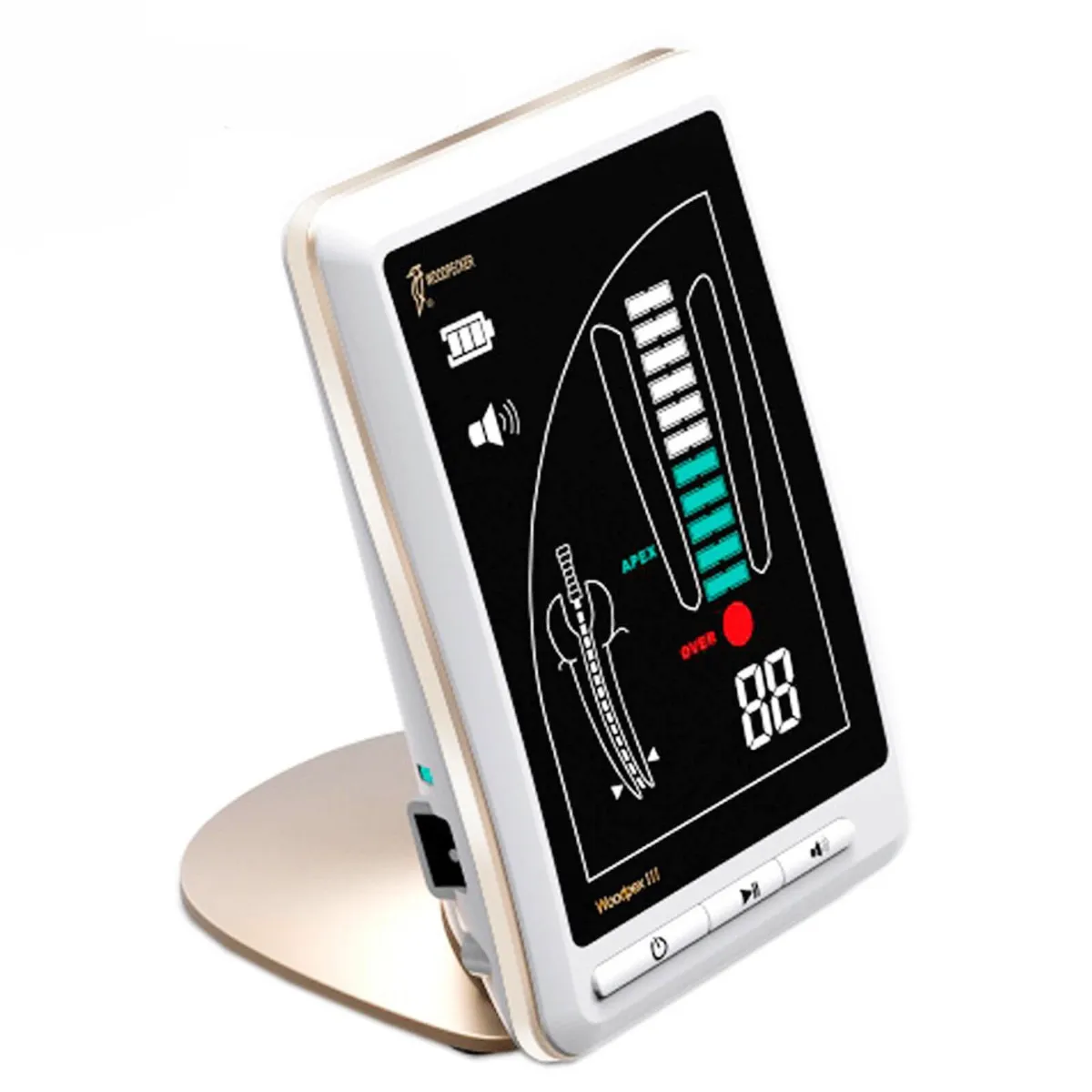

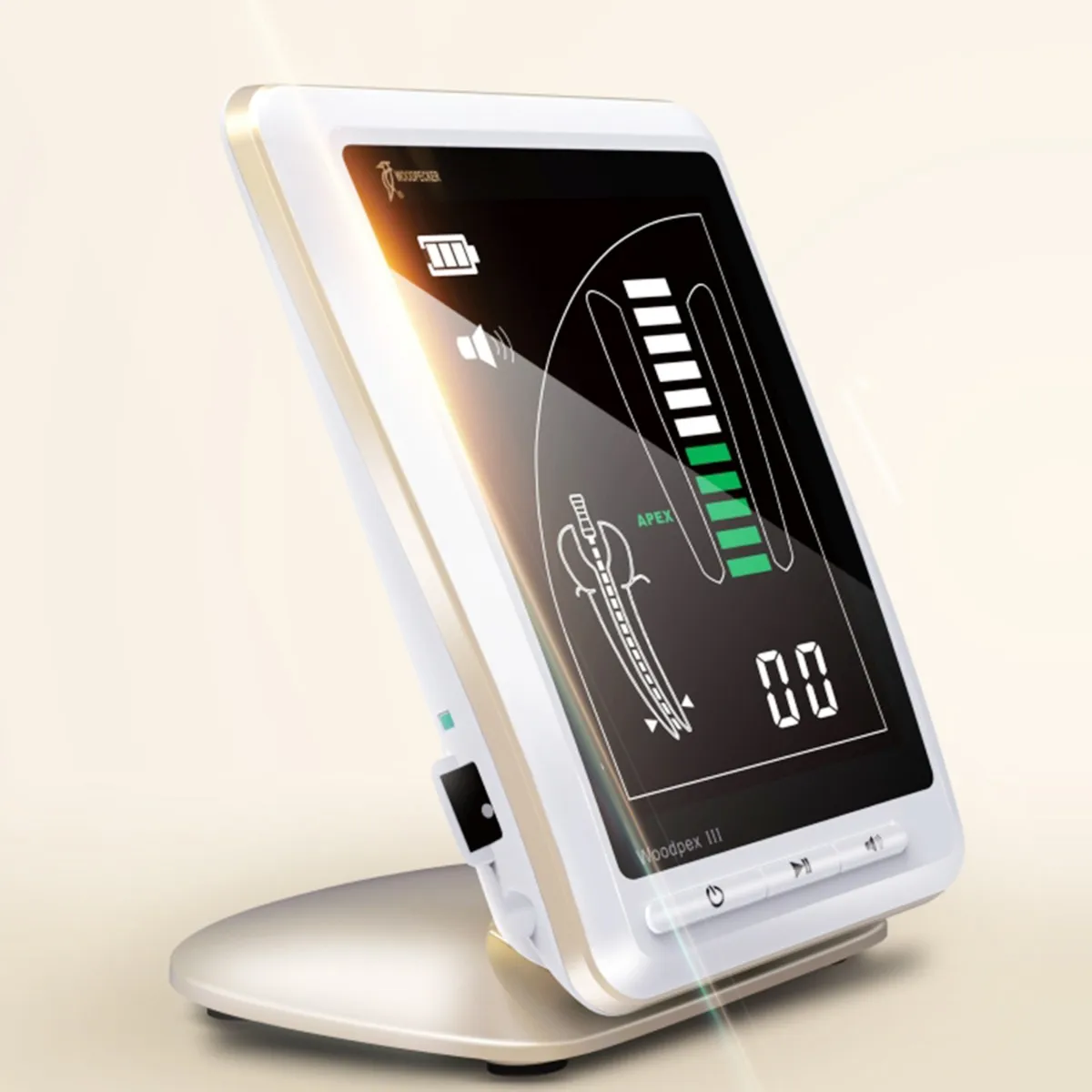

• Clear bright LCD display with color-coded trajectory indication.
• Advanced multiple frequency network impedance measurement for accurate results.
• Autoclavable accessories for effective cross-infection prevention.
• Rechargeable battery for convenient and cost-effective use.

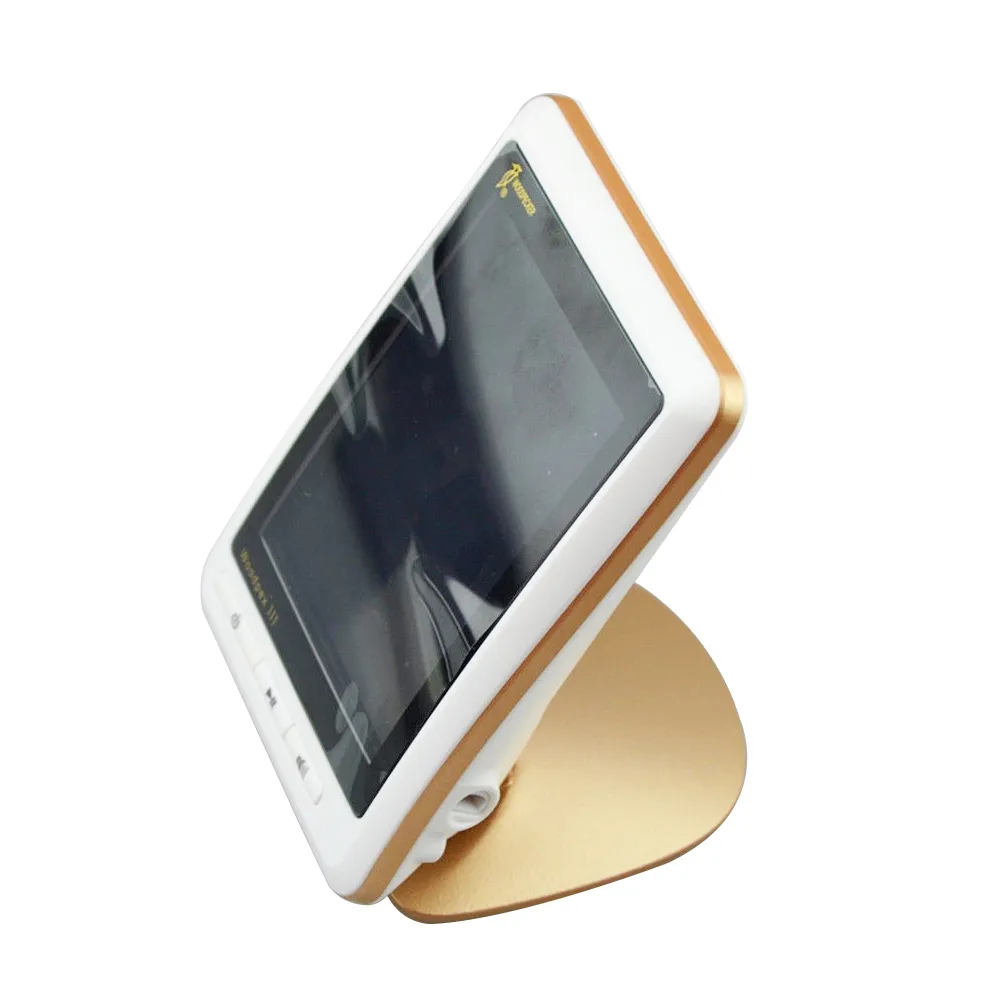

• Folding design for easy adjustment of visual angle.

Specifications

• Battery: 3.7V/750mAh
• Adapter: 100V - 240V 501-Iz/60Hz
• Power consumption: 50.5W
• Screen: 4.5" LCD
• Buzzer alert: The buzzer will alert when the endo file is less than 2mm to the apex
• Environment temperature: +5°C to +40:C
• Relative humidity: 580%
• Atmosphere pressure: 50kPa to 106kPa
• Main unit net weight: 336g
• Main unit gross weight: 360g Unit
• Dimension: 195mm x 137mm x 123mm

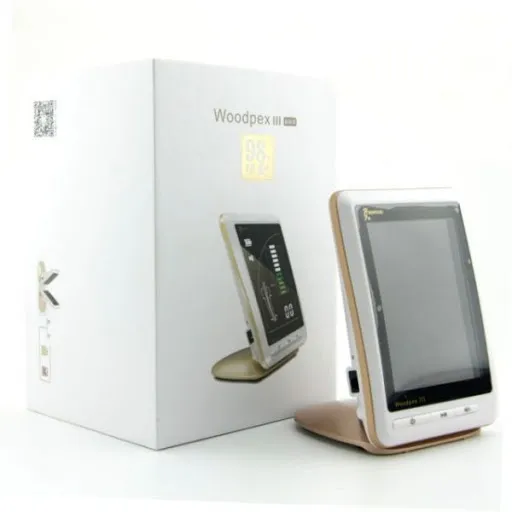

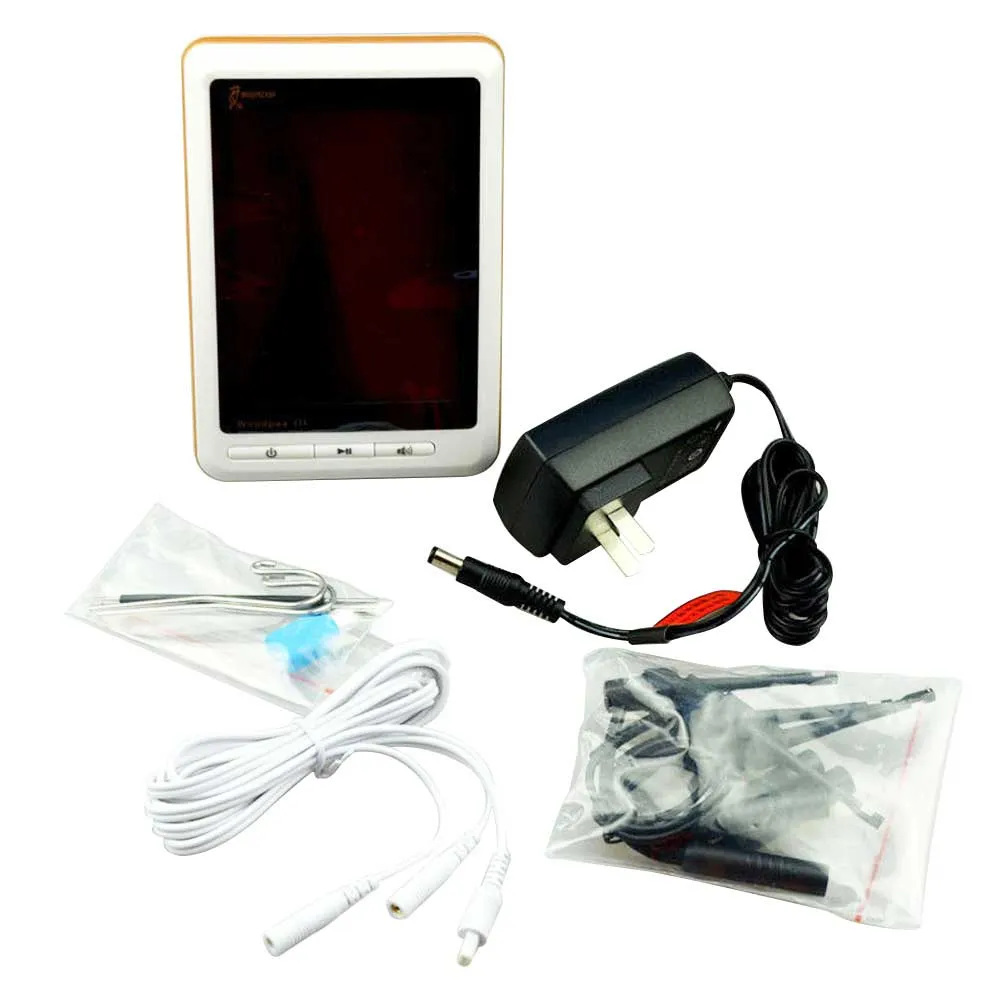

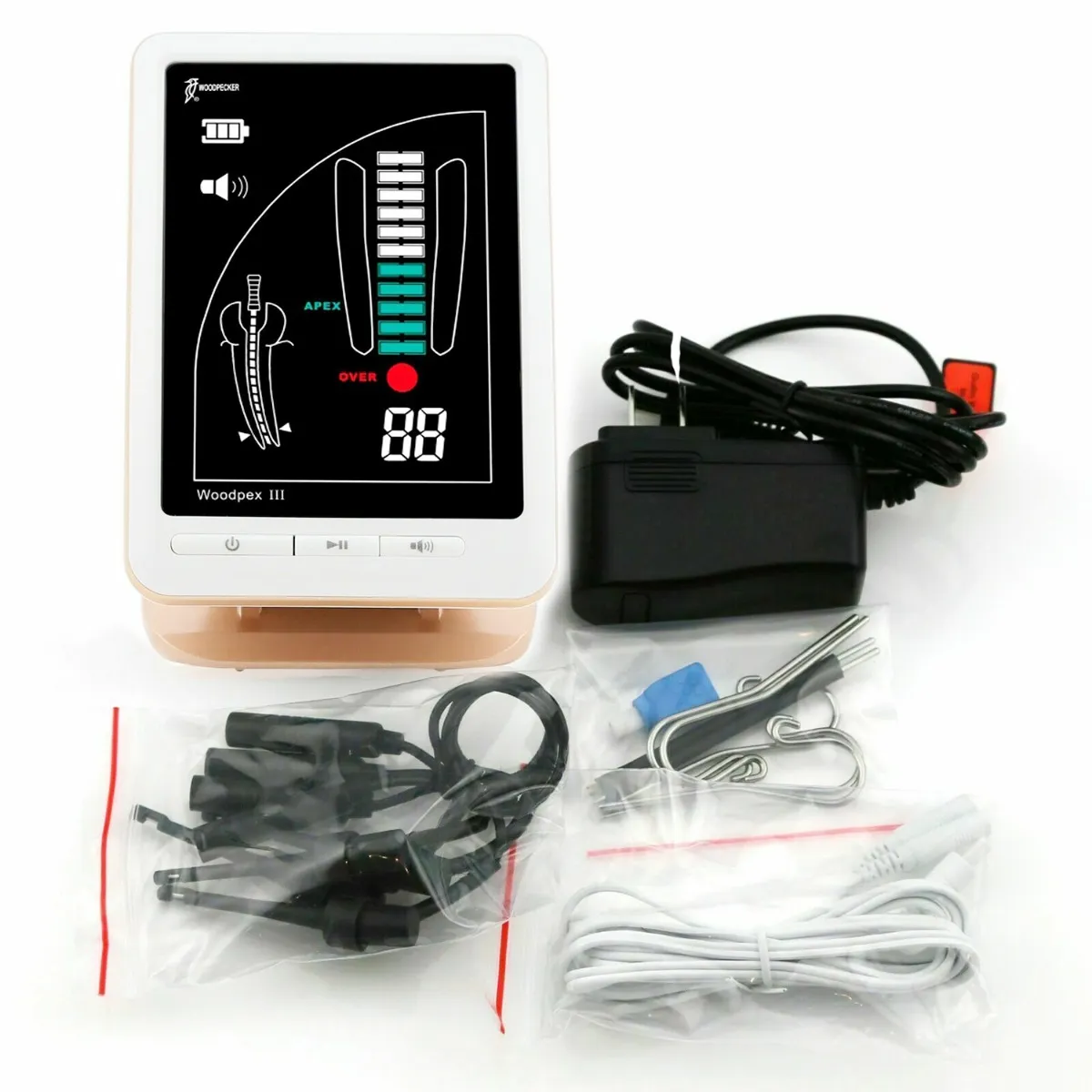

Packaging

• 1 X Main Unit
• 1 X Measuring Wire
• 2 X File Clip
• 2 X Lip Hook
• 2 X Measuring File
• 1 X Adapter
• 1 X Tester
• 1 X Battery
• 1 X Instruction Manual
• 1 X Qualified Certificate
• 1 X Warranty Card
• 1 X Packing List

Driection to Use

Preparation:

• Ensure the device is fully charged before use.
• Autoclave reusable accessories (measuring wire, file clip, lip hook) for hygiene.

Powering On the Device:

• Press the power button on the main unit to turn on the Woodpex III Gold.

Setting up the Measurement File:

• Attach the measuring file to the file clip securely.
• Connect the measuring wire to the file clip.

Locating the Apex:

• Isolate the tooth with a dental dam.
• Apply conductive gel to the measuring file's tip.
• Gently insert the measuring file into the root canal until resistance is felt.
• Advance the measuring file slowly while observing the LCD screen.

Interpreting the Measurement:

• Pay attention to the length measurement indicator and color display.
• Adjust file position based on displayed colors.

Alert Function:

• Be cautious when the buzzer alert sounds (file less than 2mm from the apex).

Powering Off the Device:

• Press and hold the power button to shut down the Woodpex III Gold.

Cleaning and Storage:

• Clean accessories with a disinfectant solution after each use.
• Store the device in a clean and dry environment.

Warranty

The manufacturer/importer provides a 5-year warranty for the PCB (Power Circuit Board) starting from the date of the invoice, and a 12-month warranty covers all other parts of the product, excluding physical damage. Service and warranty matters for this product are directly managed by the manufacturer/importer.

Sudenkart is not responsible for replacing products; this responsibility falls on the manufacturer/importer. Both Sudenkart and the buyer agree that any warranties for the products are solely provided by the original manufacturer/importer. Claims for returns and replacements must be directed to the relevant manufacturer/importer, although Sudenkart may aid customers in requesting product servicing or replacements.

The buyer understands that once products are sold, they cannot be exchanged or returned unless the package seal or product remains intact and unaltered.
