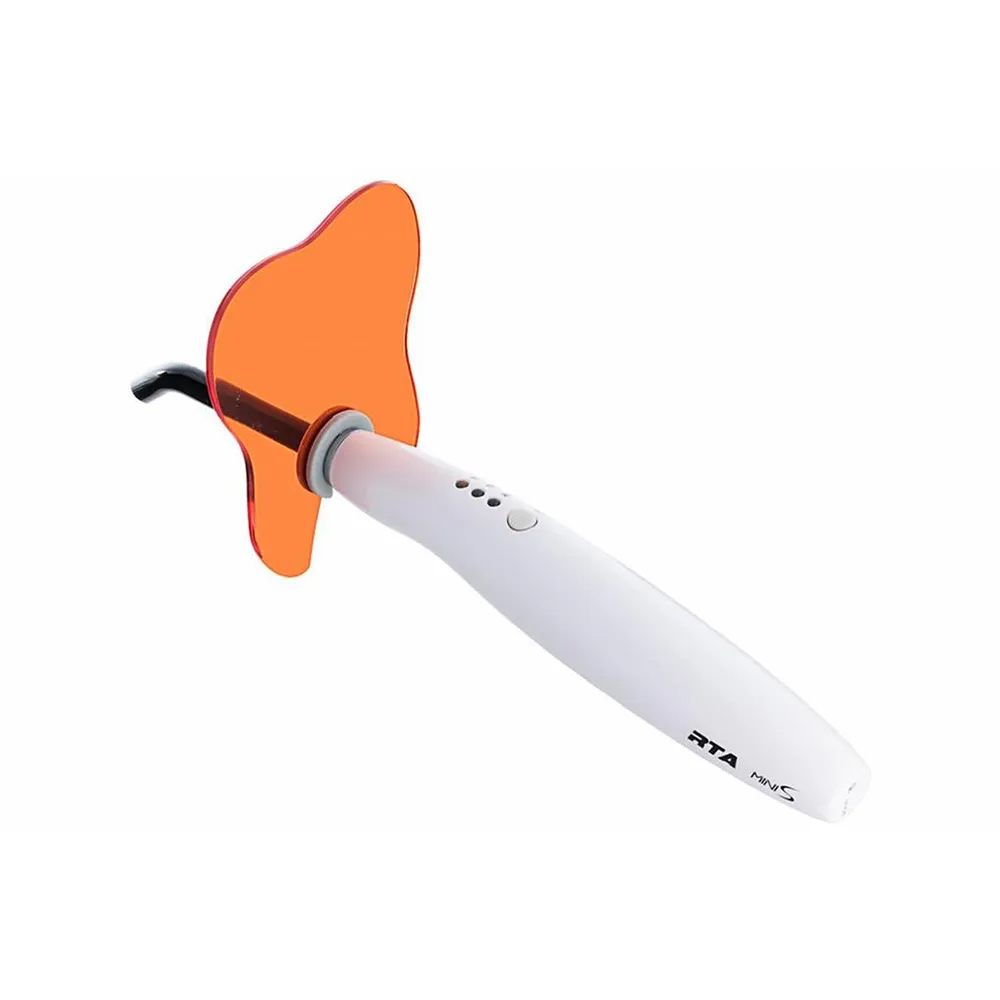

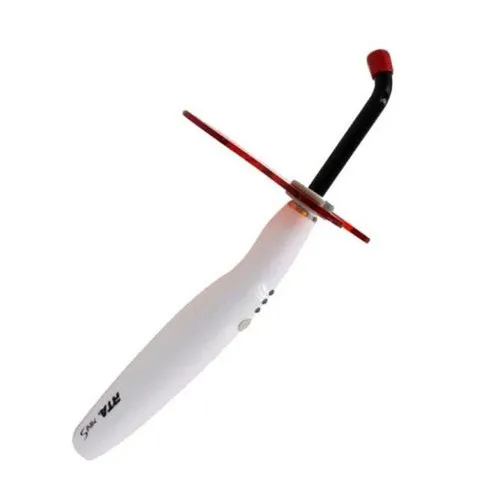

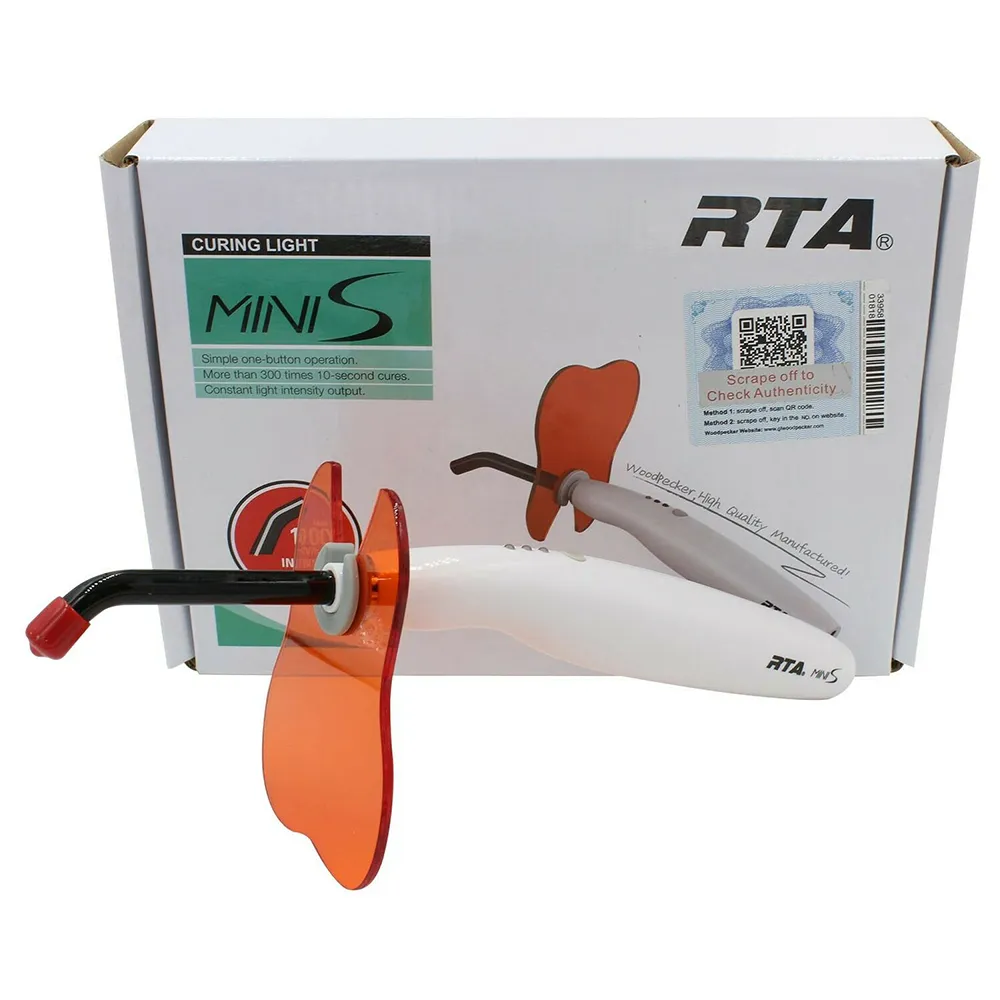

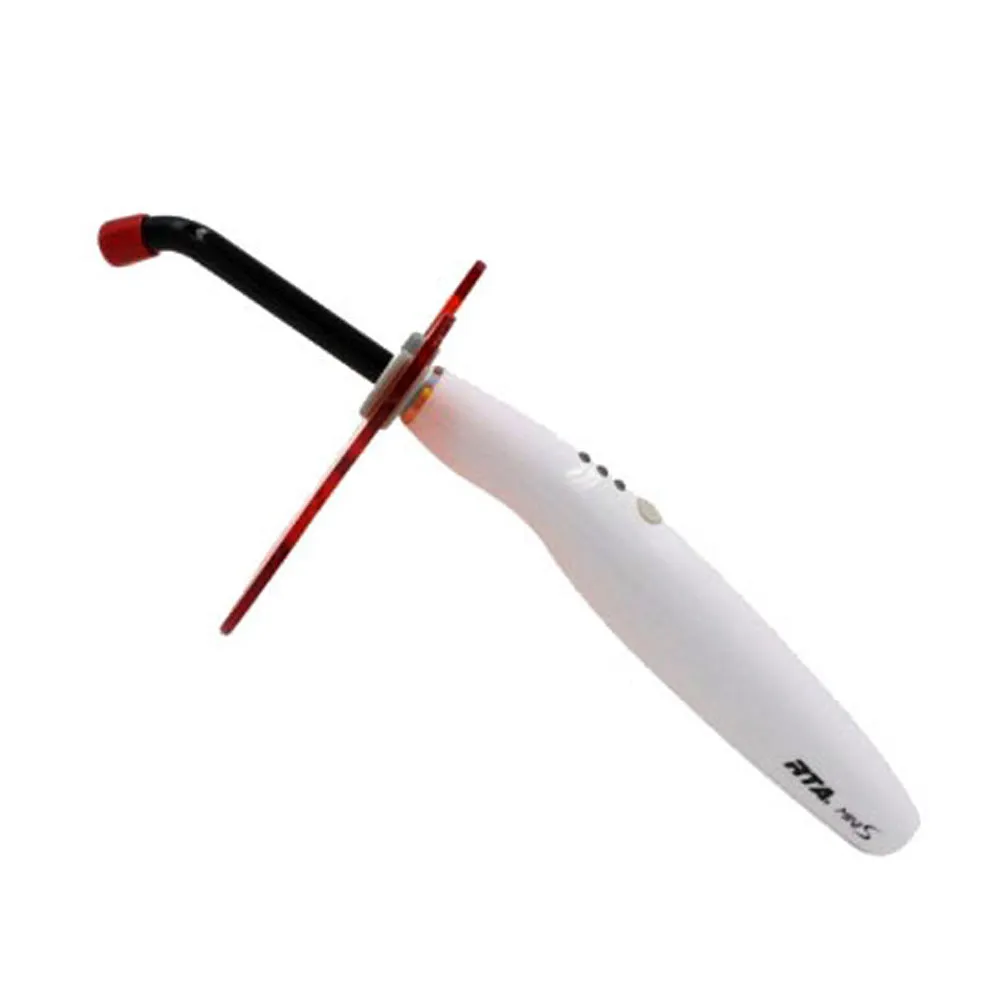

Woodpecker Mini S Light Cure LED Unit

The MiniS curing light is a dental instrument designed for tooth restoration, compact and ergonomically crafted for efficiency. It uses ray radiation to solidify light-sensitive resin quickly, employing high-power blue light. Its user-friendly features and efficient performance make it an invaluable tool for dental professionals.

A standout feature of the MiniS curing light is its ability to maintain consistent solidification regardless of remaining power, ensuring reliable performance throughout procedures. With a full charge, it can be used continuously over 300 times in the 10-second working time mode, offering convenience and efficiency. The device integrates a 3W high-power blue light LED suitable for dental resin solidification, with a wavelength range compatible with popular dental resin types for optimal results.

Operation is straightforward, with a button for power control and setting the desired solidification time. During use, blue light emission is accompanied by a countdown timer indicating remaining solidification time. Dentists can interrupt the process at any time for precise control, enhancing adjustments during procedures. The MiniS curing light's compact, ergonomic design ensures comfort during extended use, making it a reliable and efficient tool for delivering high-quality dental restorations and improving the treatment experience for patients.

Features

• Extended Battery Life: Can be used over 300 times with a full charge in the 10-second working time mode.
• Ergonomic Design: Compact and convenient design for comfortable handling during dental procedures.
• Efficient Light Filtering: Special light hood and holder design for high-efficiency light filtering.
• Easy Time Setting: Simple button operation for quick and easy time mode selection (5s, 10s, 20s).
• High Power LED: Features a 3W high power blue light LED with a wavelength range suitable for dental resin solidification.
• Portable and Lightweight: Compact size and lightweight construction for easy portability and maneuverability.

Specifications

• Net weight: 105g
• Dimensions: 230mm×26mm×30mm
• Power input: AC100V-240V 50Hz/60Hz
• Light output: 1000mW/cm² -1200mW/cm²
• Battery: 3.7V/1400mAh
• Battery mode: ICR 18490
• Power Output: DC4.2V/1A
• Wavelength: 420nm-480nm
• Light intensity: 1000mW/cm²-1200mW/cm²
• Light effective acreage: 50mm²

Packaging

• 1 x LED curing light
• 1 x Guide rod tip
• 1 x Light slides
• 1 x Power adapter
• 1 x Lithium battery
• 1 x Operating manual
• 1 x Guarantee card

Driection to Use

• Ensure that the MiniS curing light is fully charged before use.

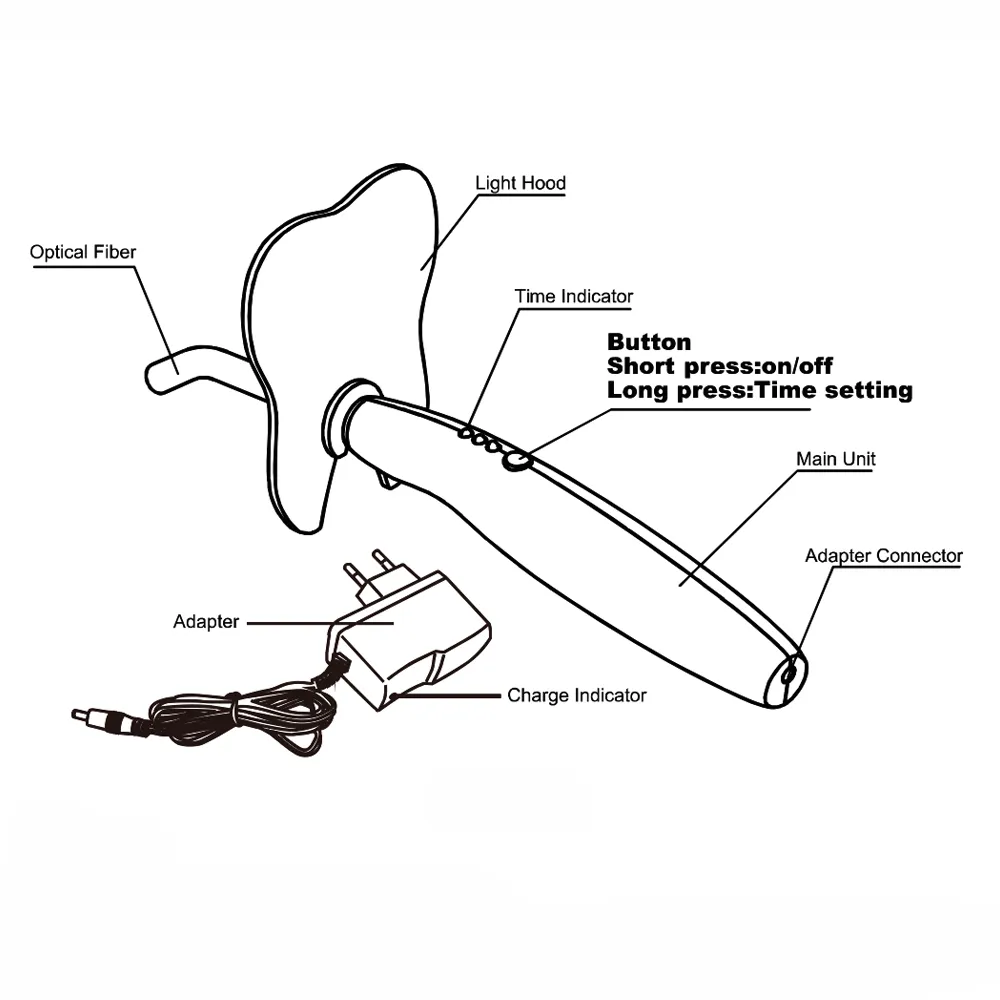

• Press the button on the main unit to turn on the curing light. The blue light will indicate that the device is in operation.
• Long press the button to access the time setting mode. The time indicator will start flashing. Choose the desired time mode (5s, 10s, or 20s) by releasing the button when the indicator reaches the desired setting.
• Aim the blue light at the area that requires resin solidification.
• Short press the button to start the curing process. The main unit will emit a "Bi" sound, and the blue light will radiate, indicating that the solidification process has begun based on the selected time mode.
• The countdown timer will start, and the light will continue to emit blue light until the set time elapses.
• To stop the curing process at any time, simply short-press the button again.
• After each working cycle, you can initiate another cycle by short pressing the button. If the equipment becomes noticeably hot, allow it to cool down before restarting. It is recommended to limit continuous working cycles to less than 10 times.
• The main unit has a low-power detection circuit. If low power is detected, the display screen will blink or the buzzer will ring three times. Recharge the device promptly.
• To charge the battery, connect the adapter's plug to a power supply and connect the output plug to the main unit's input plug. The adapter's charge indicator will change color to indicate the charging status.
• Clean the optical fiber with a soft cloth after each use to maintain its performance.

Warranty

The manufacturer/importer provides a 5-year warranty for the PCB (Power Circuit Board) starting from the date of the invoice, and a 12-month warranty covers all other parts of the product, excluding physical damage. Service and warranty matters for this product are directly managed by the manufacturer/importer.

Sudenkart is not responsible for replacing products; this responsibility falls on the manufacturer/importer. Both Sudenkart and the buyer agree that any warranties for the products are solely provided by the original manufacturer/importer. Claims for returns and replacements must be directed to the relevant manufacturer/importer, although Sudenkart may aid customers in requesting product servicing or replacements.

The buyer understands that once products are sold, they cannot be exchanged or returned unless the package seal or product remains intact and unaltered.
