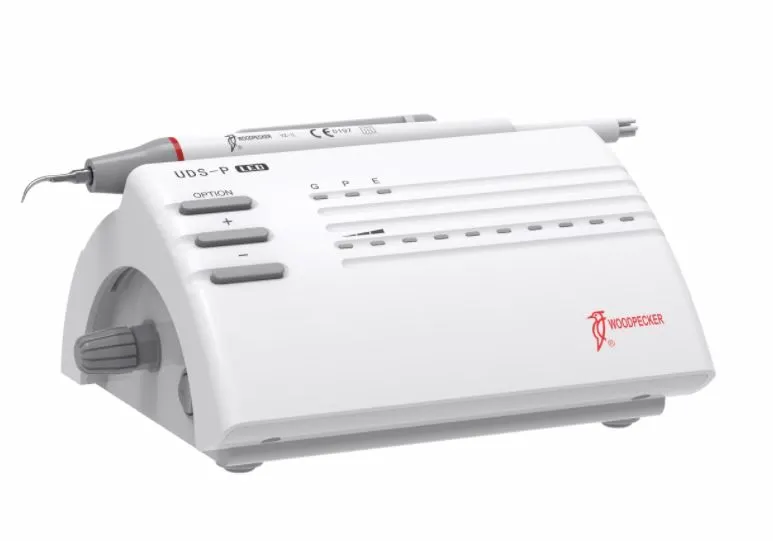

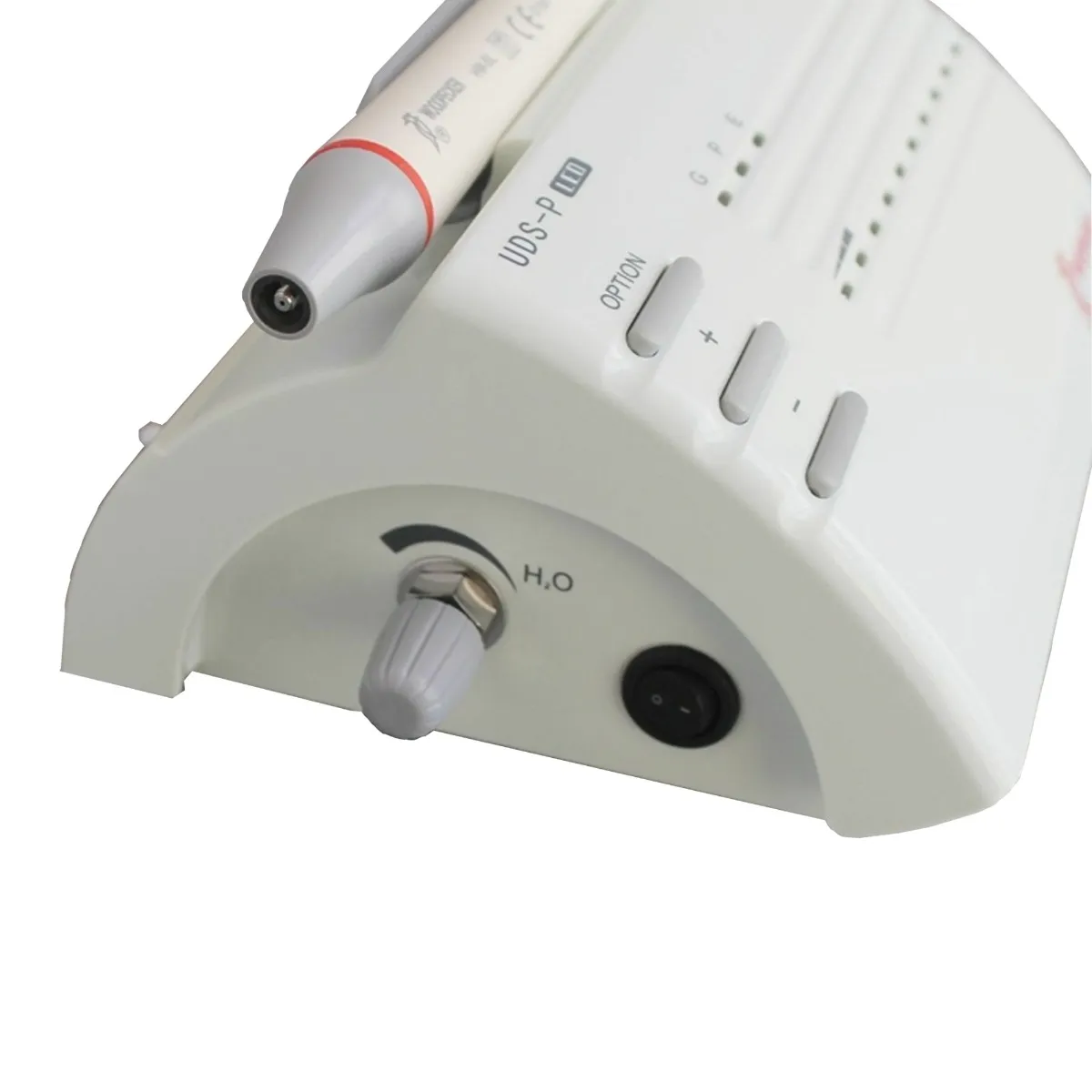

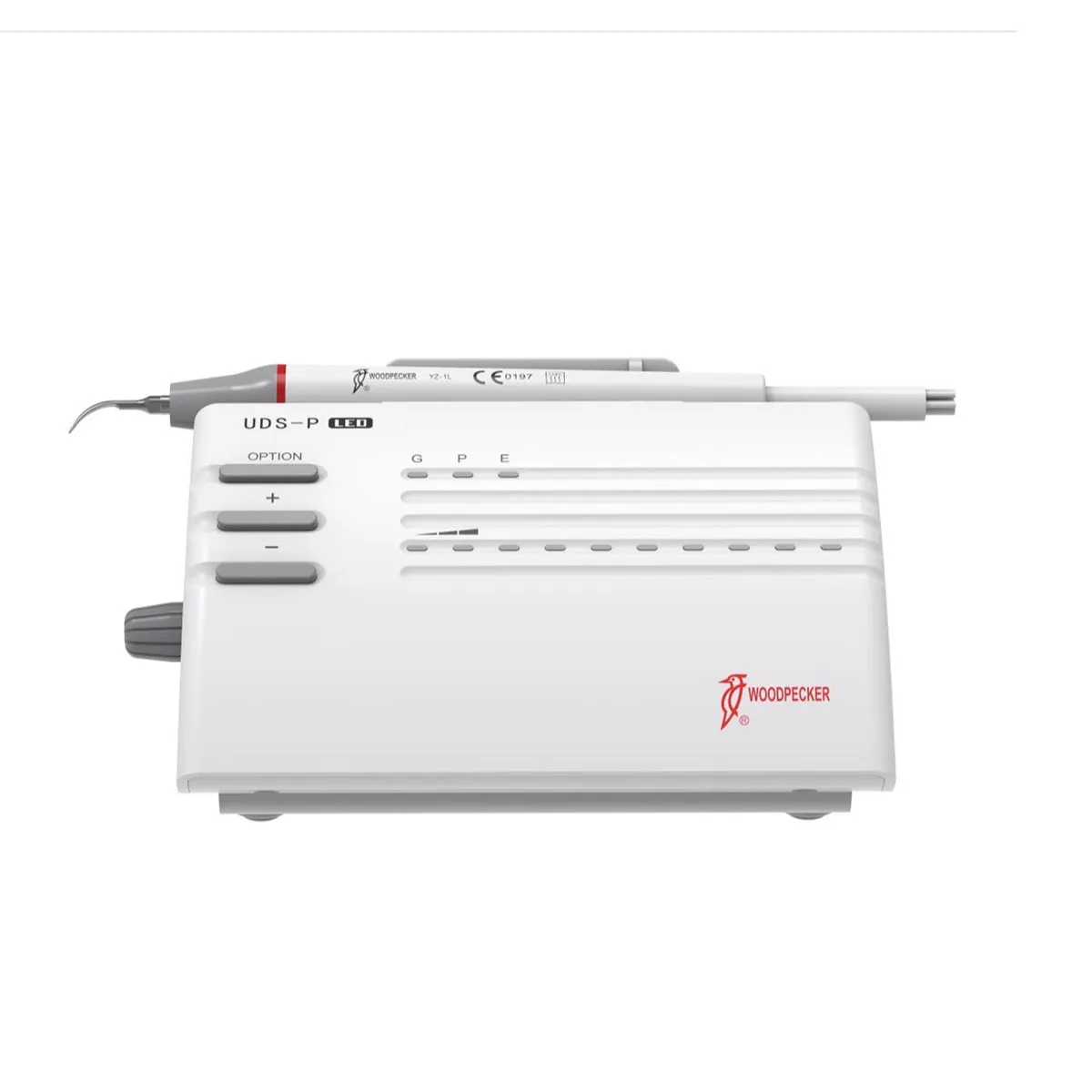

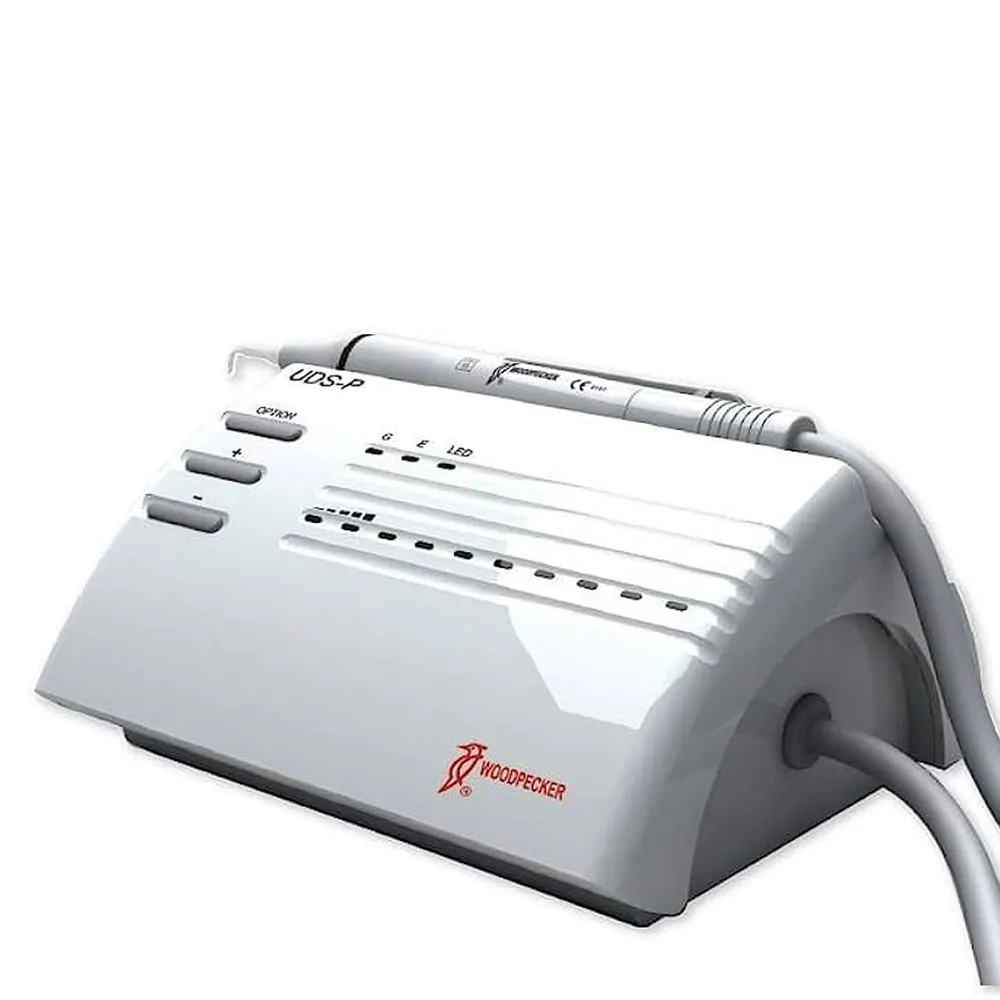

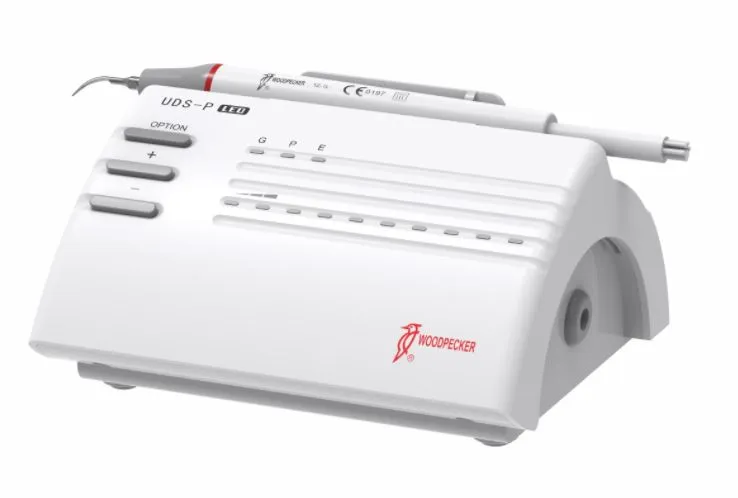

Woodpecker UDS - P LED Ultrasonic Scaler

The UDS-P LED dental scaler stands out as an advanced, detachable, and autoclavable handpiece, operating at an optimal frequency to ensure consistent performance. Its digital controls and high efficiency make it a top choice in the dental industry. Equipped with automatic frequency tracking, easy operation, and a power range of 3W to 20W, it offers both convenience and precision during scaling procedures. The scaler also meets safety standards with its Class II electric shock protection and protection against water ingress, ensuring reliability for dental professionals.

Moreover, the scaler features an endo function for efficient root canal treatments, with adjustable power levels. Its detachable handpiece can be sterilized at high temperatures and pressures to prevent cross-contamination, emphasizing hygiene. Proper sterilization protocols, cleanliness maintenance, and adherence to safety measures outlined in the user manual are crucial for safe and effective use of the equipment.

The technical specifications of the UDS-P LED scaler further demonstrate its advanced capabilities, with an output vibration excursion of less than 100μm and a half-excursion force of less than 2N, providing controlled and gentle scaling movements.

Features

• Multi-functional: Performs scaling, perio, and endo procedures.
• Optical handpiece for improved clinical convenience.
• Detachable handpiece autoclavable up to 135℃ and 0.22MPa.
• Constructed from Titanium alloy for durability and optimal mechanical performance.
• Cable made of soft and durable silica gel tube.
• Special material scaling tip with cavitation for efficient teeth cleaning.
• Effectively removes dental calculus, bacterial plaque, and tea stains without harming gums or enamel.
• Automatic frequency tracking ensures stable and consistent performance.
• Digitally controlled for easy operation and enhanced scaling efficiency.
• Compatible with EMS; connects to EMS handpiece or Woodpecker UDS handpiece control box.
• Certified by CE and FDA for quality and safety standards.

Specifications

• Power input         110V~ 50Hz/60Hz    220 - 240V~  50Hz/60Hz
• Main unit input     24V~   l.3A
• Output power       3W ~ 20W
• Frequency           28kHz ± 3kHz
• Water pressure    0.1bar ~ 5bar(0.01MPa ~ 0.5MPa)
• Main unit weight   0.68kg
• Adapter weight     1.2kg
• Dimensions         178mm×145mm×89mm

Packaging

• 1 x Main unit
• 1 x Handpiece
• 1 x Foot switch
• 6 x Tip
• 1 x Adapter
• 1 x Torque wrench
• 1 x Operation manual

Driection to Use

• Ensure the power supply input is within the range of 220-240V~ 50Hz/60Hz 150mA.
• Connect the main unit input to a 24V~ 50Hz/60Hz 1.3A power source.
• Attach the handpiece securely and ensure it is detachable for sterilization.
• Before each treatment, sterilize the handpiece, scaling tip, torque wrench, endo wrench, and endochuck using recommended autoclaving methods.
• Install the scaling tip by holding the handpiece and turning the tip in the specified direction using the torque wrench.
• After each treatment, sterilize the handpiece separately, ensuring the scaling tip and endo chuckare unscrewed.
• Allow the handpiece to cool naturally before the next use to prevent scalding.
• Maintain a continuous water flow during operation to keep the scaling tip cool and efficient.
• Operate the scaler in continuous mode, adjusting the power gradually according to treatment needs.
• Follow proper sterilization protocols, including using sterile gauze or bags for packaging the handpiece, and avoid forbidden sterilization methods such as boiling or using disinfectors like iodine or alcohol.
• Regularly check the handpiece for any damage or wear, lubricate the "O" rings with dental lube, and keep the connector and cable socket dry.
• Prioritize cleanliness by cleaning the scaler before and after each operation to ensure optimal performance and infection control.

Warranty

The manufacturer/importer provides a 5-year warranty for the PCB (Power Circuit Board) starting from the date of the invoice, and a 12-month warranty covers all other parts of the product, excluding physical damage. Service and warranty matters for this product are directly managed by the manufacturer/importer.

Sudenkart is not responsible for replacing products; this responsibility falls on the manufacturer/importer. Both Sudenkart and the buyer agree that any warranties for the products are solely provided by the original manufacturer/importer. Claims for returns and replacements must be directed to the relevant manufacturer/importer, although Sudenkart may aid customers in requesting product servicing or replacements.

The buyer understands that once products are sold, they cannot be exchanged or returned unless the package seal or product remains intact and unaltered.
