Woodpecker UDS-P Ultrasonic Piezo Scaler

The Woodpecker UDS-P Ultrasonic Scaler is a versatile dental tool designed to efficiently clean teeth and perform root canal treatments effectively. It employs advanced ultrasonic technology to eliminate plaque, calculus, and stains from teeth, ensuring a thorough cleaning experience. The scaler operates using a piezoelectric transducer that converts electrical energy into mechanical vibrations, which are then transmitted to the scaling tip, generating high-frequency ultrasonic oscillations. Typically set at 28kHz, these oscillations effectively disintegrate and remove dental deposits from tooth surfaces.

An exceptional feature of the Woodpecker UDS-P Ultrasonic Scaler is its automatic frequency tracking capability. This innovative technology enables the device to adapt and optimize the frequency based on scaling load conditions, ensuring consistent operation at the ideal frequency for precise and efficient scaling, thus maintaining optimal performance.

The scaler includes a detachable handpiece that easily connects to the main unit and can undergo autoclaving for sterilization, promoting excellent infection control practices and maintaining a hygienic treatment environment. Its digital control system enhances functionality and usability, allowing dentists to adjust power output and scaling settings for precise and customized treatments. Operating on a wide voltage range, it is suitable for use in regions with varying power systems. Additionally, the foot switch provides hands-free control, enabling dentists to focus on treatment without interruptions.

Features

• Functions for multiple tasks: Scaling, Perio, and Endo.
• The handpiece is removable and can withstand autoclaving at 135℃ and 0.22MPa.
• Effectively removes dental calculus, bacterial plaque, and tea stains from teeth quickly and without harming gums or enamel.
• Automatic frequency tracking ensures the machine consistently operates at the optimal frequency for steady performance.
• Controlled digitally for ease of operation and improved scaling efficiency.
• Certified by CE and FDA.

Specifications

• Power Source Output: 110V to 240V~ (50Hz/ 60Hz) 1.2A (max)
• Main unit input: 30VDC    1.3A
• Output Primary tip Vibration excursion: ≤100 μm
• Output half-excursion force:
• Output tip Vibration frequency: 28kHz± 3kHz
• Output Power: 3W to 20W
• Main Unit Fuse: 250VT 2.0AL
• Water Pressure: 0.1bar to 5bar (0.01MPa to 0.5MPa)
• Main Unit Weight: 0.68kg
• Power Source Weight: 0.3Kg
• Power source input: 100V to 240V~ 50Hz/60Hz 1.2A (max)

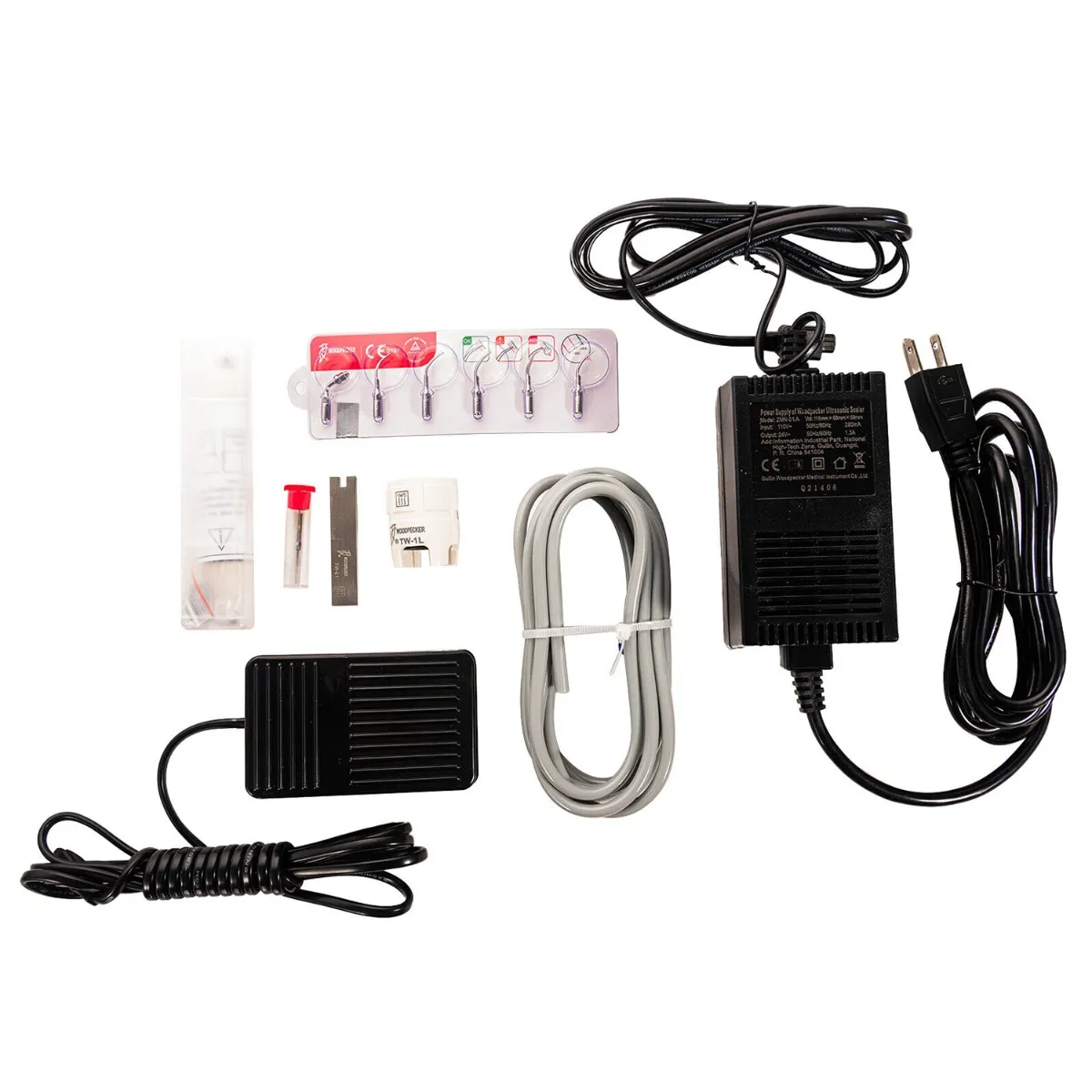

Packaging

• 1 x Main unit
• 1 x Handpiece
• 1 x Foot switch
• 6 x Tips
• 1 x Adapter
• 1 x Torque wrench
• 1 x Operation manual

Driection to Use

• Unpack the equipment and ensure that all parts and accessories are complete as per the packing list.
• Place the main unit on a stable surface.

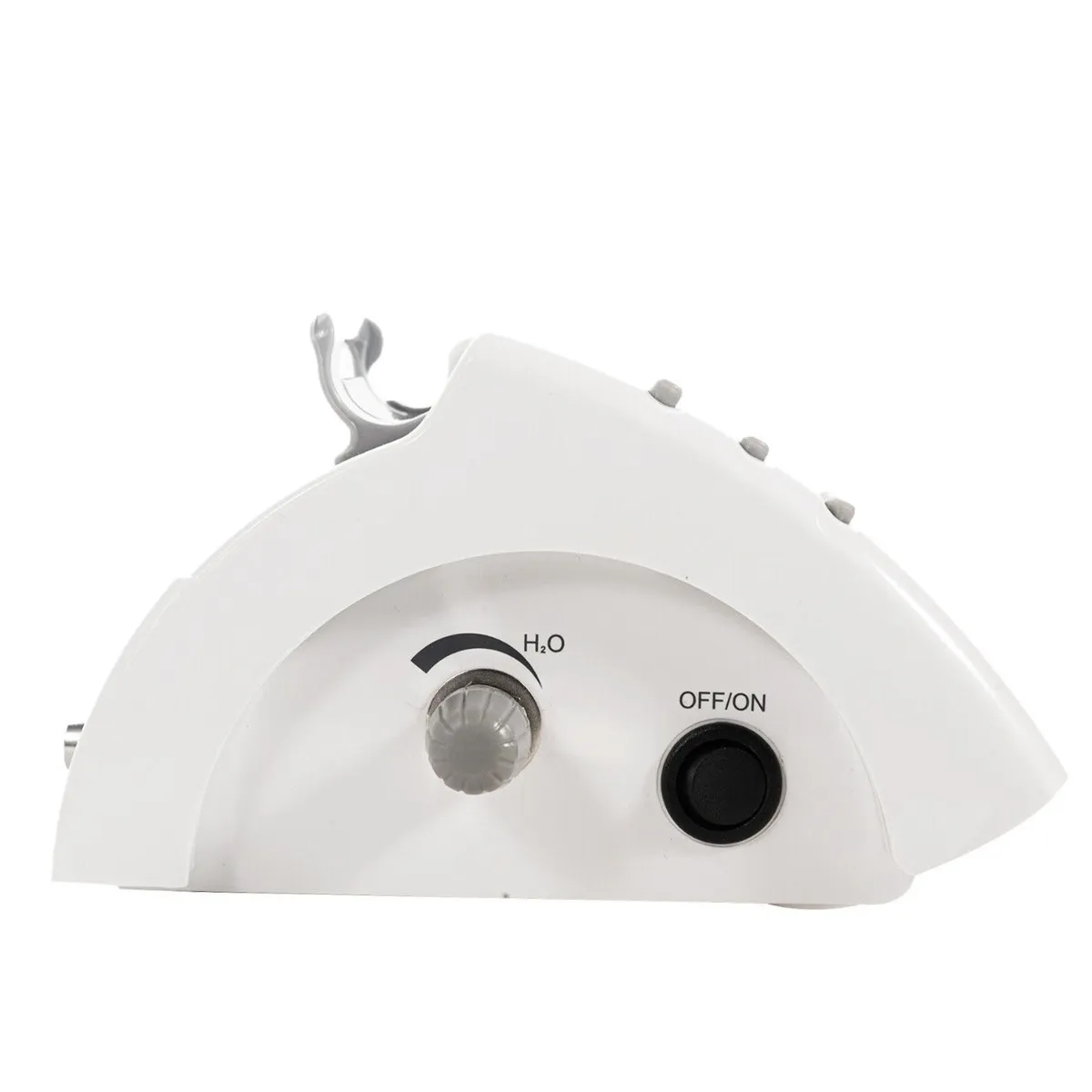

• Turn the water control switch to the maximum position based on the symbol indicated.
• Insert the plug of the foot switch into its socket.

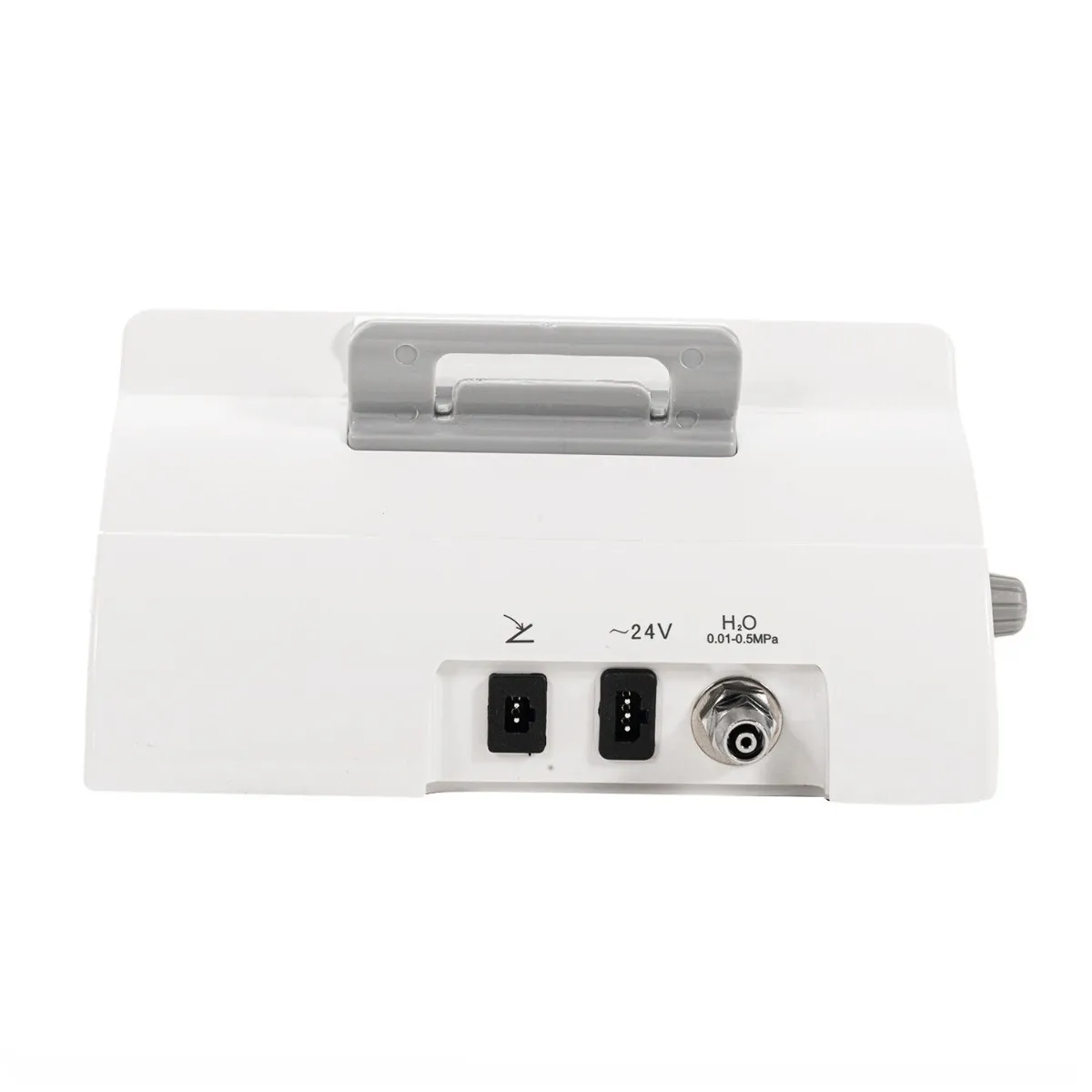

• Connect one end of the water pipe to the water entrance of the scaler and the other end to a pure water source.
• Select a suitable scaling tip and screw it tightly onto the handpiece using the torque wrench. Make sure to connect the handpiece and the cable connector correctly.
• Insert the plug of the power source into its socket and turn on the power.

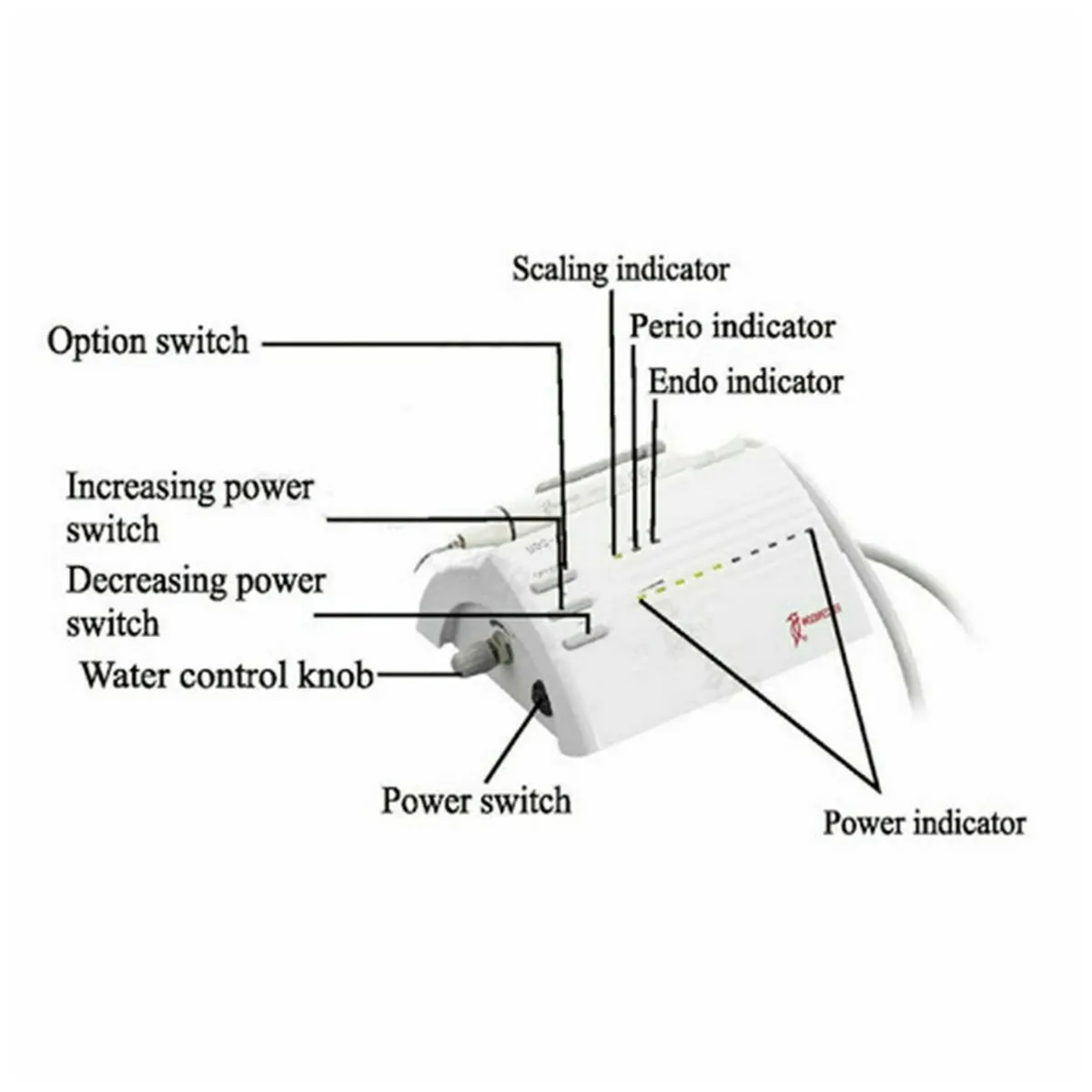

• Switch on the main unit. The scaling indicator and the first five lights of the power regulator should illuminate.
• Ensure that the scaling tip does not touch the teeth vertically or exert excessive pressure on the tooth surface to avoid damage. Use a light touch and a gentle back-and-forth motion to remove tartar.
• Adjust the vibration intensity as needed by turning the vibration intensity knob to the middle grade. Use caution not to harm the teeth or the tip.
• After completing the scaling operation, keep the machine working for 30 seconds with water supply to clean the handpiece and scaling tip.
• Unscrew the scaling tip and remove the handpiece for sterilization. Do not remove the handpiece while the machine is still running.

Warranty

The manufacturer/importer provides a 5-year warranty for the PCB (Power Circuit Board) starting from the date of the invoice, and a 12-month warranty covers all other parts of the product, excluding physical damage. Service and warranty matters for this product are directly managed by the manufacturer/importer.

Sudenkart is not responsible for replacing products; this responsibility falls on the manufacturer/importer. Both Sudenkart and the buyer agree that any warranties for the products are solely provided by the original manufacturer/importer. Claims for returns and replacements must be directed to the relevant manufacturer/importer, although Sudenkart may aid customers in requesting product servicing or replacements.

The buyer understands that once products are sold, they cannot be exchanged or returned unless the package seal or product remains intact and unaltered.
