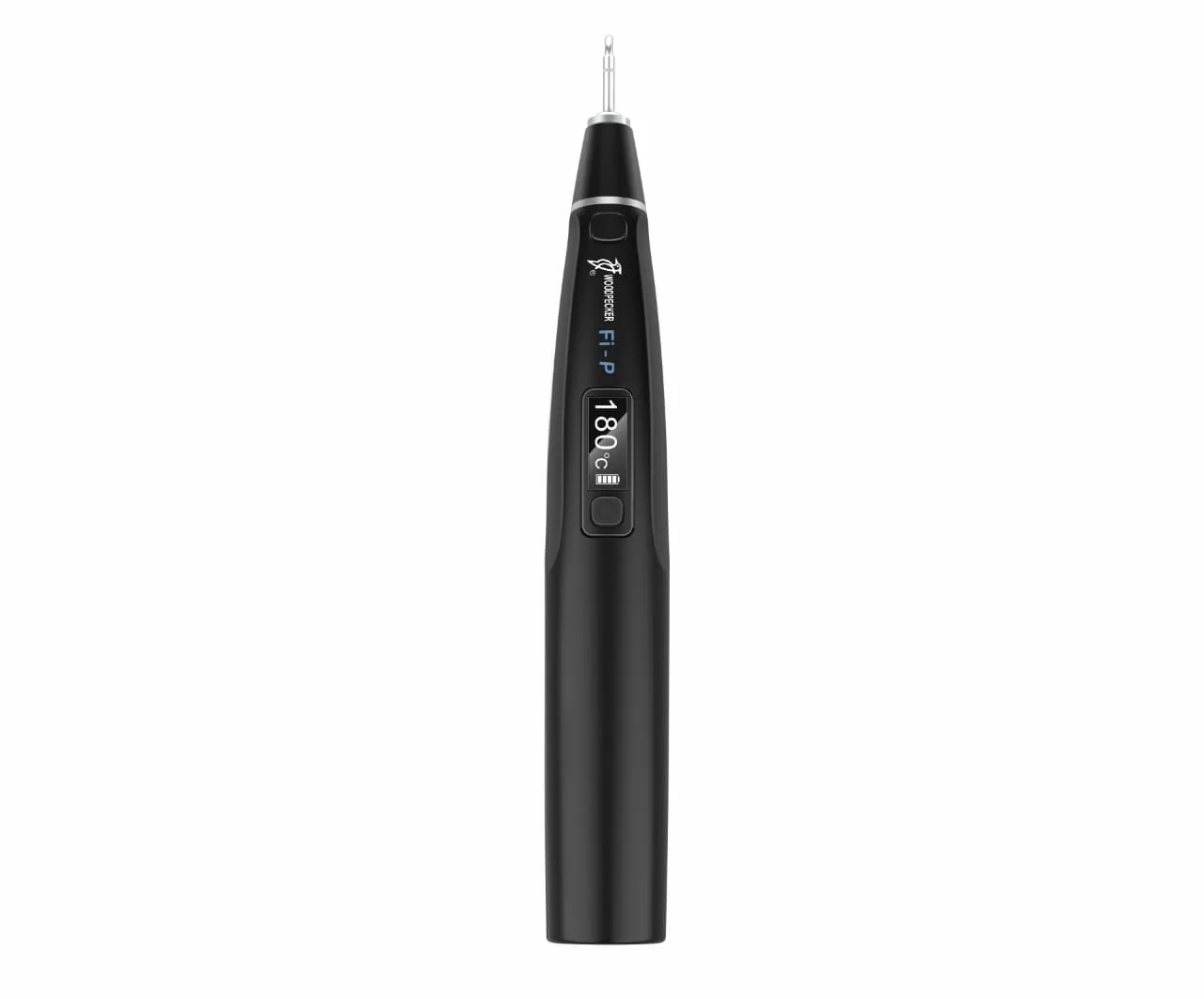

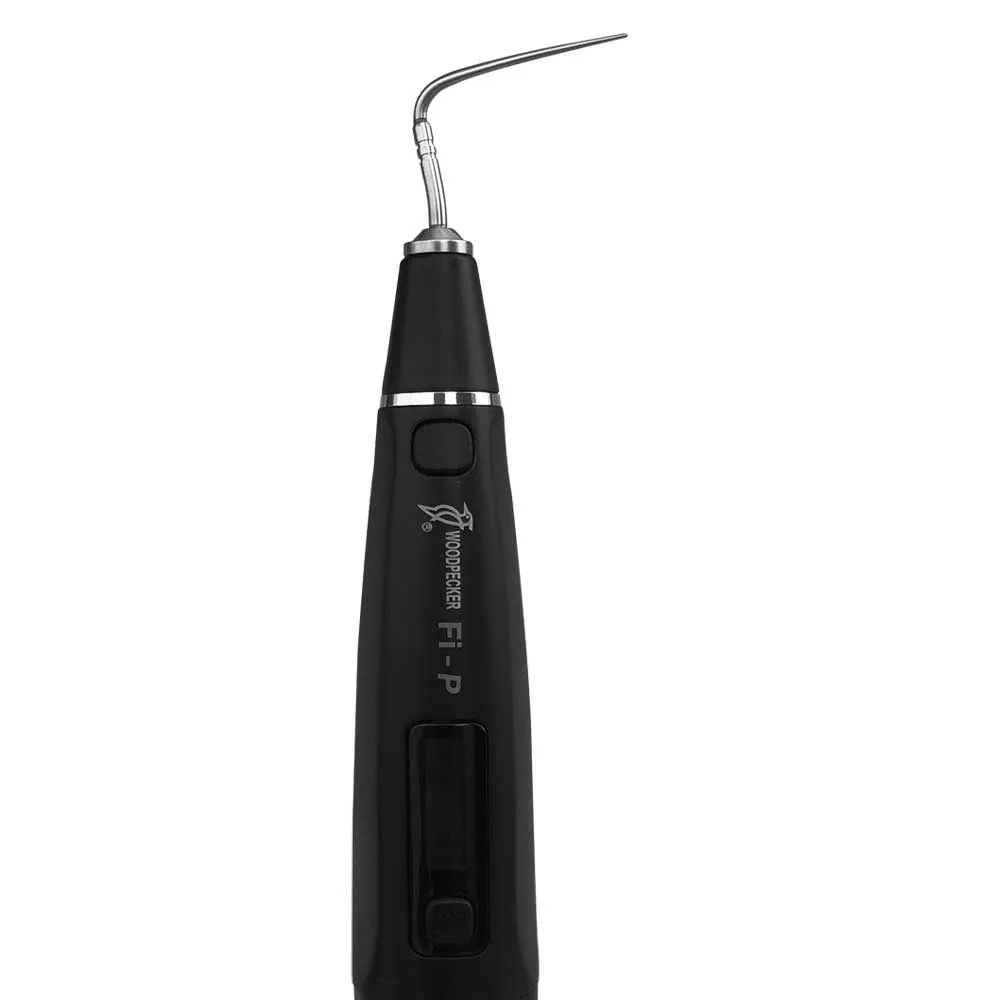

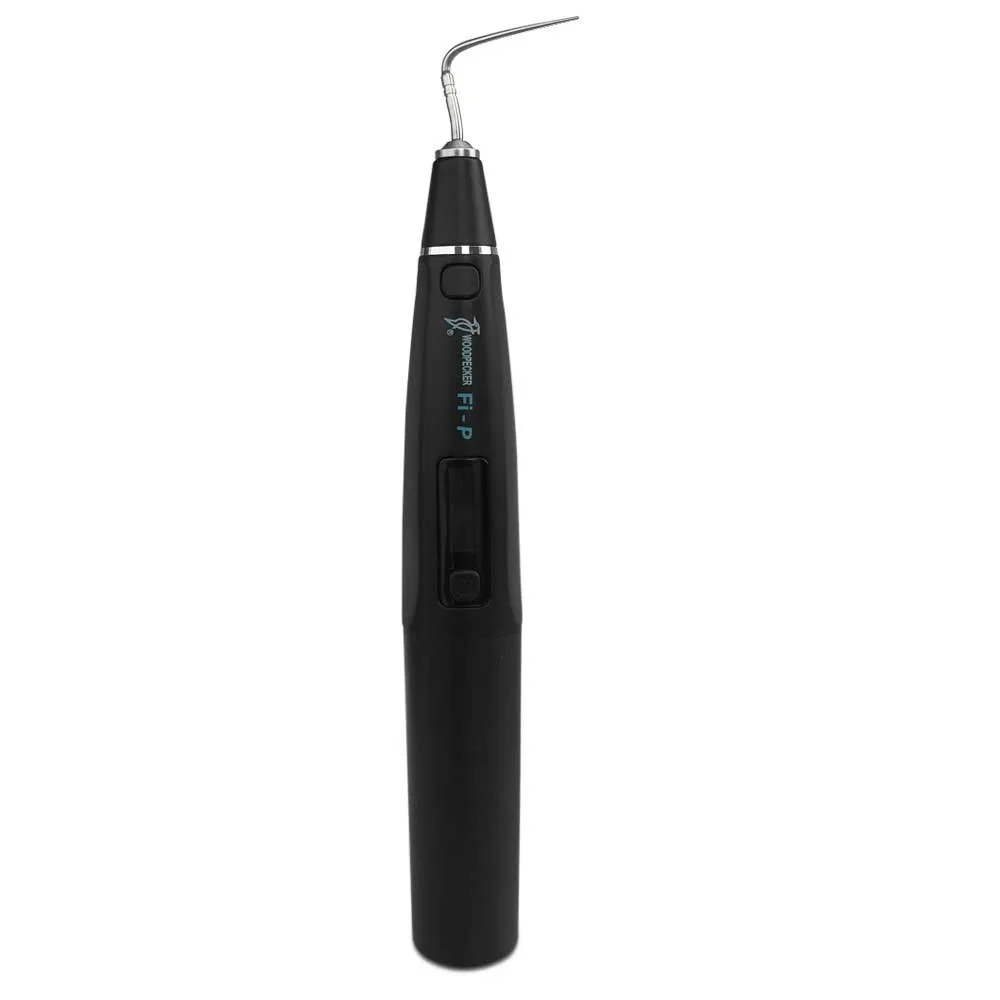

Woodpecker Obturation Pen System for warm vertical compaction

The Woodpecker Obturation Pen System is a versatile instrument utilized in endodontic treatments to facilitate efficient obturation of root canals. It assists in the placement and sealing of gutta-percha, a commonly used thermoplastic material in root canal procedures. With its ergonomic design and user-friendly features, this system provides improved precision and control during the obturation process.

The operation of the Woodpecker Obturation Pen System involves heating, cutting, and packing mechanisms to achieve optimal root canal obturation. Initially, the system prepares gutta-percha points selected according to the root canal's requirements, allowing for customized fitting within the canal.

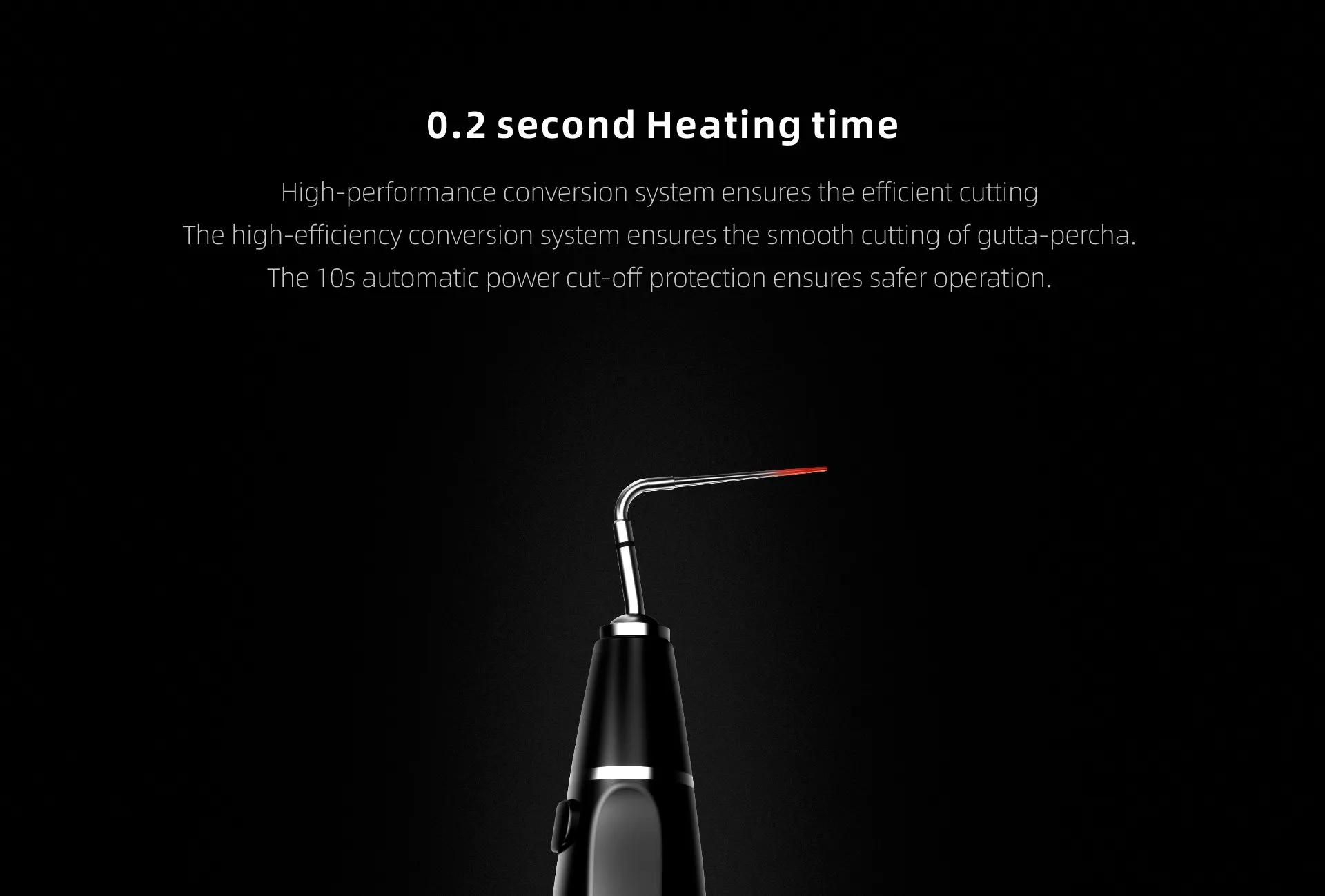

The heating mechanism softens the gutta-percha, making it pliable and easier to handle during placement. Temperature settings can be adjusted as needed for the procedure. Once softened, the gutta-percha is carefully positioned within the root canal, ensuring complete coverage and sealing of the canal walls.

Furthermore, the Woodpecker Obturation Pen System includes a cutting mechanism to trim excess gutta-percha, ensuring a tidy and precise obturation. It aids in removing any obstructions or irregularities within the canal, resulting in a smooth and uniform seal. Additionally, the packing mechanism helps compact the gutta-percha, ensuring a tight seal and filling any gaps or voids for optimal canal sealing.

Features

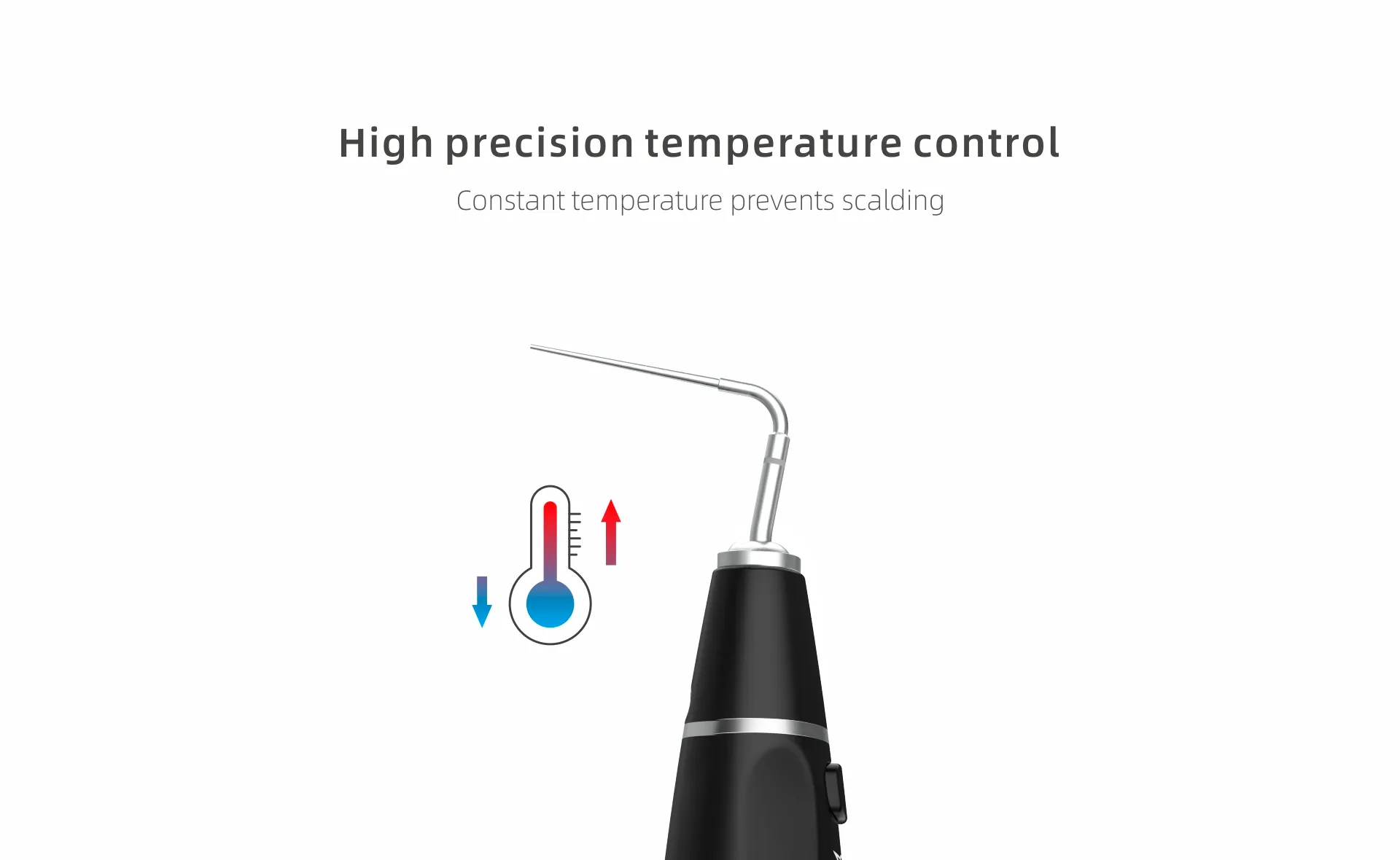

• Precise and efficient heating for optimal root canal filling.
• Optional preset temperatures for customizable heating.
• Intuitive interface with user-friendly controls.
• Portable and rechargeable design for convenience.

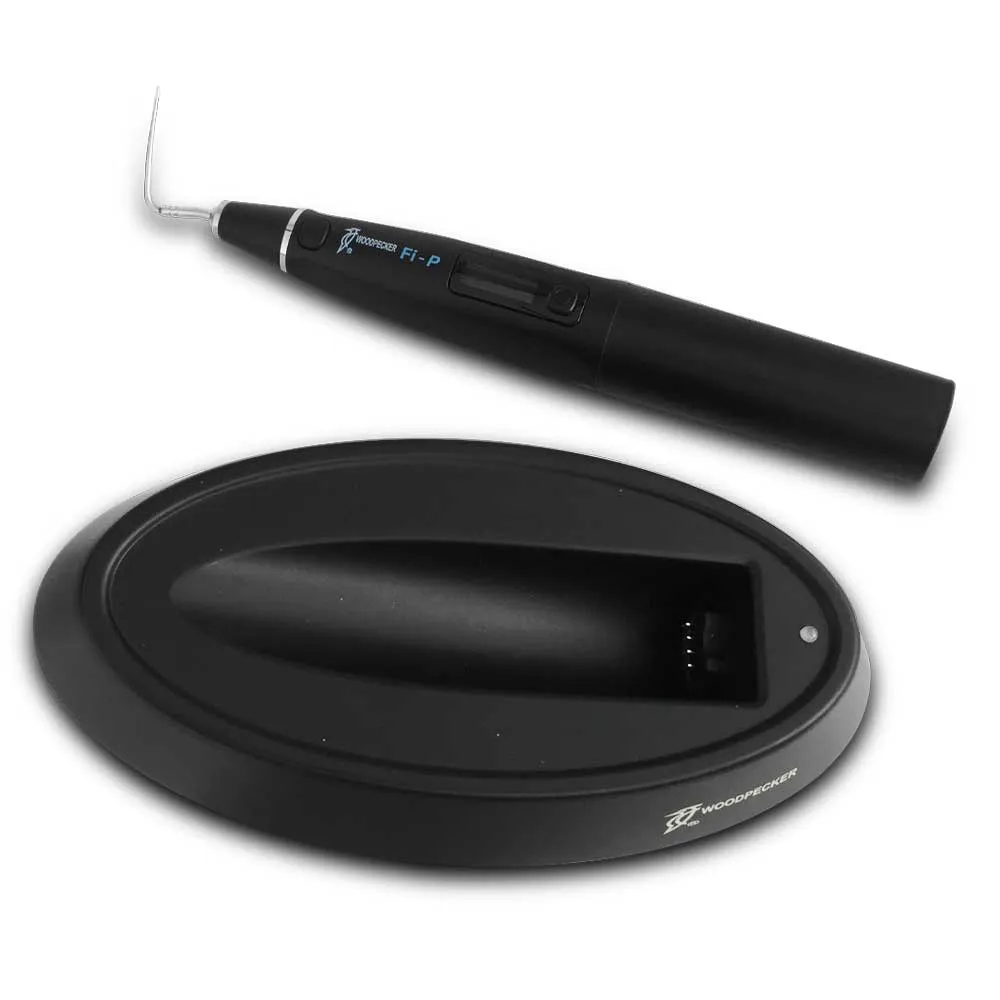

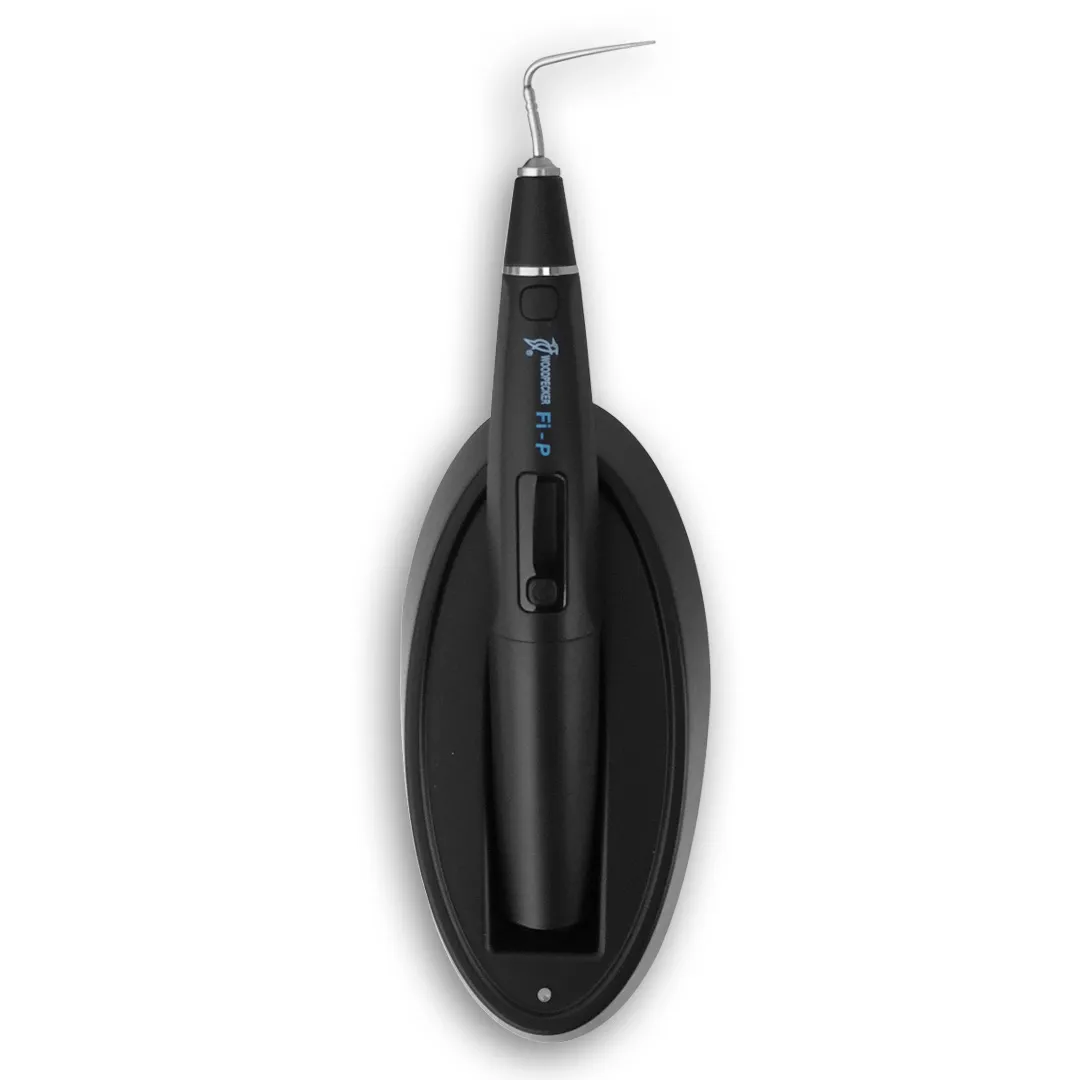

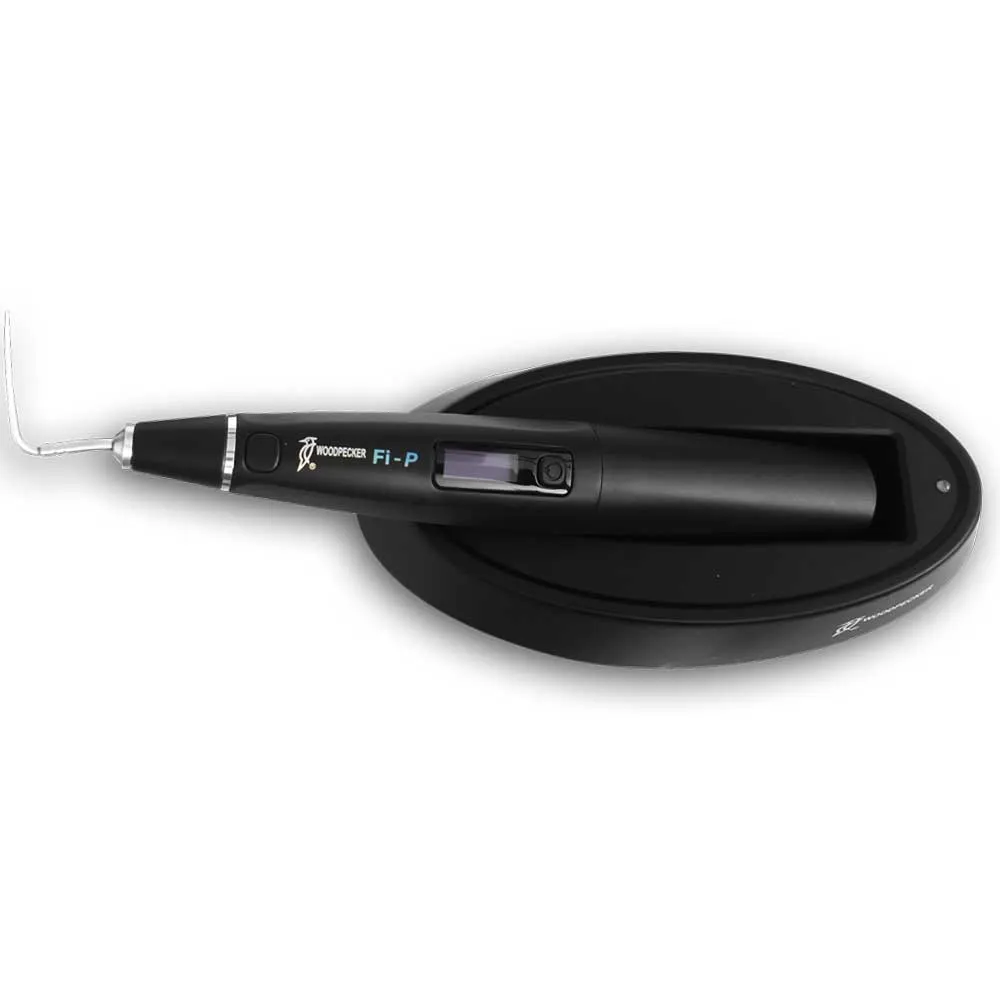

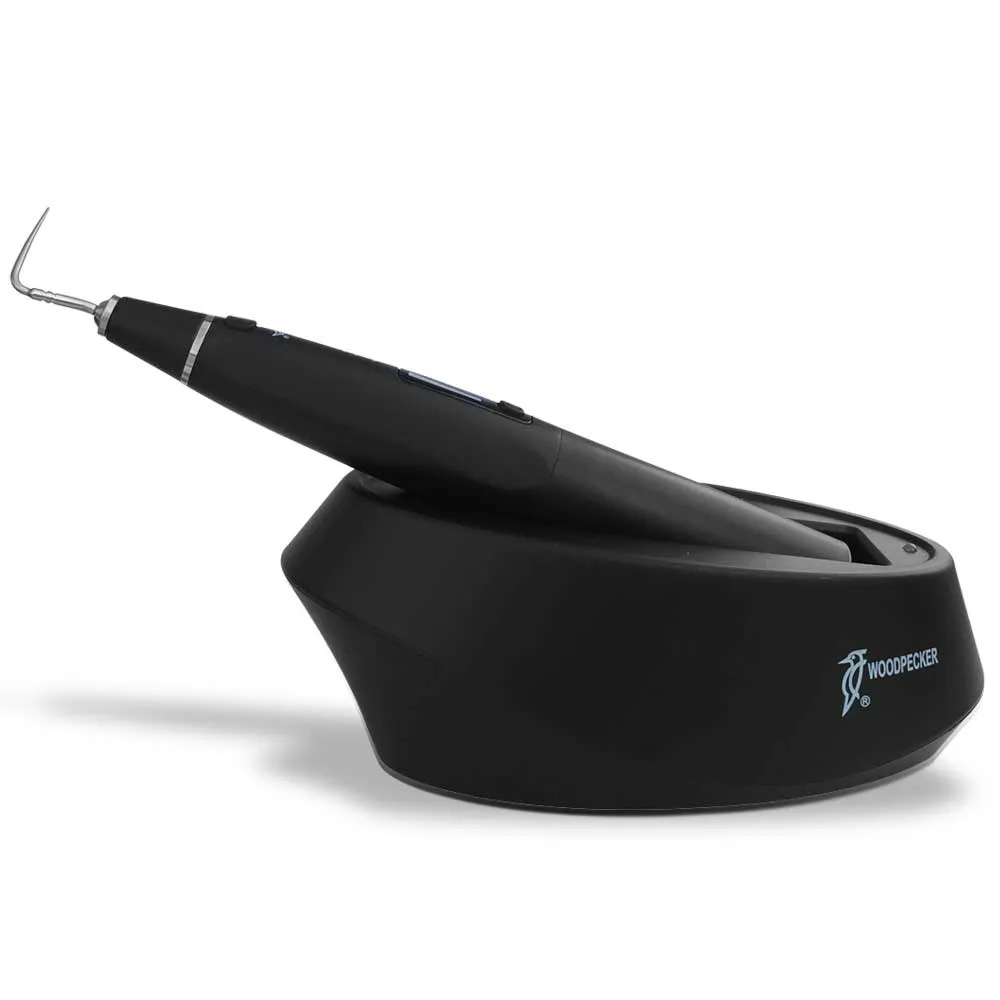

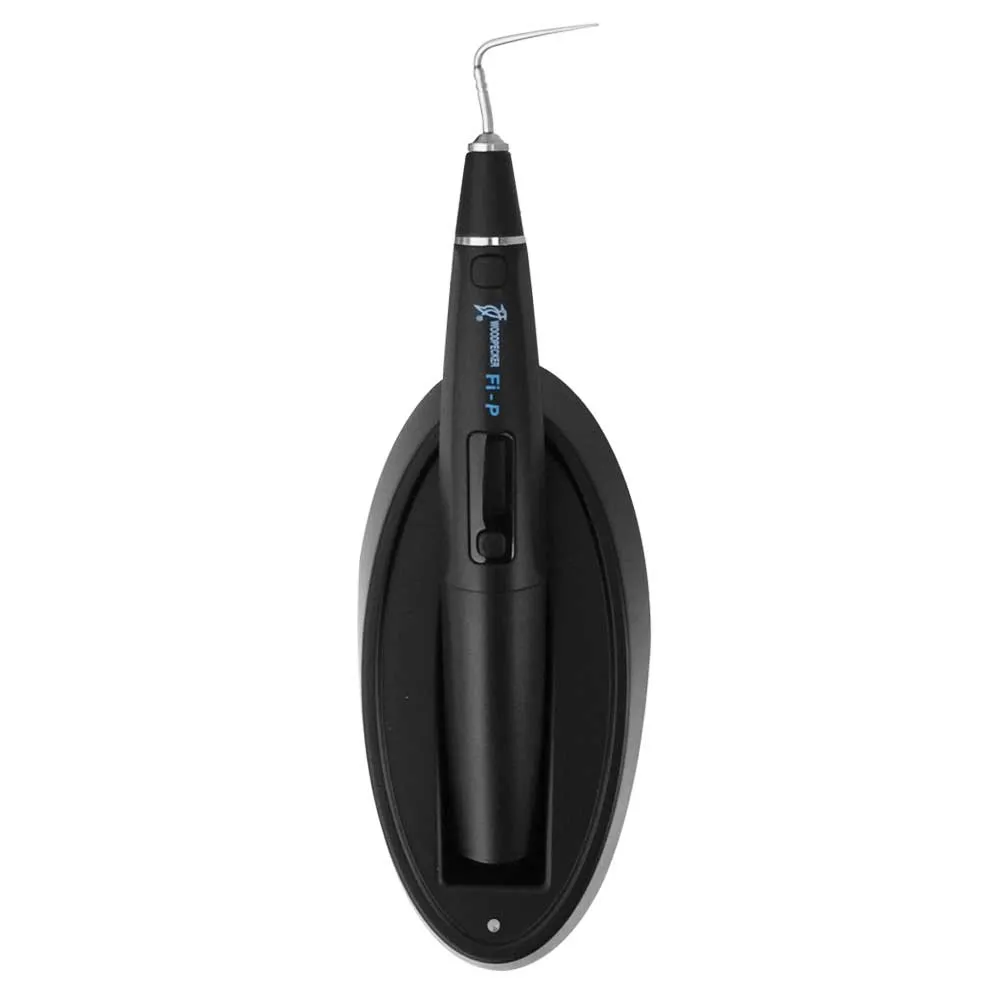

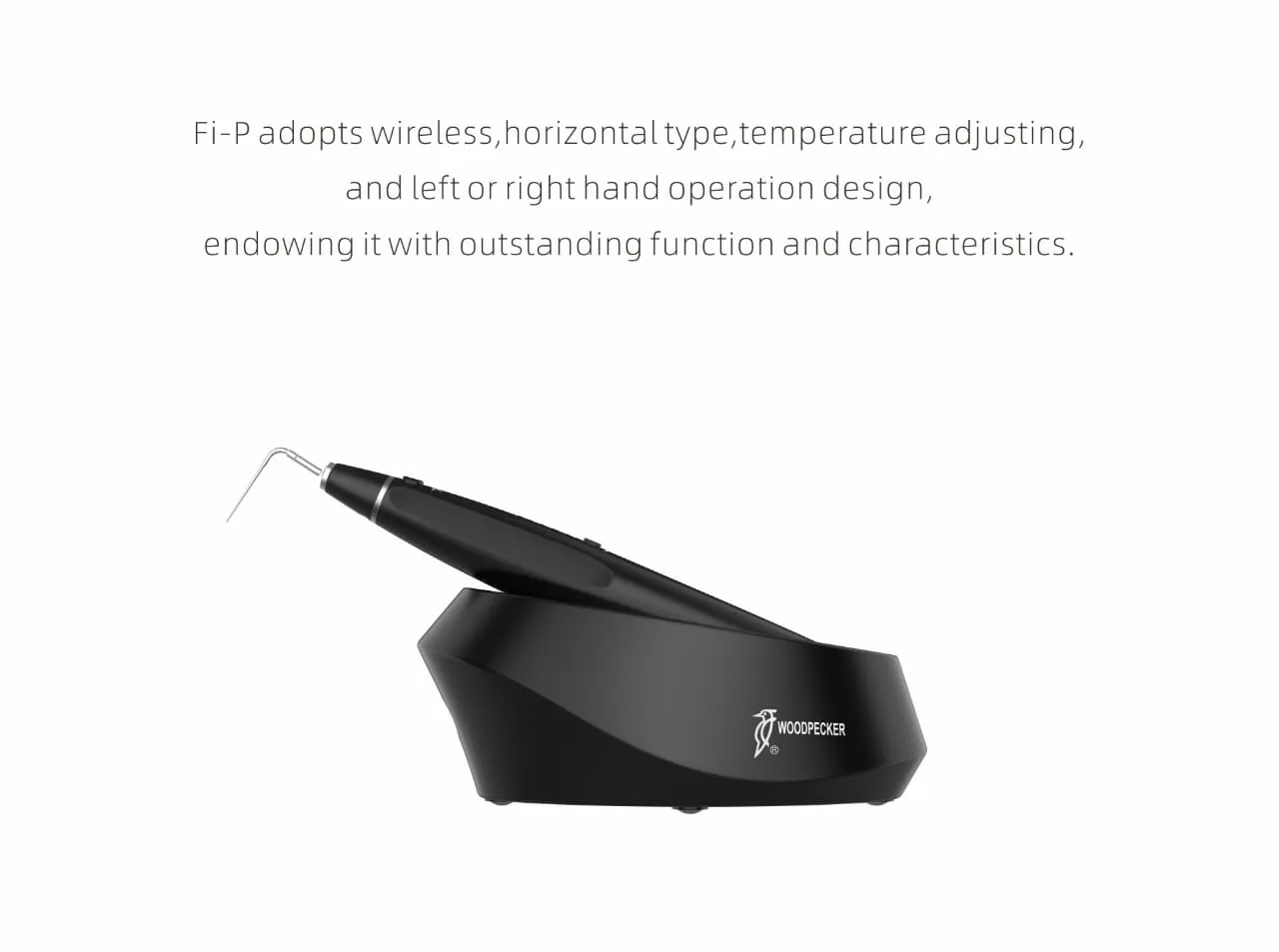

• Dedicated charging base for secure storage and charging.
• Safety classification and durable construction.
• Versatile application for various endodontic procedures.

Specifications

Size:

• Heating and Packing Instrument: 23.8mm × 158.3mm × 23.8mm
• Charging base: 75.5mm × 149.7mm × 62.6mm

Weight:

• Heating and Packing Instrument: 80g
• Charging base: 195g
• Power adapter: 167g

Technical Parameters:

• Classification: Class Ⅱ (AC/DC power adapter)

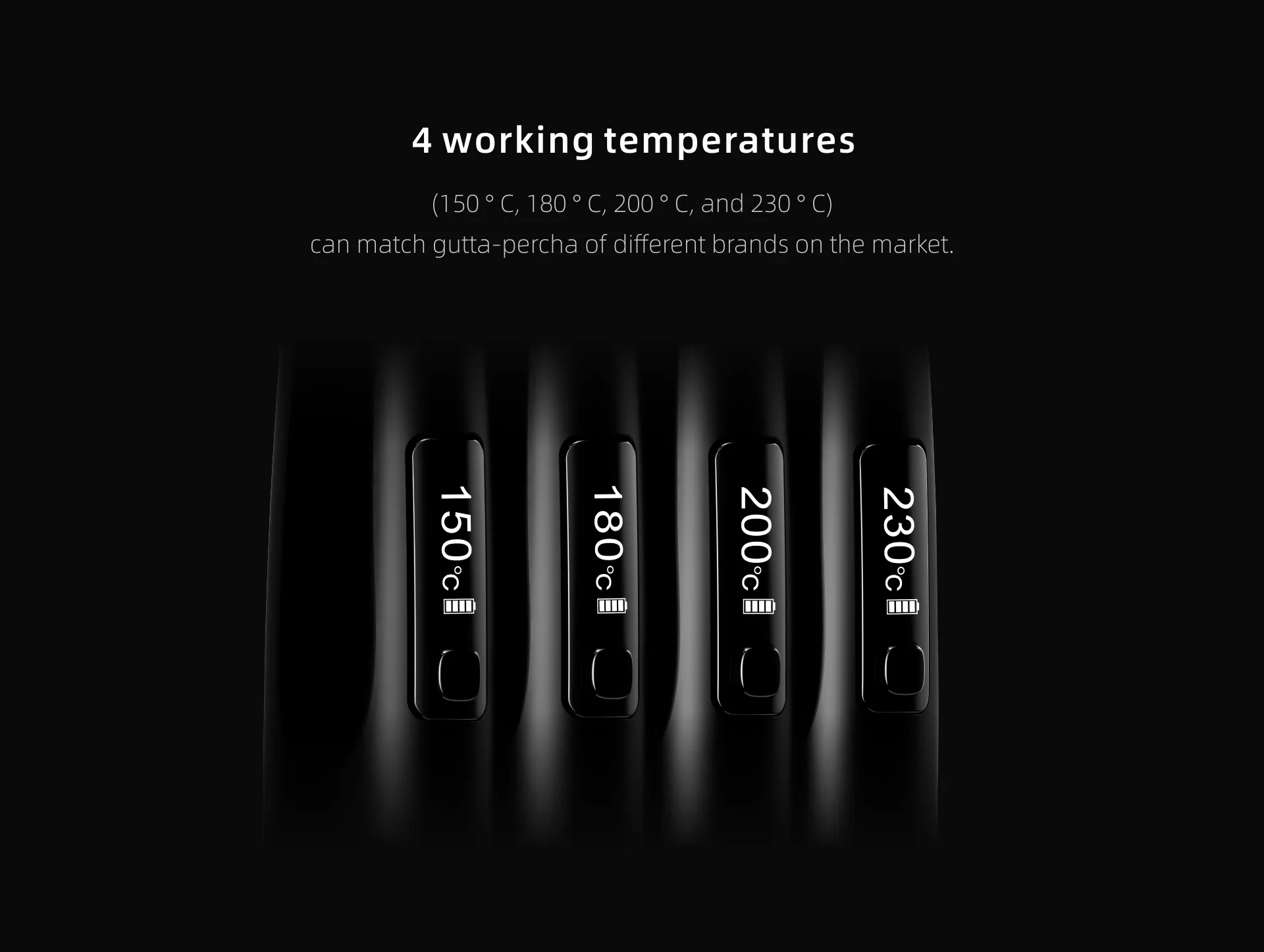

• Optional preset temperatures: 150℃ → 180℃ → 200℃ → 230℃
• Time consumption for charging: About 2.5 hours
• Power supply:
  • Input: AC100V-240V, 50/60Hz, 800mA
  • Output: DC15V/1.6A
• Battery capacity: Chargeable battery with 2000mAh capacity

Packaging

• 1 x Main unit
• 1 x Charging stand
• 1 x Power adapter
• 1 x WP4004 tip (Taper 4%)
• 1 x WP4504 tip (Taper 4%)
• 1 x WP5506 tip (Taper 6%)
• 1 x WP5508 tip (Taper 8%)
• 4 x Heat insulation sleeve of tips
• 1 x Instruction manual

Driection to Use

Charging:

•
  • Connect the power adapter to the charging base.
  • Plug the power adapter into a power outlet.
  • Place the Heating and Packing Instrument onto the charging base. Ensure it is properly aligned for charging.
  • Allow the instrument to charge for approximately 2.5 hours until fully charged. The charging indicator will show when the charging is complete.

Powering On:

•
  • Once the instrument is fully charged, remove it from the charging base.
  • Press and hold the power button on the instrument to power it on. The display will illuminate, indicating that it is ready for use.

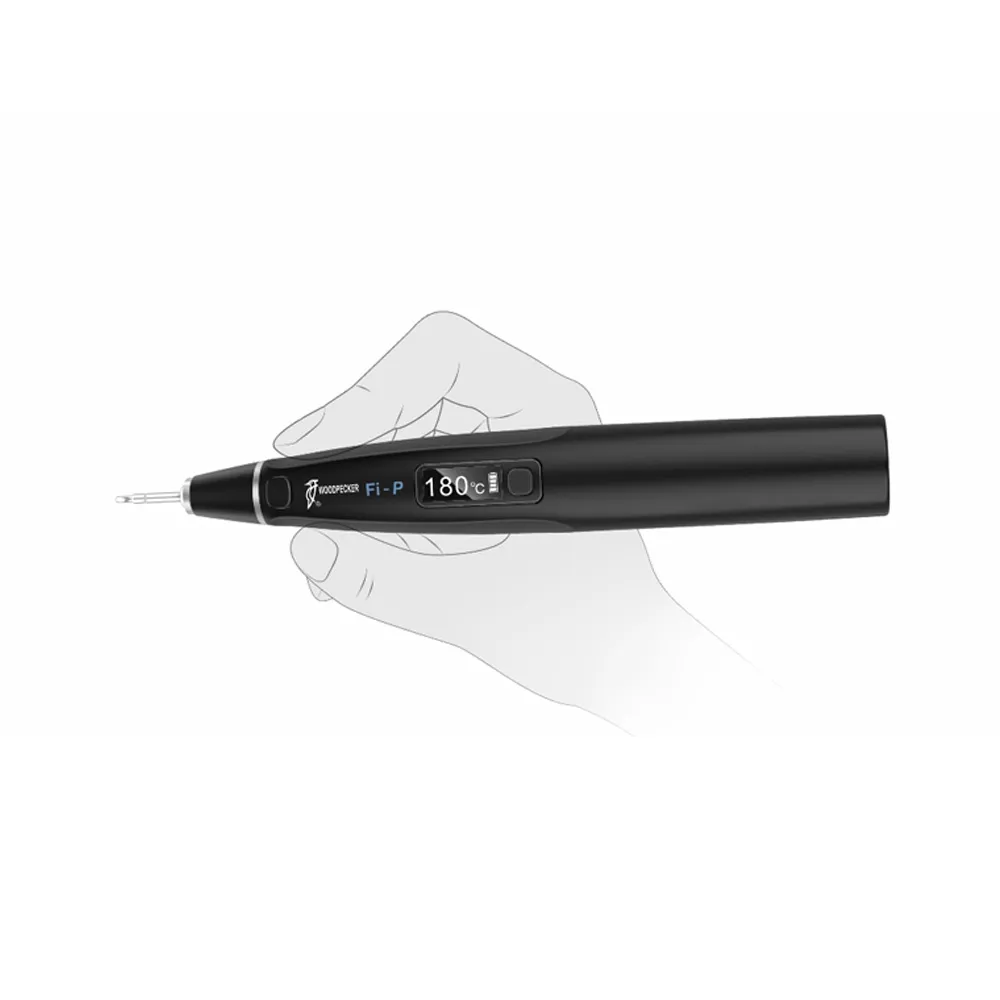

Temperature Selection:

•
  • Use the temperature control buttons to select the desired temperature. The optional preset temperatures are 150℃, 180℃, 200℃, and 230℃.
  • Press the temperature control buttons to increase or decrease the temperature. The selected temperature will be displayed on the screen.

Obturation Procedure:

•
  • Ensure that the instrument's heating tip is clean and free from any debris or material remnants.
  • Insert the heated tip into the obturation material, such as gutta-percha.
  • Allow the tip to heat the material for a few seconds to soften it.
  • Carefully apply the softened material into the root canal, using a gentle and controlled motion.
  • Continue the obturation process, filling the canal as required. Adjust the temperature if necessary, based on the specific requirements of the procedure.

Powering Off and Cleaning:

•
  • After completing the obturation procedure, press and hold the power button to turn off the instrument.

Warranty

The manufacturer/importer provides a 5-year warranty for the PCB (Power Circuit Board) starting from the date of the invoice, and a 12-month warranty covers all other parts of the product, excluding physical damage. Service and warranty matters for this product are directly managed by the manufacturer/importer.

Sudenkart is not responsible for replacing products; this responsibility falls on the manufacturer/importer. Both Sudenkart and the buyer agree that any warranties for the products are solely provided by the original manufacturer/importer. Claims for returns and replacements must be directed to the relevant manufacturer/importer, although Sudenkart may aid customers in requesting product servicing or replacements.

The buyer understands that once products are sold, they cannot be exchanged or returned unless the package seal or product remains intact and unaltered.
