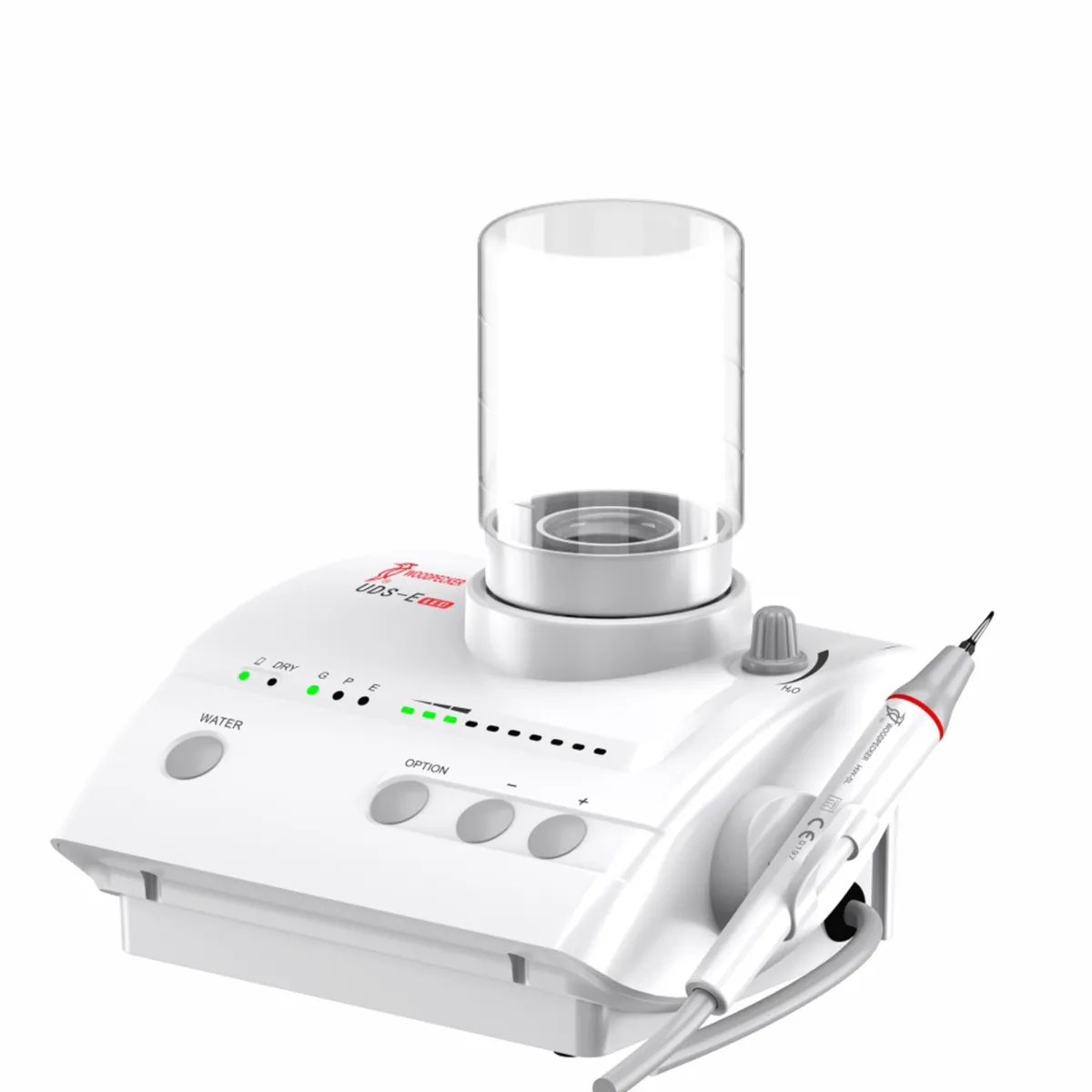

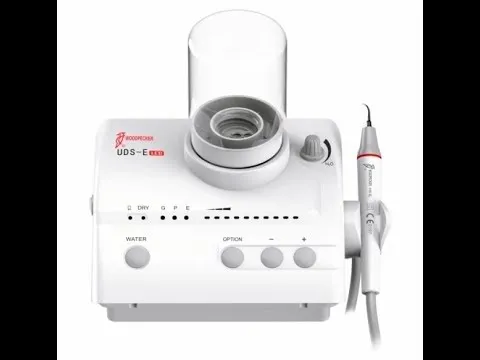

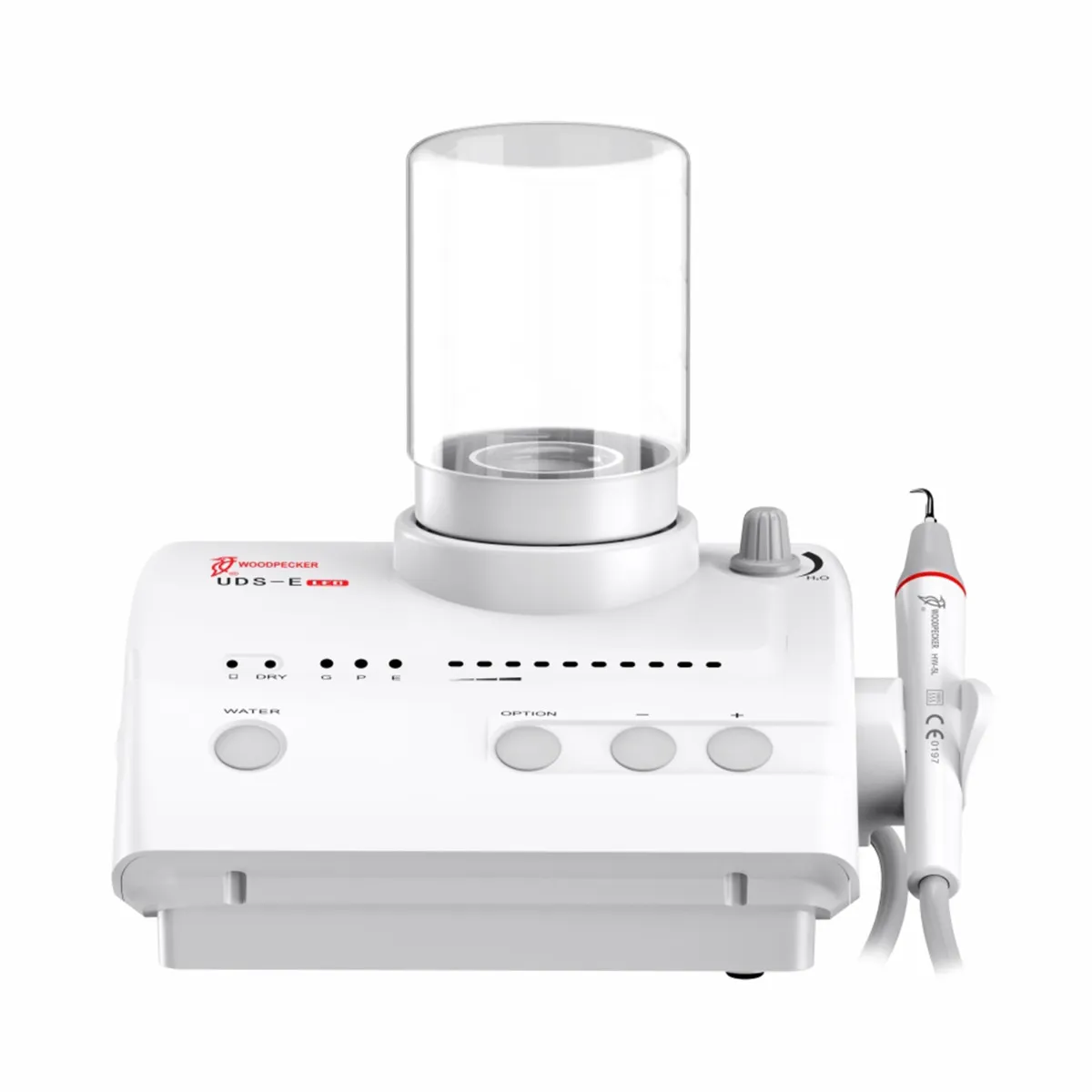

Woodpecker UDS-E Led Ultrasonic Scaler

The UDS-E LED Ultrasonic Scaler is an advanced dental device crafted to deliver efficient and effective teeth cleaning and treatment for dental diseases. Manufactured by Woodpecker, this multi-function scaler operates in three modes: general, perio, and endo, with an automatic frequency tracking system. Its optical handpiece enhances convenience during clinical procedures, ensuring easy handling and precise operation. Additionally, the scaler boasts an auto-water supply function that simplifies processes and improves usability.

A noteworthy feature of the UDS-E LED scaler is its inner water pipe made from antiseptic material, allowing compatibility with various clinical fluids like hydrogen peroxide, chlorhexidine, and sodium hypochlorite via the auto-water supply system. This significantly enhances the performance of perio and endo procedures. The detachable handpiece of the scaler can be autoclaved at temperatures up to 134°C and pressures up to 0.22MPa, ensuring proper sterilization and hygiene adherence as per dental practice standards.

Another standout feature is the automatic frequency tracking system, ensuring stable and reliable performance throughout dental procedures by maintaining the optimal frequency. With its state-of-the-art features and functionality, the UDS-E LED scaler marks a new era of dental instruments globally, catering to the needs of dental professionals by offering exceptional performance, convenience, and reliability.

Features

• Multi-function scaler with three modes: general, perio, and endo.
• Automatic frequency tracking system for stable and reliable performance.

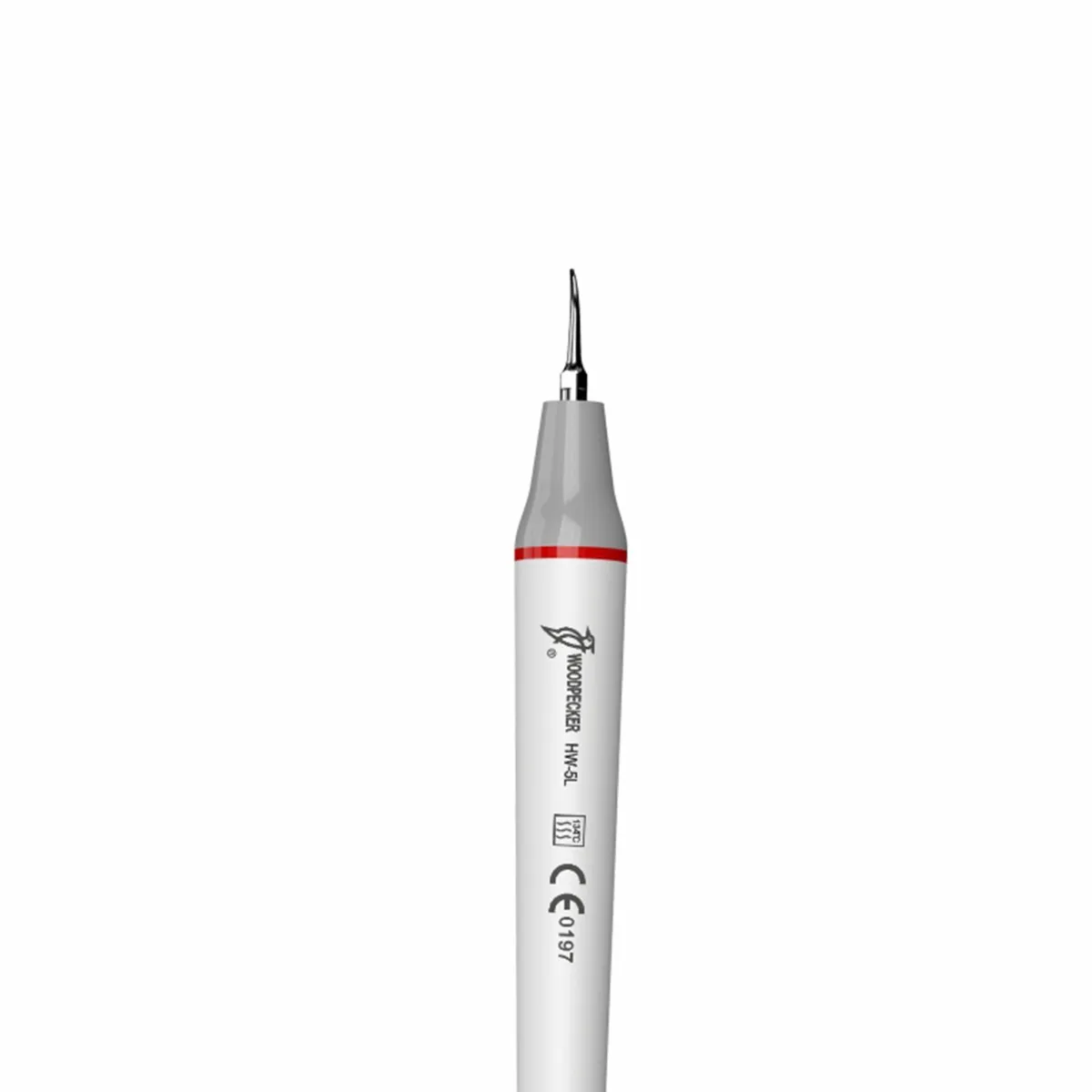

• Optical handpiece for easy handling and maneuverability.
• The inner water pipe allows the use of various clinical fluids with an auto-water supply.
• The detachable handpiece can be autoclaved for proper sterilization.
• Enhances perio and endo procedures.
• Cutting-edge design and functionality for exceptional performance.

Key Specifications

• Power Supply Input: 220-240V, 50Hz/60Hz, 150mA
• Main Unit Input: 24V, 50Hz/60Hz, L3A
• Primary Tip Vibration Excursion: ≤100μm
• Half-Excursion Force: <2N
• Output Tip Vibration Frequency: 28kHz+3kHz
• Output Power: 3W to 20W

Packaging

• 1 x Main unit
• 1 x Handpiece
• 1 x Footswitch
• 8 x Tip (G1 G4 G5 G6 E1 P1 P4D P3)
• 1 x Adapter
• 1 x Torque wrench
• 1 x Operation manual

Driection to Use

Preparation:

• Ensure that the power supply is properly connected to the scaler unit and is receiving the recommended voltage (220-240V, 50Hz/60Hz).
• Connect the handpiece and the scaling tip to the scaler unit securely.

Patient Preparation:

• Provide the patient with protective eyewear.
• Place a dental bib or protective covering over the patient's chest and neck to protect against any splatter.

Operation:

• Press the power button on the scaler unit to turn it on.
• Adjust the power level according to the treatment requirements. Use the intensity control knob to increase or decrease the power output.
• Ensure that the scaling tip is properly seated and firmly held to avoid any vibration or movement during operation.

Scaling Procedure:

• Begin the scaling procedure by gently placing the tip on the tooth surface, targeting the area to be treated.
• Use a moderate amount of pressure and move the tip in a controlled, sweeping motion along the tooth surface, following the contour of the teeth and gums.
• Pay close attention to the calculus or plaque deposits and aim to remove them effectively.
• Adjust the power level or select different tip options based on the patient's comfort and the nature of the deposit being treated.
• Rinse the treatment area frequently to remove debris and maintain visibility.
• Continue scaling until the desired result is achieved.

Post-Scaling Care:

• Once the scaling procedure is complete, switch off the scaler unit.
• Instruct the patient to rinse their mouth thoroughly with water to remove any remaining debris.
• Provide appropriate post-scaling instructions for oral hygiene maintenance, such as brushing and flossing techniques.

Warranty

The manufacturer/importer provides a 5-year warranty for the PCB (Power Circuit Board) starting from the date of the invoice, and a 12-month warranty covers all other parts of the product, excluding physical damage. Service and warranty matters for this product are directly managed by the manufacturer/importer.

Sudenkart is not responsible for replacing products; this responsibility falls on the manufacturer/importer. Both Sudenkart and the buyer agree that any warranties for the products are solely provided by the original manufacturer/importer. Claims for returns and replacements must be directed to the relevant manufacturer/importer, although Sudenkart may aid customers in requesting product servicing or replacements.

The buyer understands that once products are sold, they cannot be exchanged or returned unless the package seal or product remains intact and unaltered.
